Kolbus DA 270 (2010)

---

年份: 2010
最大尺寸: 67 x 39 cm (26 x 15 inch)

---

描述:

For fully automatic production of book covers, binders, posters, calendar backs or games.

YEAR: 2010
Counter: 16 659 257
Condition: As it is

Standard Equipment:
• Cardboard pre-stacking belt (1,700 mm) for automatic refilling of the magazines
(shingle and stack feeding)
• Sheet feeder for non-stop operation with stack magazine,
max. stack height 160 mm
• Fault monitoring during gluing
• Cover counter with roll-off table incl. table
• Total length: 4,500 mm (max. stack height 100 mm)
• Utility cylinder with grippers and interchangeable die plates
(5 pcs width 500 mm 5 pcs width 720 mm,
incl. 10 pcs rubber matrices)
• External glue application
• Rolling unit for wrinkle-free bonding of the covering material
with boards and spine insert
• Unit for padded covers
(up to max. 8 mm thickness with padding, compressed to 4 mm)
• Automatic cover counter
• Programmable automatic settings, motor-driven adjustments,
display of production faults
• Single-cover request for inspection purposes on the operator side
• Infinitely variable drive
• Safety standard according to EC directives and standards

Technical Data:
Open cover format:
• min.: 205 × 140 mm
• max.: 670 × 390 mm
Groove width:
• 4 – 15 mm
Spine width:
• 14 – 120 mm
Turn-in width (closed):
• 8 – 15 mm
Sheet size:
• Width: 223 – 708 mm
• Height: 130 – 428 mm
Boards:
• Thickness: 1 – 4 mm
• Width: 95 – 328 mm
• Height: 140 – 390 mm
Board spine:
• Thickness: 1 – 4 mm
• Width: 6 – 90 mm
Roll spine:
• Thickness: 0.3 – 0.6 mm
• Width: 6 – 90 mm
Mirroring:
• see glue processing
Mechanical output:
• up to 65 cycles/min
Net output depends on format, material, etc.

To be provided by customer:
• Compressed air requirement: 60 Nm³/h
• Operating pressure: 6 bar
• Compressed air supply: see document 0053M193

Machine dimensions:
• Length: 6,200 mm
• Width: 3,000 mm
• Height: 2,200 mm
Weight: 5,850 kg

Electrical equipment:
• 3 phases, 400 Volt / N / PE, 50 Hz

114 10

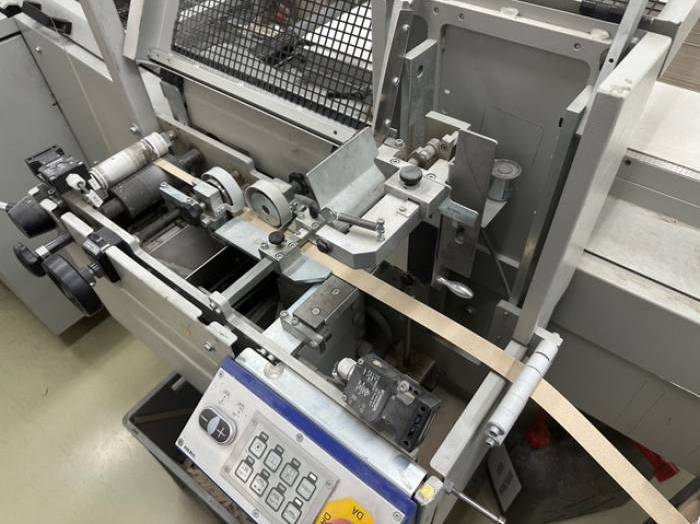

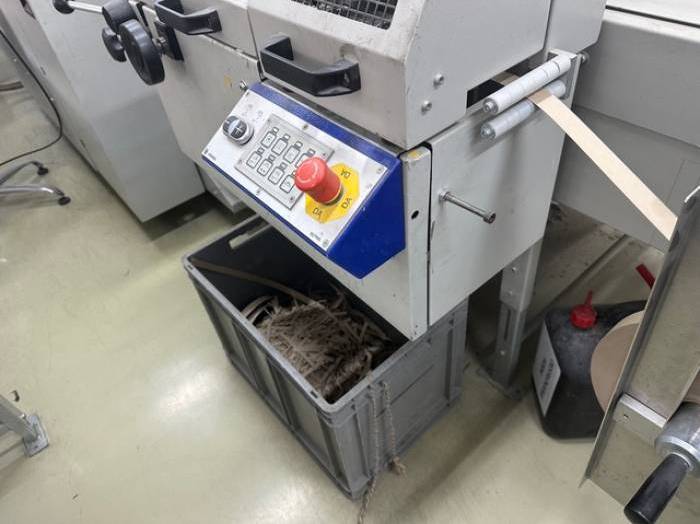

Roll spine unit

114 100
Unit for processing roll spine material
• Feeding of spine material for the back insert from roll material,
accommodation of 2 spine rolls, longitudinal and cross cutting unit
• Spine strip trimming unit
• Unit for automatic gluing and changeover of the roll spine during machine operation

114 110
Processing of hotmelt adhesive
• Extendable glue unit for hotmelt processing with glue processing device,
heated glue application rollers and doctor blade
• Viscosity control unit for automatic water supply to ensure consistent glue viscosity
• Unit for mirror gluing with hotmelt
Mirror format: 670 × 140 mm

114 12

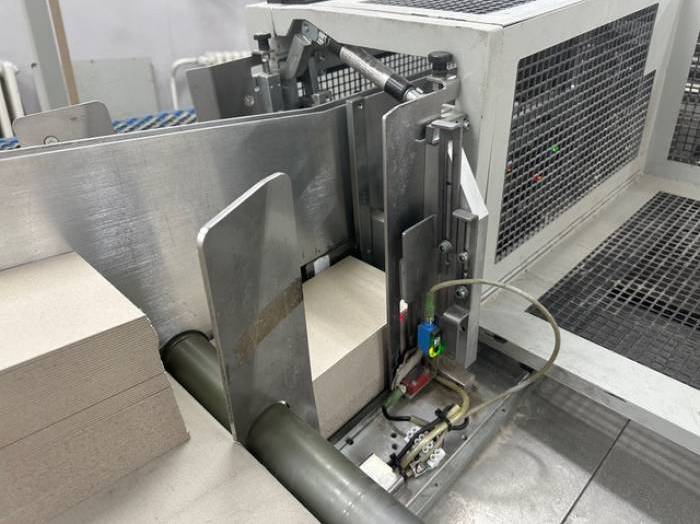

Board spine magazine

114 120
DA 270 with board spine magazine
(Boards: minimum height 130 mm)

114 230
Unit for hanging-on and casing-in in two working steps
• Width of center strip: 60 – 150 mm
• Width of sheet halves: min. 130 mm
• Distance between sheet halves: 40 – 150 mm
• Overlap of board / center strip: min. 15 mm

114 240
Small format unit
Open cover format:
• min.: 154 × 100 mm
• (one-piece cover: min. 140 × 100 mm)
Sheet:
• Width: min. 170 mm
• Height: min. 130 mm (mirroring)
Boards:
• Width: min. 70 mm
• Height: min. 100 mm

114 245
Large format unit (height)
Open cover format:
• max.: 670 × 405 mm
Sheet height:
• max.: 435 mm


114 247
Large format unit (width)
Open cover format:
• max.: 678 × 390 mm
Sheet width:
• max.: 718 mm

114 260
Corner trimming device (manual operation)
(for installation in tool cabinet position 114 270)

114 275
Adapter for matrix preparation
(device for preparation of matrices outside the machine)

114 375
Unit for processing asymmetric covers and sheets
Technical conditions see documents 12277033 and 12276003
114 395
Unit for processing thin boards
(for machines without board cutting unit)
Technical conditions see document 00264548
Open cover format:
• min.: 215 × 140 mm
• max.: 580 × 305 mm
Boards / width:
• min.: 100 mm
Board stack / stack height:
• max.: 40 – 100 mm
Mechanical output:
• up to 40 cycles/min
Net output depends on format, material, etc.

Note:
Execution according to sample material

114 6
Optional equipment for viscosity control unit
(only usable in combination with hotmelt adhesive)
When placing the order, one of the following versions must be specified:

114 600
Viscosity control unit
with pump and water tank / for manual filling

999 998
Change parts for round covers

---

设备所在地: Europe Central

---

---

交货期: Immediately

---

---

---

---

---
