PD Ref: 140631
Dealer Ref.# 3102
年份: 2019最大尺寸: 33 x 21 cm (12 x 8 inch)

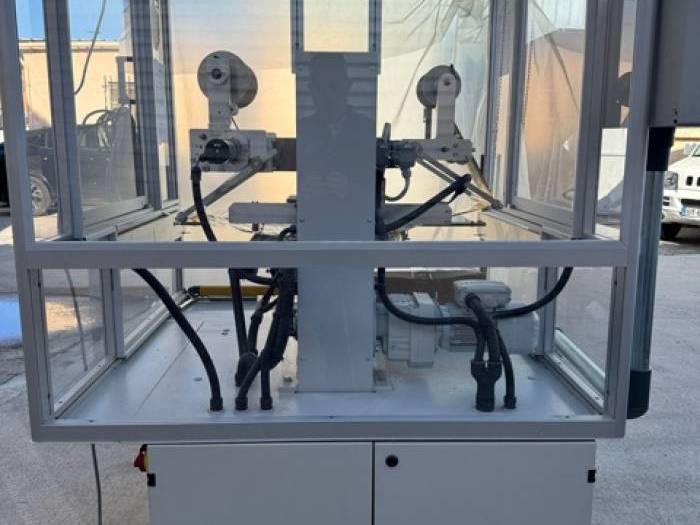

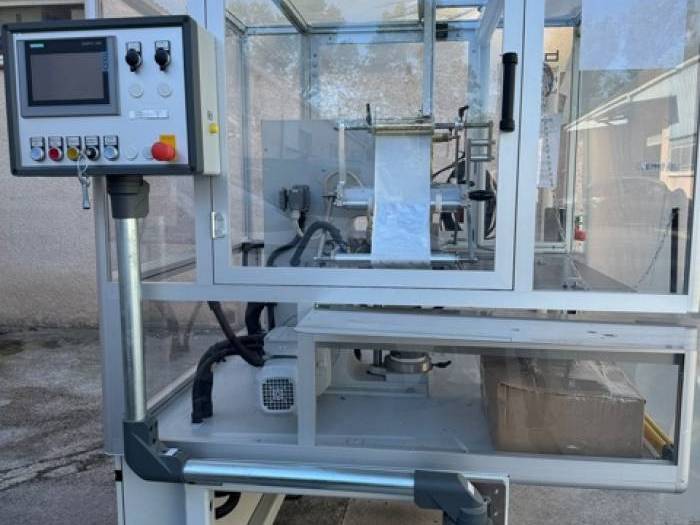

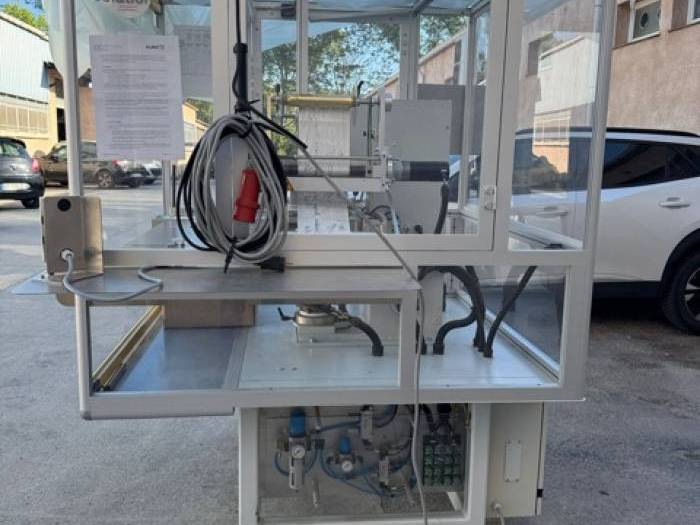

Important: Hot stamping press

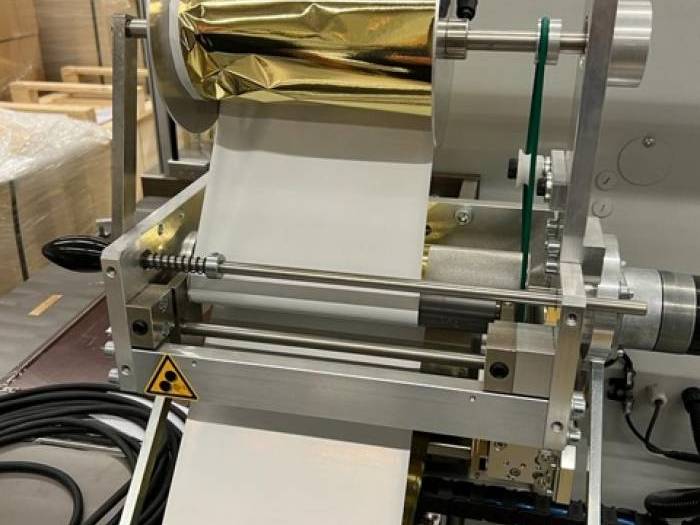

Stamping pressure : 40 kN Stamping area : 210x330 mm Stamping die holding plate : with dove-tail guiding Stroke of plunger : 28 mm Daylight (adjustment of height) : 0-180 mm Throat (middle of stamping plate to bow) : 190 mm Foil feeding system : motor-driven, 1-fold running from the left to the right side with foil re-winding device Working table : sliding automatically in and out with table lock pneumatic, 400 mm x 450 mm PLC : Siemens S 7-1500 with TP 700 color Safety device : in CE-execution with safety light curtains in front Color of the machine : light grey RAL 7035 Voltage: 3 x 400 VAC (L1/L2/L3/N/PE), 50 Hz. Pneumatic access : oil and water free compressed air, 6bar
设备所在地: Europe Western
交货期: Immediately
Phone: + 33 492 020 808 View Dealers Machines list
Send Email
Save
Or Call: + 33 492 020 808 Solution Graphique France, France
