Nagel Numnak S (2009)

Other Book其它书本 Machine

当前状况: In stock

Last updated: 24-08-2026 | Viewed: 84 times - Enquiry's: 1

PD Ref: 143940

Dealer Ref.# 4053

年份: 2009
最大尺寸: 1 x 1 cm (0 x 0 inch)

Latest Enquiry for this machine was from Kenya.

描述:

Year: 2009
Condition: very good
Counter: N/A
Technical specification:

Width (mm) 780
Height (mm) 1050
Weight (kg) 162

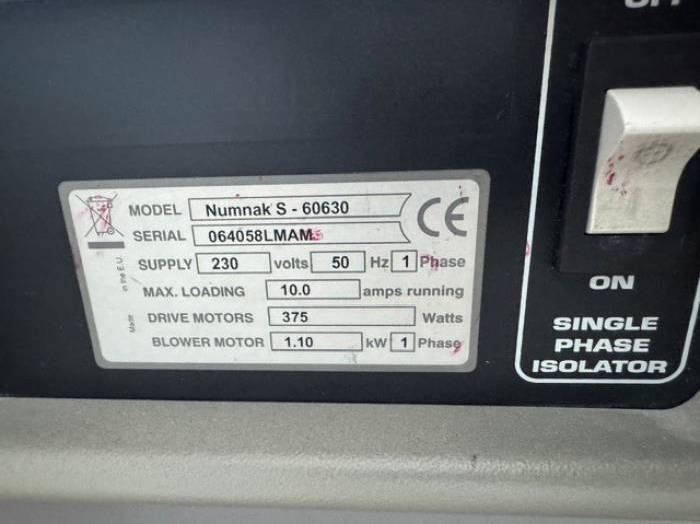

Power requirements 230 V / 50 Hz
Maximum output (cycles per hour)
1 – 4 numbering boxes 9

4 – 6 numbering boxes 5

7 – 8 numbering boxes 4

Maximum number of numbering boxes 8
Max. sheet size (mm) 460 x 460
Min. sheet size (mm) 210 x 125
Carbonless sets
Maximum 7 sheets

Minimum (gsm) 45

Max. spacing of numbering boxes on the same collar
Parallel 365 mm

Convex 354 mm

Min. spacing of numbering boxes on the same collar
Parallel (mm) 50

Convex (mm) 73.50

Continuous reloading ✓
Simultaneous perforating, creasing or slitting ✓
Oscillating inking roller ✓
Fine adjustment during operation ✓
Infinitely variable speed ✓

Configuration:

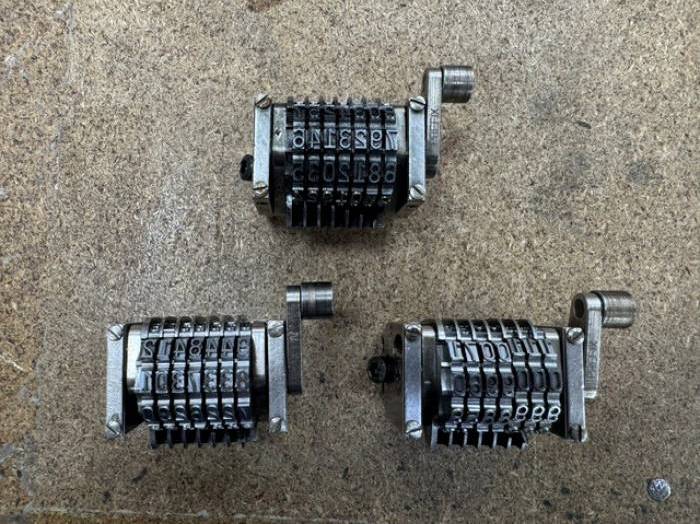

4 counters (7 digits)

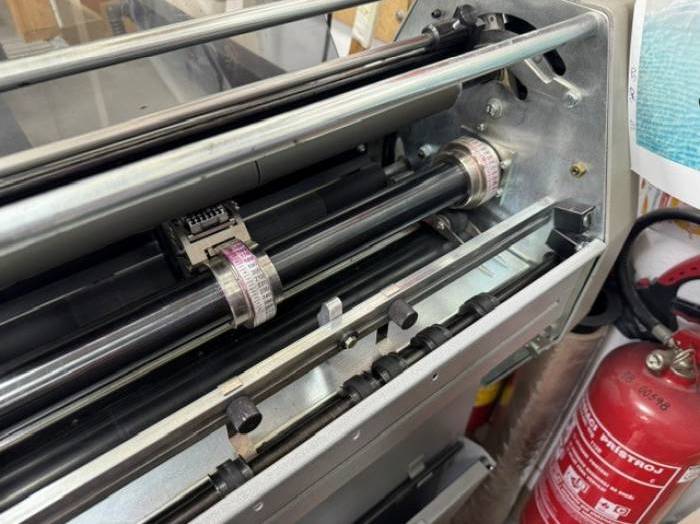

The Nummak S can process up to 9,000 sheets or sets per hour. The speed is infinitely variable. The rotary principle permits uninterrupted printing, which saves time and delivers better results.

The sheet size can be chosen freely up to 460 mm x 460 mm. The number can be placed anywhere on the sheet or on the perforation.

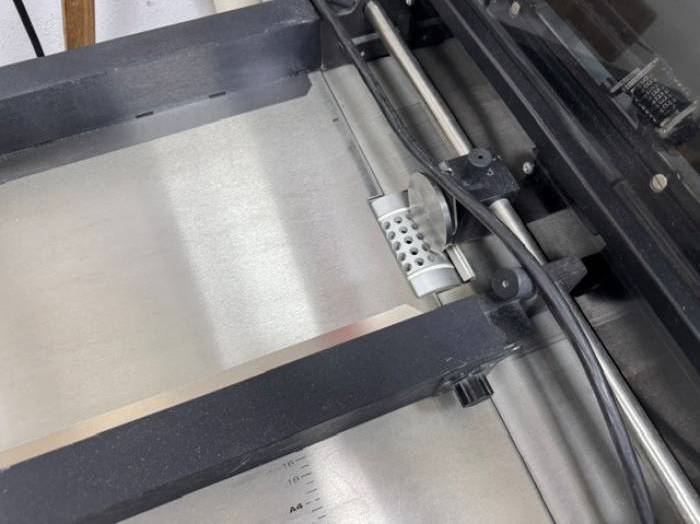

The powerful suction feeder can process a wide range of materials. Sets glued at the top edge can also be fed with the open edge first for simultaneous perforation parallel to the glued edge. Even carbonless sets of up to 7 sheets are no problem for the Nummak S.

The oscillating inking roller is a standard feature and ensures a uniform ink application and permits use of different colours. Even if several numbering boxes are used, inking remains absolutely accurate.

Since the sheets are fed from the bottom of the stack, additional sheets can be loaded “on the run”. All parts are easily and quickly accessible, and set-up and cleaning is done in mere moments. A fine adjustment of the machine can be made during operation.

Numbering, perforating, creasing and slitting can be accomplished in one pass through the machine and without the sheets stopping.
