Horizon VAC-100m (2004)

配页机 Machine

当前状况: In production

Last updated: 24-08-2026 | Viewed: 114 times - Enquiry's: 1

PD Ref: 143949

Dealer Ref.# 23291

年份: 2004
最大尺寸: 50 x 35 cm (19 x 13 inch)

Latest Enquiry for this machine was from Bulgaria.

Important: Good

描述:

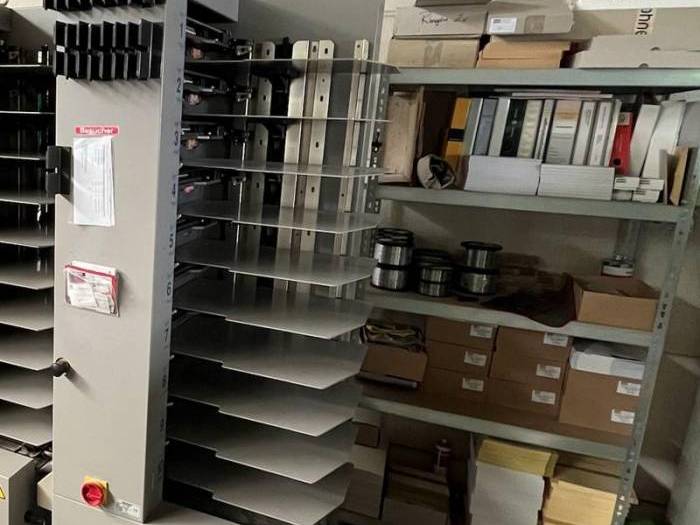

Horizon VAC-100m Air-Suction Collator Tower

The VAC-100m is the ideal solution for print shops looking to expand their production capacity without investing in completely new systems. Its easy integration with the VAC-100a tower and high reliability make it a valuable addition to your production line.

Key Features:

Cost-efficiency:
The VAC-100m is a cost-effective expansion solution as it operates without its own display and control unit. This reduces acquisition costs and allows you to expand existing systems efficiently.

Expandable Capacity:
With the ability to connect up to 5 VAC-100m towers to one VAC-100a tower, you can flexibly expand your collating capacity to up to 60 stations. This enables efficient handling of large jobs and a significant increase in your production capacity.

Reliability:
With error prevention features such as misfeed, double-feed, and jam control, the VAC-100m ensures that your production runs smoothly and without interruptions.

Specifications:
- Technology: Touch Work via VAC-100a
- Number of stations: 10 per tower
- Expandability: Up to 6 towers 60 stations
- Error prevention: Misfeed, double-feed, and jam control
- Job memory: 9 storage slots for repeat orders
- Programs: Double cycle non-stop operation , sheet insertion single and double , booklet making program, block program, selective collating
- Sheet size: Max. 500x350 mm; Min. 148x120 mm
- Paper weight: 40-250 g/m²
- Loading capacity: 55 mm per station
- Performance: Up to 9,500 sets/h
- Power: 230V; 50/60Hz - 1.86 kW
- Dimensions: 842x652x1,961 mm
- Weight: 310 kg

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
