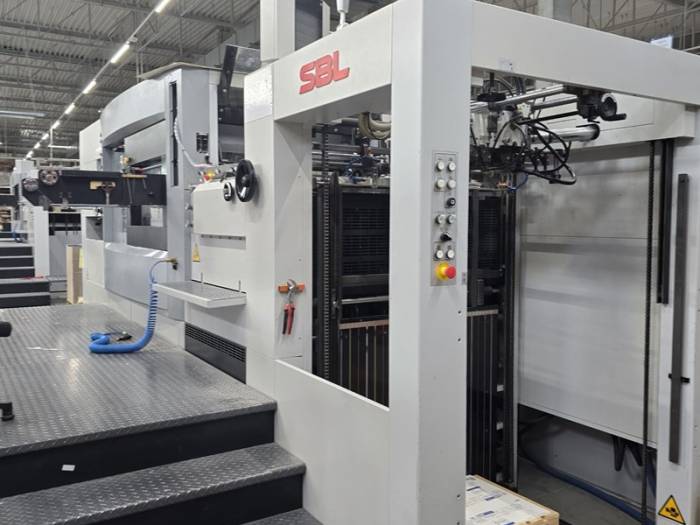

SBL 1060 SE (2018)

---

年份: 2018
最大尺寸: 106 x 76 cm (41 x 29 inch)

---

Important: Very Good

描述:

Specification - Maximum sheet size

1060 × 760 mm, Minimum sheet size 400 × 350 mm, Maximum die-cutting size, 1045 × 745 mm, Maximum die-cutting force 300 tonnes, Maximum speed 8,000 sheets/hour. Registration accuracy ±0.075 mm, Paper and cardboard grammage80–1,400 g/m²
Material thickness 0.1–2 mm
Maximum corrugated board thickness 4 mm
Total power requirement - 20 kVA
Machine dimensions L × W × H 5885 × 2204 × 2133 mm, Machine weight Approx. 16.5 tonnes, Feeder pile height including pallet 950 mm, Delivery pile height 950 mm, Minimum gripper margin 3 mm, Machine Features Automatic sheet feeder, Die-cutting and creasing, Waste stripping section, Automatic registration control, Pneumatic die frame locking, Electronic die-cutting pressure adjustment, Optional servo-driven, Optional non-stop operation system.

---

设备所在地: Europe Western

---

---

交货期: 10-2026

---

---

---

---

---
