Master Bag 300 X Square Bottom (2025)

---

Alter: 2025
Max.Größe: 105 x 0 cm (41 x 0 inch)

---

Important:

Beschreibung:

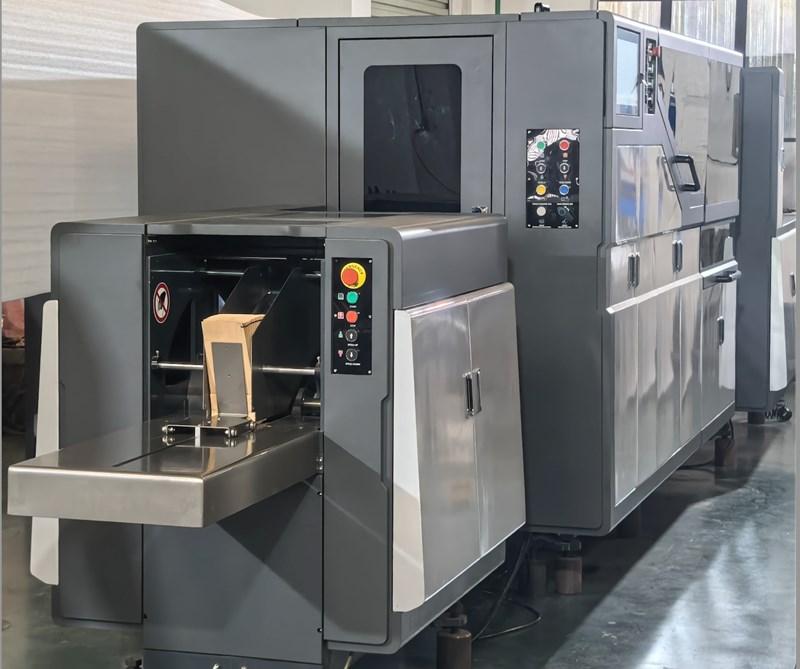

Master Bag 300X – Square Bottom Paper Bag Machine 2025 Model

Overview
The Master Bag 300X is a state-of-the-art, roll-fed machine designed for the efficient production of square bottom paper bags without handles. Utilizing continuous rolls of paper, this machine is ideal for high-volume manufacturing, perfectly suited to the needs of the food industry, retail packaging, and paper bag manufacturers.

Its advanced automation seamlessly integrates paper feeding, tube forming, cutting, and bottom forming into a continuous online process, maximizing productivity while significantly reducing labor costs.

Precision and Efficiency
Equipped with a photoelectric detector, the Master Bag 300X maintains precise control over cutting length, ensuring each bag is produced with high accuracy. Its ability to handle very thin paper at fast speeds makes it optimal for industries demanding quick turnaround without compromising quality.

Advanced Control System
The machine is powered by a sophisticated Japanese YASKAWA electronic control system and servo motors. This ensures stable, reliable operation with minimal maintenance, delivering consistently high-quality bags and boosting production efficiency for printing plants and bag manufacturers.

Key Features Units
Paper Material Feeding and Conveyance:
Roll-fed with automatic lifting function for easy paper roll changes
Equipped with unwind air shaft and hydraulic cylinder lifting control
Automatic tension control system ensures smooth, consistent feeding
Paper Bag Forming:
Precision gluing of paper edges and tube forming
Four-cornered square bottom forming with accurate glue application
Produces bags ready for collection or further processing
Finished Bag Collection:
Presses and conveys finished bags for smooth handling
Integrated automatic counting system for inventory and packaging management
Technical Specifications
Specification Details
Bag Dimensions L x W x Bottom Width Length: 280–530 mm Width: 150–330 mm Bottom Width: 70–180 mm
Paper Thickness Range 60–150 gsm
Maximum Production Speed Up to 200 bags per minute
Paper Roll Width 470–1050 mm
Paper Roll Diameter Up to 1500 mm
Machine Power 38V, 8 kW
Machine Weight 8,000 kg
Machine Dimensions LxWxH 9.5 x 2.6 x 1.9 meters
Why Choose the Master Bag 300X
High-speed production for large-scale bag manufacturing
Precision and reliability with advanced sensors and servo control
Efficient roll-fed system reduces downtime during paper roll changes
Consistent bag quality suitable for food-grade and retail packaging
Supports sustainability goals by enabling eco-friendly kraft paper bag production
Ideal For:
Flour mills and food packaging companies
Retail packaging manufacturers
Paper bag producers aiming to expand capacity
Businesses committed to replacing plastic with sustainable alternatives
Contact Us
To learn more, request a detailed brochure, or arrange a live demo, please contact: WhatsApp 3160074407 or 31 6 42388004
info@gutenbergmachines.com
Visit: www.gutenbergmachines.com

---

Lage: Europe Western

---

---

Erhältlich: Immediately

---

---

---

---

---
