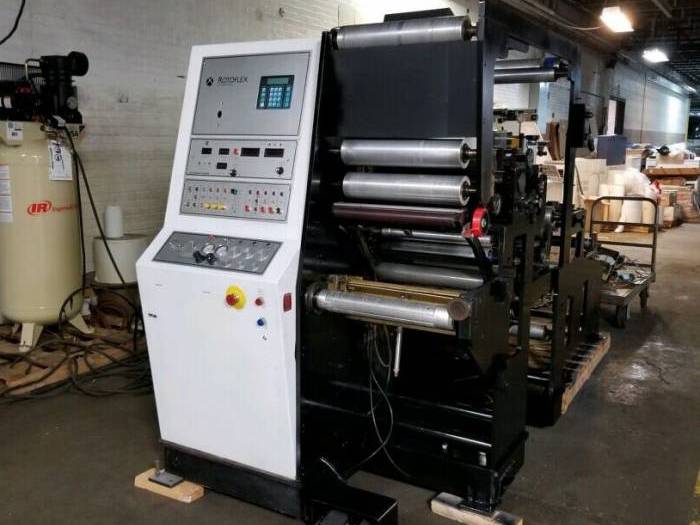

Rotoflex VLI 400 (1998)

---

Age: 1998
Max.Size: 44 x 0 cm (17 x 0 inch)

---

Technical Description:

ROTOFLEX VLI 400

Exceptional performance saves time and cost at every step

The Rotoflex VLI is a premier inspection, slitting and rewind system with expanded capabilities for more advanced applications and high-speed production. It is ideal for film, film packaging and other tension-sensitive materials.
The VLI can be configured to meet a full range of applications and substrates.



 Year: 1998
 Webwidth: 440mm / 17”

Equipment:

 Max unwind: 711mm
 Max. rewind: 610mm
 Max. speed: 610m/min
 Max Unwind Diameter 762mm
 Unwind shaft: 76mm
 Rewind shaft: 76mm
 -Shearing knife unit with 6 knives
 Adjustable splice table on the unwinding unit
 Second adjustable splice table combined with web edge control
 Counter for counting individual labels and linear metres
 Preset counter and automatic deceleration
 Totaliser
 Inner/outer winding
 Hardened deflection rollers with web separating discs
 Web clamp before rewinding
 Stroboscope
 Lateral foot pedal for jog mode
 Automatic stop at end of reel
 Digital splice and lug detection - never used


Technical- and optical condition:
Technical: 9/10 (checked and in excellent running condition)
Optical: 9/10 (cleaned and can go to end-user directly)

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
