Champion CHBM 600 Eco Single Tray Burger Box Making Ma (2016)

---

Age: 2016
Max.Size: 35 x 35 cm (13 x 13 inch)

---

Technical Description:

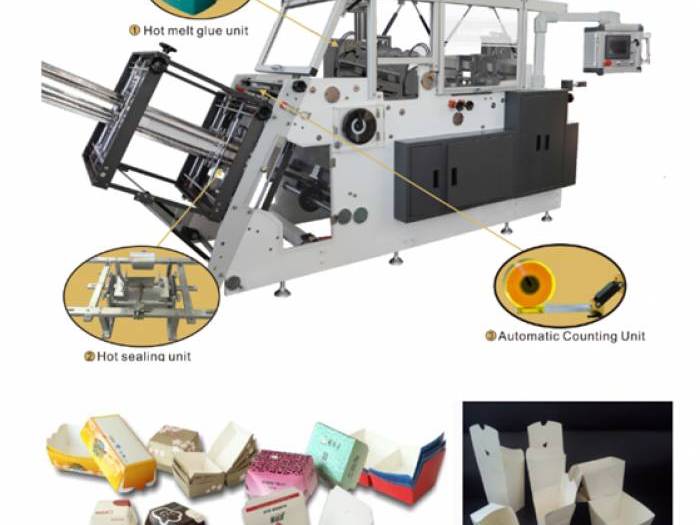

Champion CHBM 600 Eco Single Tray Burger Box Making Machine

1. This new generation of three-dimensional moulding box machine features: with stable quality, high efficiency, speed up to 160pcs/min.
2. In the same machine, you only need to change different moulds to create different specifications of the boxes, hamburger boxes, boat shaped box, food packing box, carton products such as fried chicken box.
3. It adopts the hot air device, can achieve high efficiency, high accuracy and make PE-coated paper box.
4. This machine is mostly used high quality seal bearing, long service life, good stability.
5. The machine uses the PLC intelligent control system, PLC control with automatic stop.
6. The main mould are manufactured with pine which is economical for mould replacement.
7. Can automatically collect deposits, inventory of finished goods.
8. High quality Synchronous belt makes no error when it is running.
Machine Offered:
2016 Champion CHBM 600 Eco Single Tray Burger Box Making Machine.
Technical Specification
Paper Size : 150 x 150-500 x 380mm
Raw Material : Whiteboard and other similar PE coated paper (200-600g/m2)
Max thickness : 1.5mm
Rated Productivity : 30-160 pcs/minute
Unfold paper width : max 550mm
Motor Power : 4KW
Total Weight : 1800 Kg
Package Size : 3500 x 1200 x 1200mm

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
