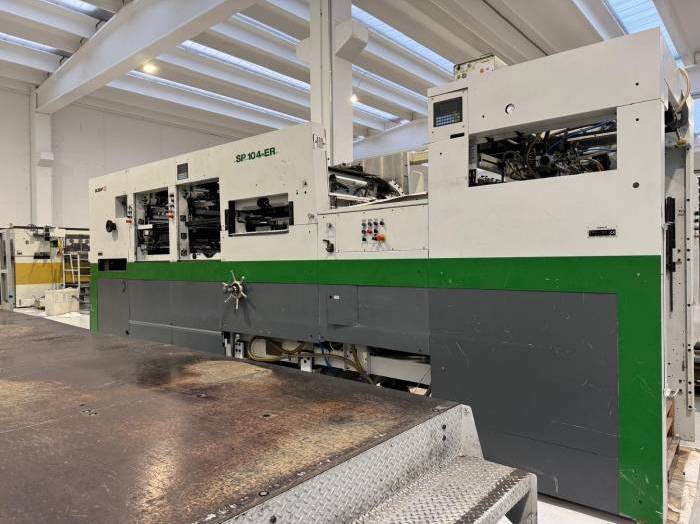

Bobst SP 104 ER (2001)

Die Cutting Machine

Current State: In production

Last update: 14-02-2025 | Viewed: 281 times - Enquiry's: 8

PD Ref: 127951

Dealer Ref.# 24036440

Age: 2001
Max.Size: 104 x 74 cm (40 x 29 inch)

Technical Description:

Platform with safety barrier, Centerline for job quick-change, Electronic double sheet control, Adjustable centering at the stripping and at the delivery, Air conditioning for the electrical cabinet, Gripper bars, Bobst-Electronic machine operationg system C.U.B.E. : Control Unit Bobst Electronic , Main motor with frequency variator, M-5 CHASE CHANGER : allows the change and preparation of the chase and the die cutting corresponding to the next job Includes an increase in the surface of the platform , B-41 ADDITIONAL INTERFACE CUBE . It includes an additional screen and keyboard located on the feeder, operator side, which facilitate the management of the machine., B-1 ELEVATED MACHINE Machine elevated 415 mm, included elevation of the steps, Pile-tray with handle allowing manual lateral correction of the pile during production, Photocells for automatic cycle on feeder, Pile height control at the front edge thanks to a photoelectric cell, Pile rear guide OS and OOS sides , Adjustable lateral blowers with Centerline references, Suction unit with multiple adjusting, Safety system for lowering the pile try, C-17 AUTOMATIC SIDE CORRECTION OF THE PILE, C-4 NON-STOP FEEDER MANUAL DEVICE, C-8 VERTICAL POSITIONING OF THE SUCTION UNIT. Eliminates manual interventions to compensate for the flatness of the pile shape, Covered with an anti-static stainless steel plate, Synchronization of the sheet adjustable at the stop, allows to adapt the speed of the feeder with which of the platin, Imput on table feeder, 4 front lays, adjustable in pairs with front register control, Pull-lay operator side OS adjustable according to Centerline, with sheet control, Double sheet detector, Support plates at entry of platen station, Sheet-hold down device guiding the sheets to front lays , Upper frame with manual lifting device, Upper sheet transport equipment for paper, cardbord and corrugate cardboard to 4 mm thickness, Transport belt With lateral guidance and automatic tension system, D-1 PULL GUIDE OOS with device for sheet presence control. Pull adjustable with Centerline references, C-5 CONTROLLABLE SHEET ARRIVAL FOR PERFECT SYNCHRONIZATION OF SHEET ARRIVAL AND REDUCTION OF MACHINE STOPPAGES, D-2 PUSH GUIDE OS operator side , D-73 FEED BELT SLOW-DOWN DEVICE Ensures smooth arrival of sheets against the front registers, Grippers re-opening device, Die-cutting device without band of gripper grip, Equipment centering and locking, Locking of the chase against the upper beam, Measurement of the die-cutting force with strain gauge, Resocell: synthetic material supporting plate. Thickness 22.5 mm, 1 Upper chase with quick locking: fixed bottom E-3 Plate, thickness 2 mm and make-ready protection plate of syntetic material, 1 mm thickness, 1 Cutting plate E-4 , E-56 LOWERING DEVICE FOR THE CHAINS-GUIDE, E-3 1 UPPER CHASE WITH QUICK LOCKING: FIXED BOTTOM, E-5 COMPENSATION PLATE 4 mm thickness. it

Located: Europe Western

Current State: In production

Available: Immediately

Price: On Request
