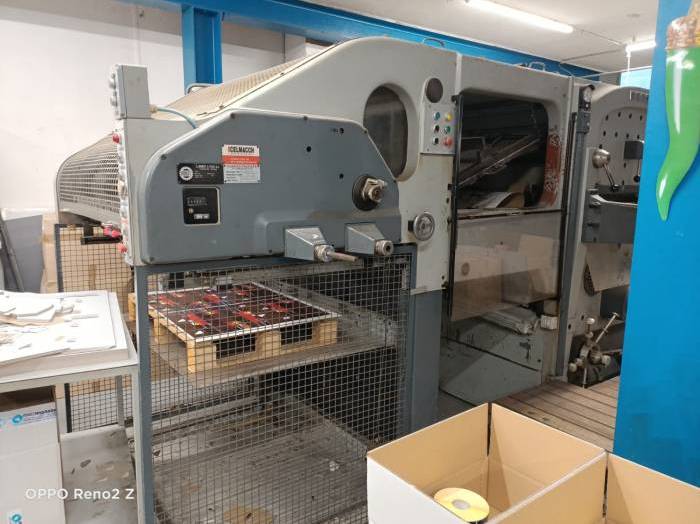

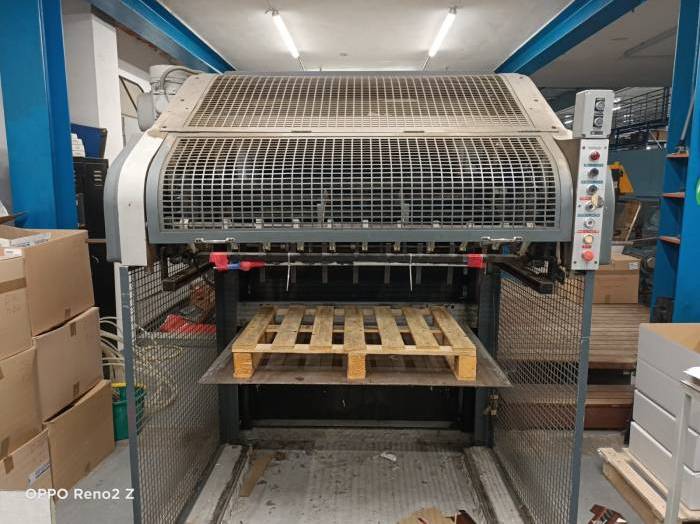

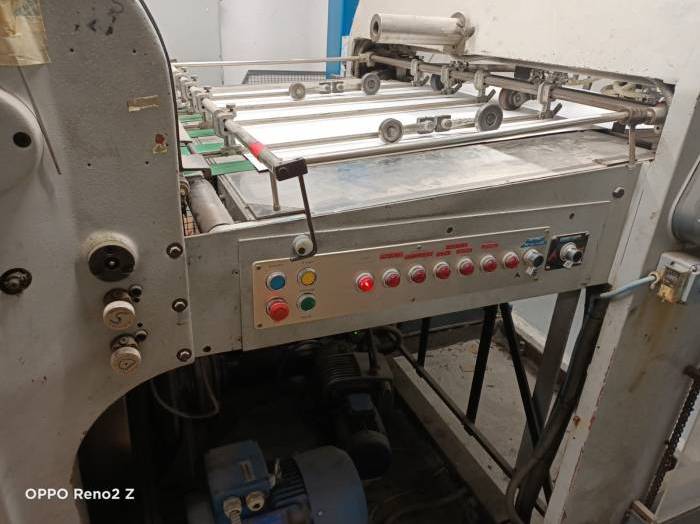

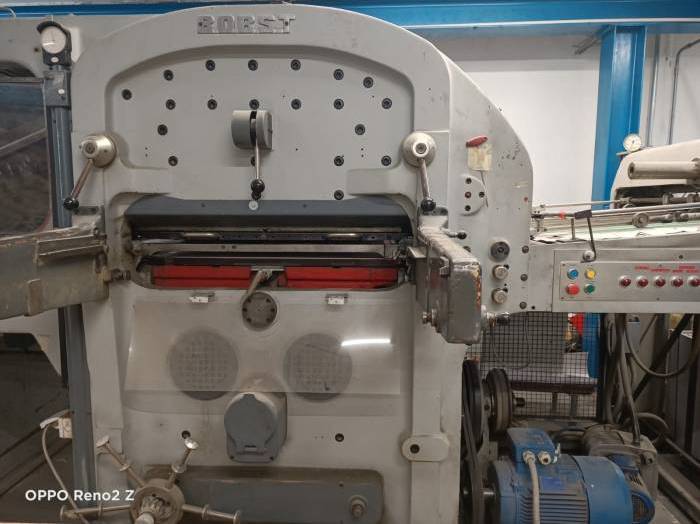

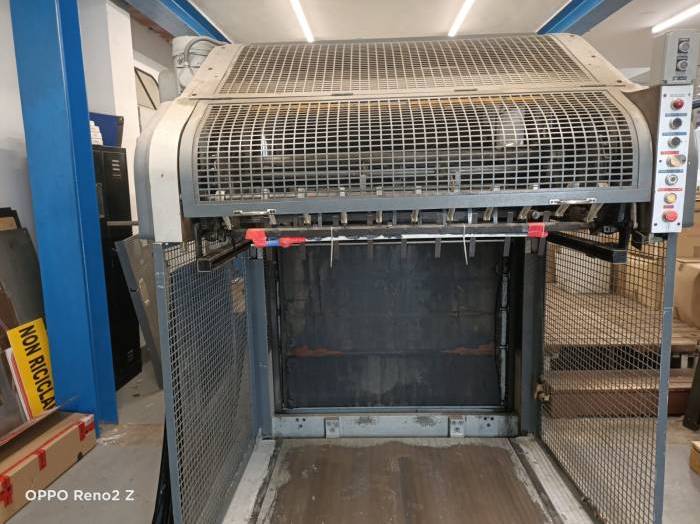

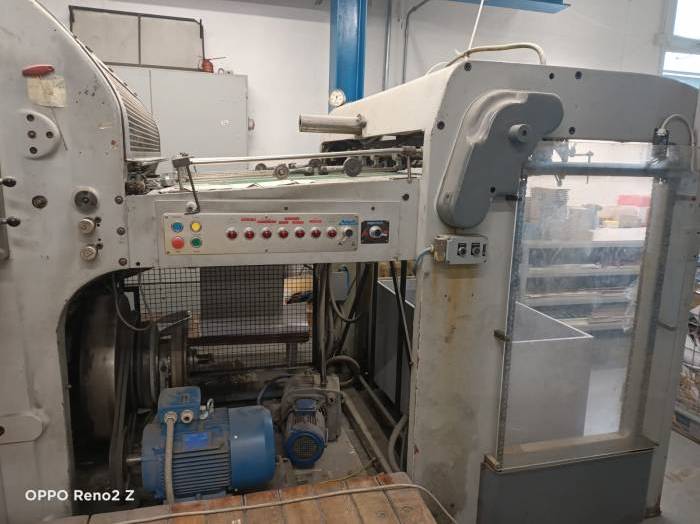

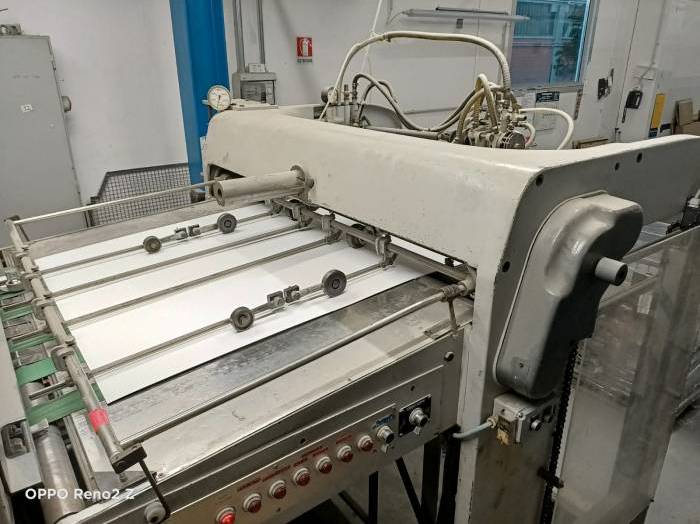

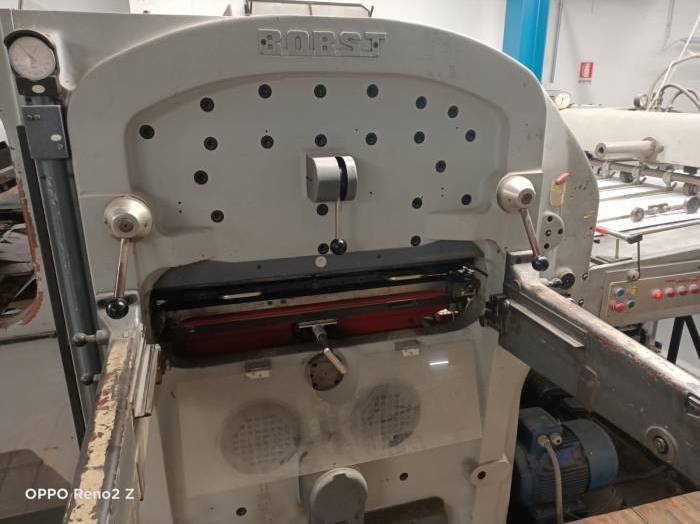

Bobst SP 1260 E (1963)

Die Cutting Machine

Current State: In production

Last update: 05-06-2025 | Viewed: 244 times - Enquiry's: 8

PD Ref: 131130

Age: 1963
Max.Size: 126 x 92 cm (49 x 36 inch)

Technical Description:

BOBST SP 1260 - E
YEAR 1963
REFURBISHED 1992
REFURBISHED 2015
Automatic Flat Bed Die Cutter
Size 920x1260 Mm
Technical Features:
Platen Pressure Max.500 Tons
Max Speed 5000 Sheets Per Hour
Max Sheet Size: 920 X 1260mm
Min Sheet Size: 350 X 500mm
Max Cutting Area Size: 900 X 1250mm
Paper, Minimum Weight 90 G/M2
Board,Maximum Thickness 1.5 Mm
E And B-Flute Corrugated 3 Mm
Setting Of Gripper Margin 10-18 Mm
Dimensions:
L. 7,70 Mt.
P. 4,30 Mt.
H. 2,42 Mt.
Power Requirement Kw 24 Circa
Weight 19.000 Kg. Circa
Accessories Included:
Designed For Cutting And Creasing Solid And Corrugated Board (E And B-Flute)
With An Adjustable Platen Force Of Up To 5 MN (500 Tons), Offers Excellent Cold Embossing Possibilities.
Equipped With A Waste Stripping Station.

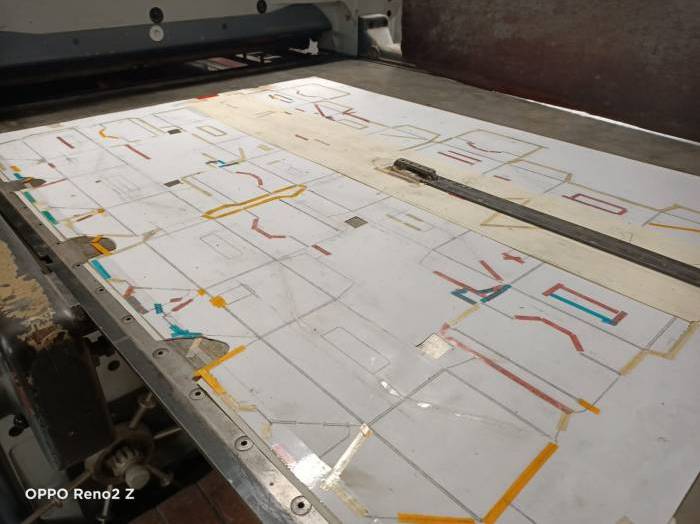

2 Cutting Chases

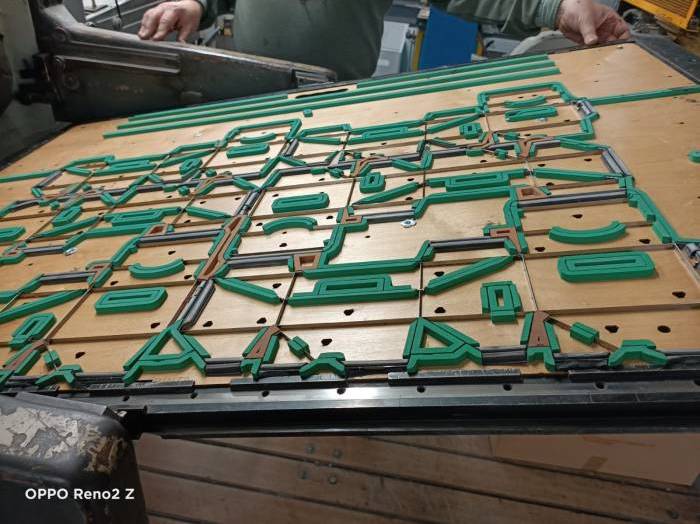

2 Stripping Frames
Tools, Documentations
Complete With All Standard Parts And Accessories
