Ech Will 1758.8 L (2005)

Sliter-Rewinders Machine

Current State: In production

Last update: 02-11-2025 | Viewed: 177 times - Enquiry's: 0

PD Ref: 135440

Dealer Ref.# 8260

Age: 2005
Max.Size: 175 x 0 cm (68 x 0 inch)

Important: WRAPPING LINE American size Quattro AND A4

Technical Description:

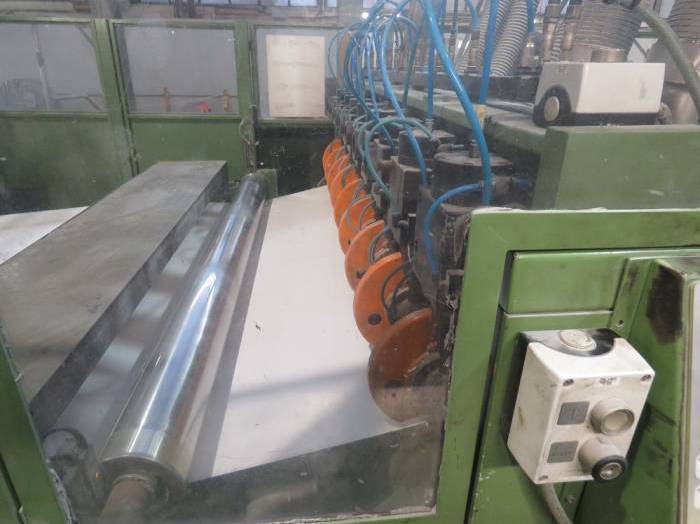

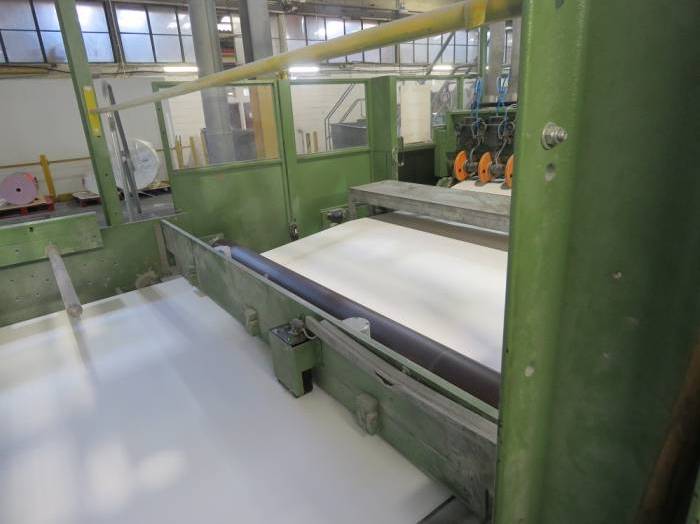

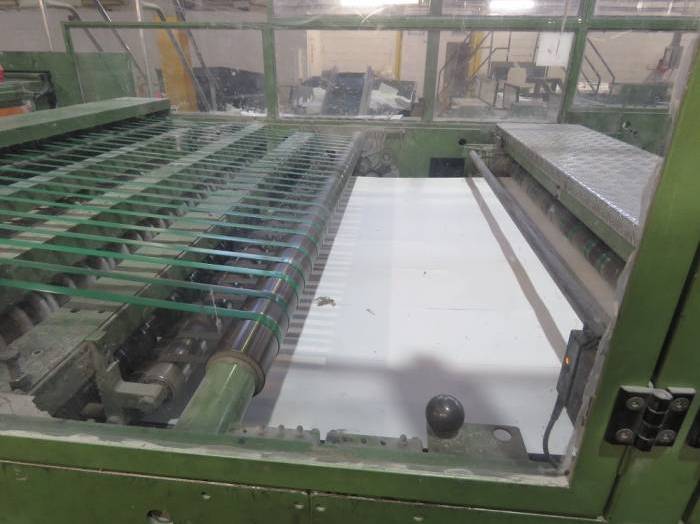

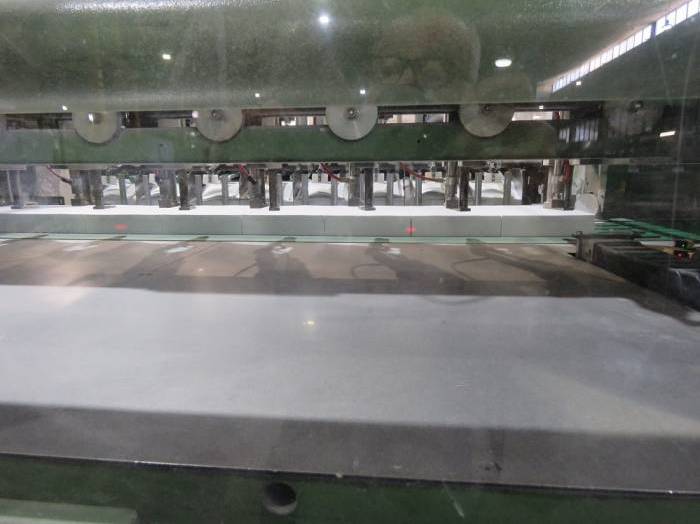

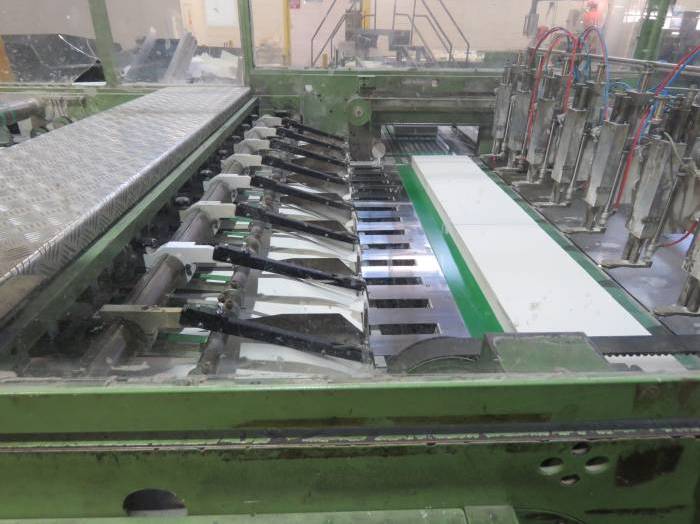

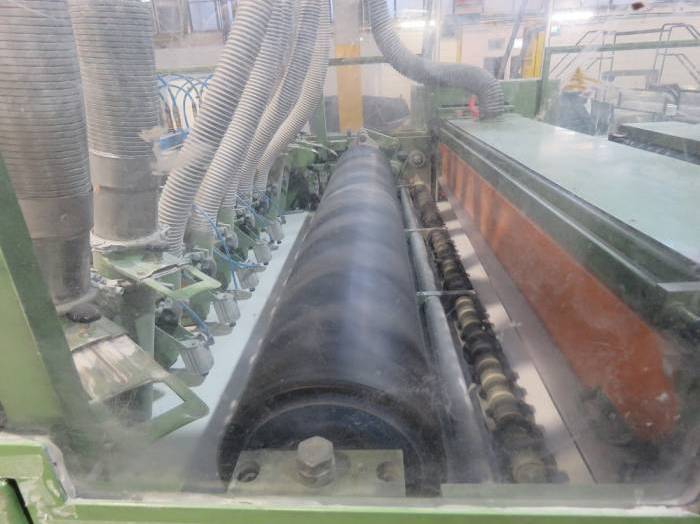

ECH WILL CUT-SIZE SHEETER- 8 POCKETS. TYPE 480 SLK 175.8-L. 2005.
REAM WRAPPING LINE American size Quattro AND A4
1.1. Paper qualities ( cut & wrapped) – copy / offset paper weight 70-90 g/m².
1.2. Size 8.5” X 11” long grain
17” X 11” short grain
A4 (210 X 297 mm ) long grain
1.3. Height of ream 48 – 63 mm.
1.4. Wrapping material
- inside / outside PE – Laminated Bleach Kraft paper 90 g/m².
- inside PE - Laminated Bleach Kraft paper 110 g/m².
- Clear Wrap with PP film.
- outside Polyester - Laminated Bleach Kraft paper 90 g/m².

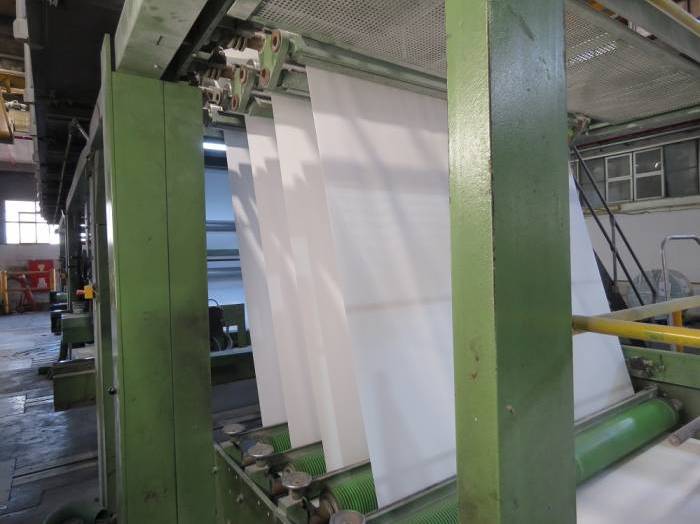

2. Will Cut-Size Sheeter- 8 pockets. Type 480 SLK 175.8-L. 2005.

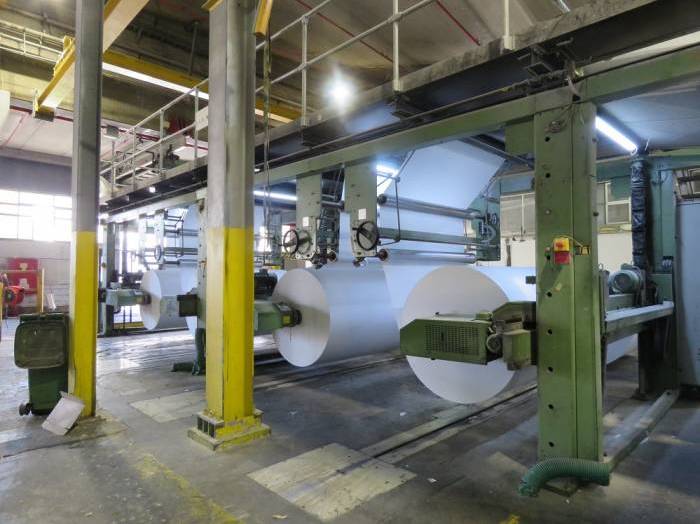

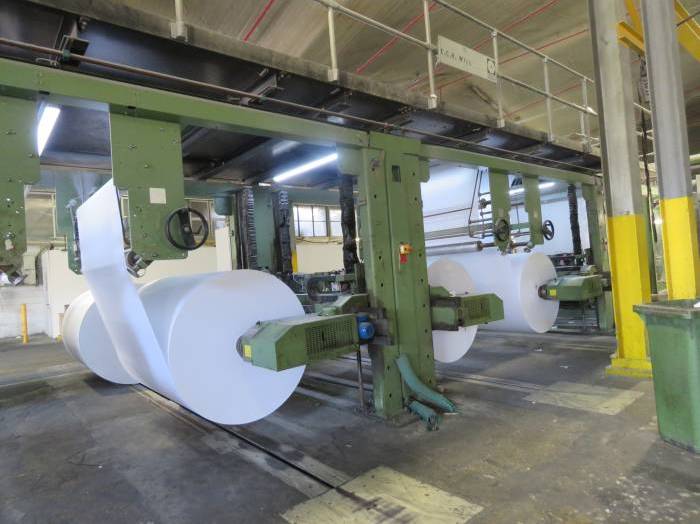

2.1. Number of unwinds – 4 pc.
2.2. Chuck diameter – 6".
2.3. Roll diameter – 1500 mm.
2.4. Working width – 1750 mm.
2.5. Production speed – 370 m/min.
2.6. Max package discharge:
-84 reams / min (8.5” X 11”– 500 sheets / ream )
-42 reams / min (17” X 11”– 500 sheets / ream )
-84 reams / min ( A4 – 500 sheets / ream )

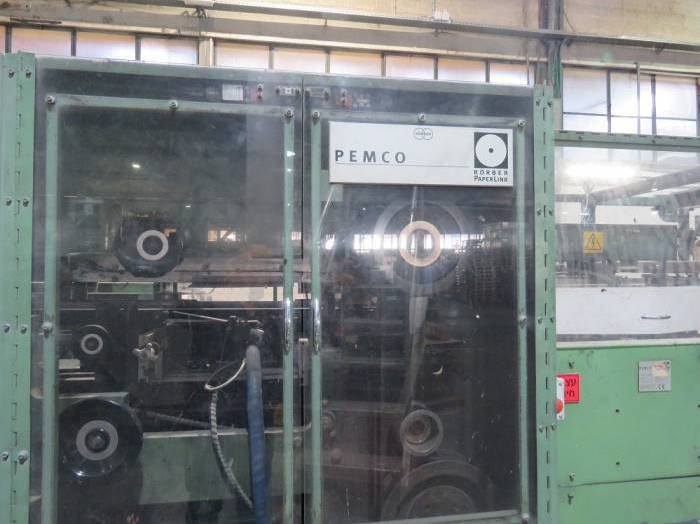

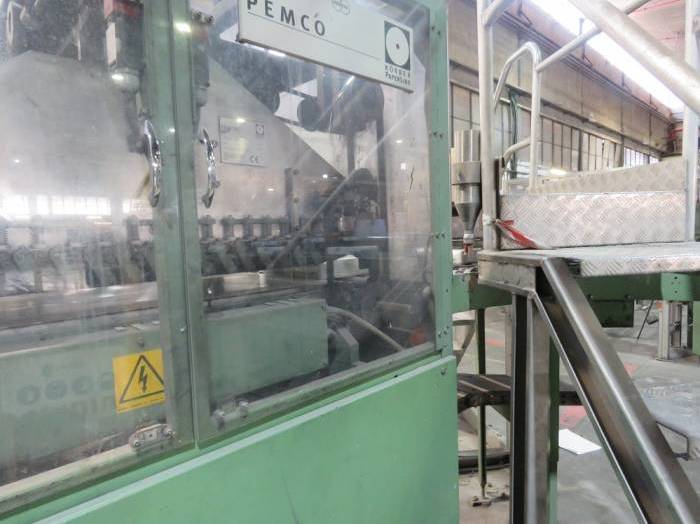

3. Ream wrapper Pemco Model 34 HSL. 2005.

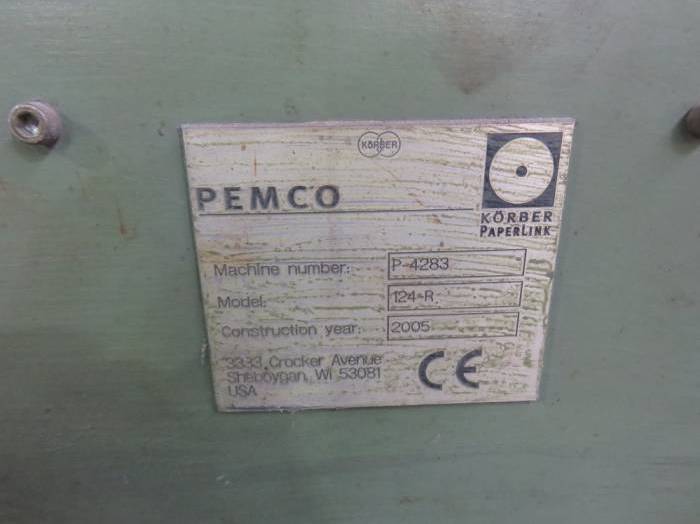

4. Ream inspection/rejection system Pemco Model 124. 2005.

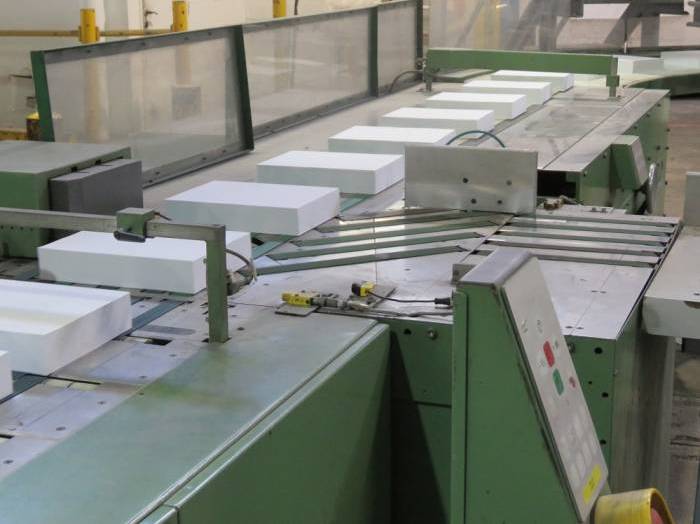

5. Ream stacker/accumulator. Lead engineering (local). 2017.
6. Case packer/lidder. Lead engineering (local). 2017.
6.1. Formation single and double stacks
- 10 reams / case – 8.5” X 11”
- 5 reams / case – 17” X 11”
- 5 reams / case – A4
6.2. Carton design
- E.Flut white top.
- Carton with lid board and side flap at the narrow side
in case of 5 reams and 10 reams in one carton.
7. Hot-melt group type NORDSON.
8. Case strapping machines.
9. Connection Conveyors. Pemco Local.
10. Palletizer.
REF 8260
