PD Ref: 137960
Dealer Ref.# 11930
Age: 2023Max.Size: 66 x 0 cm (25 x 0 inch)
Important: Very Good

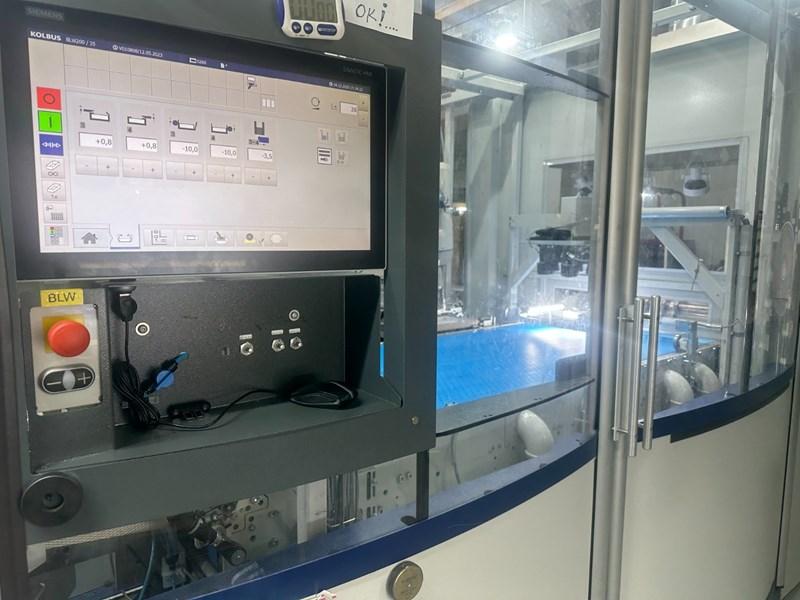

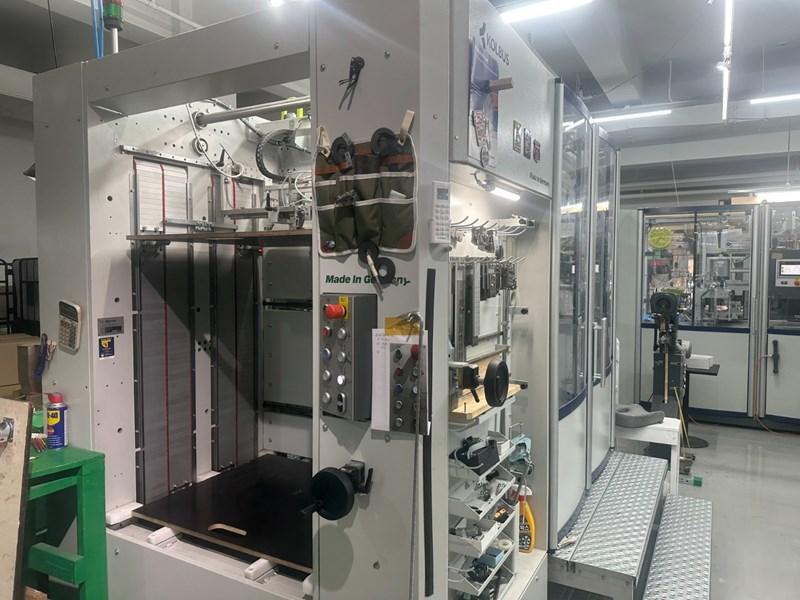

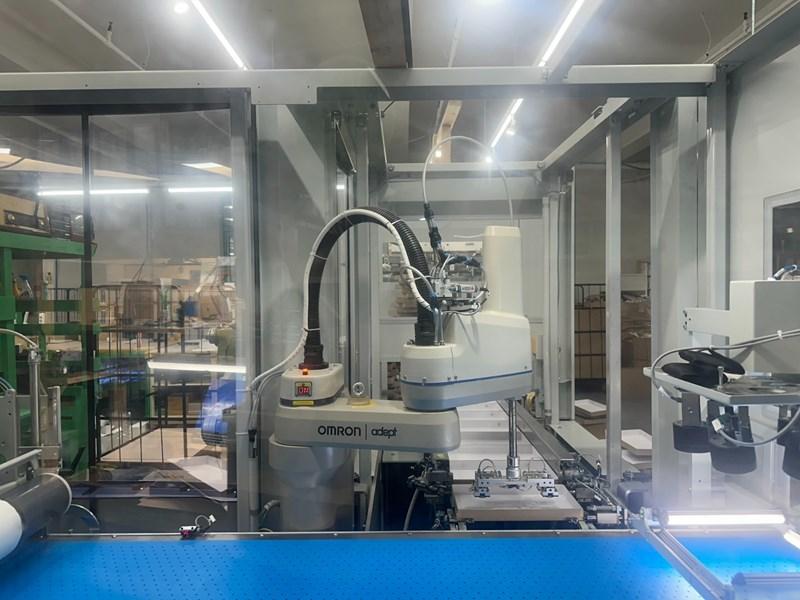

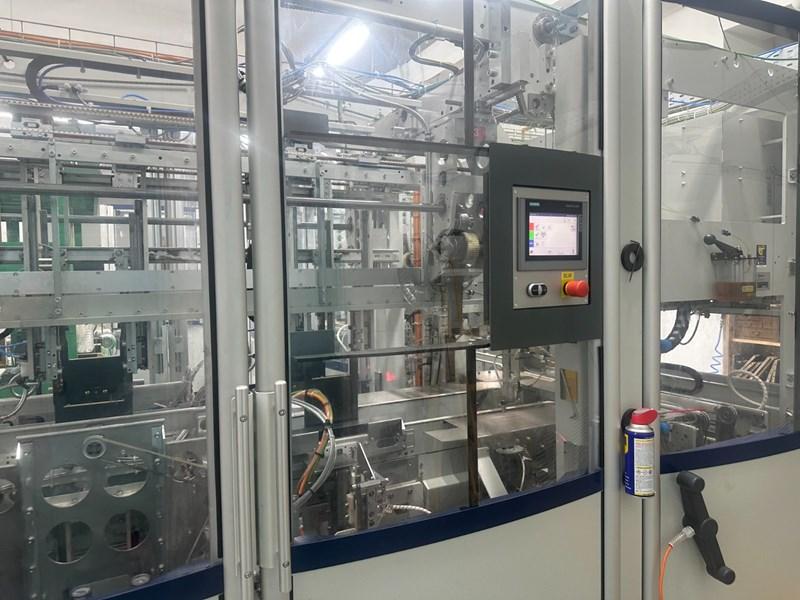

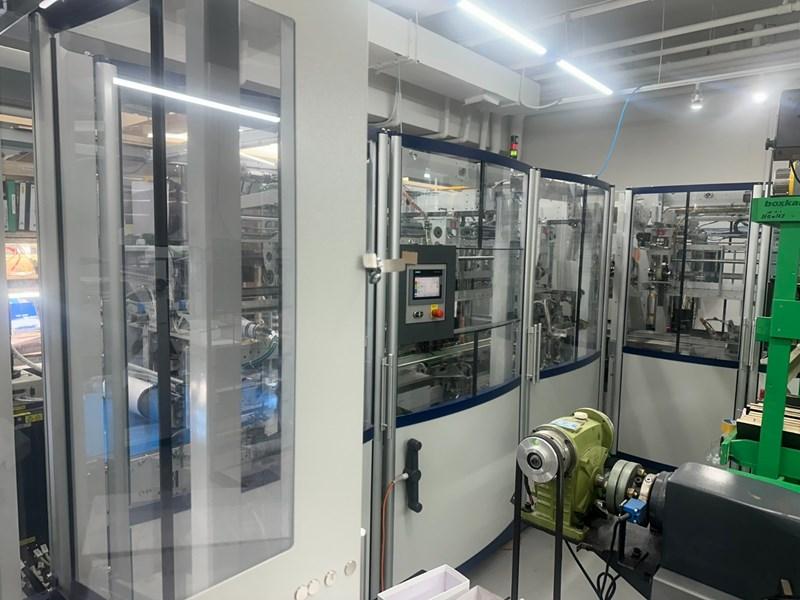

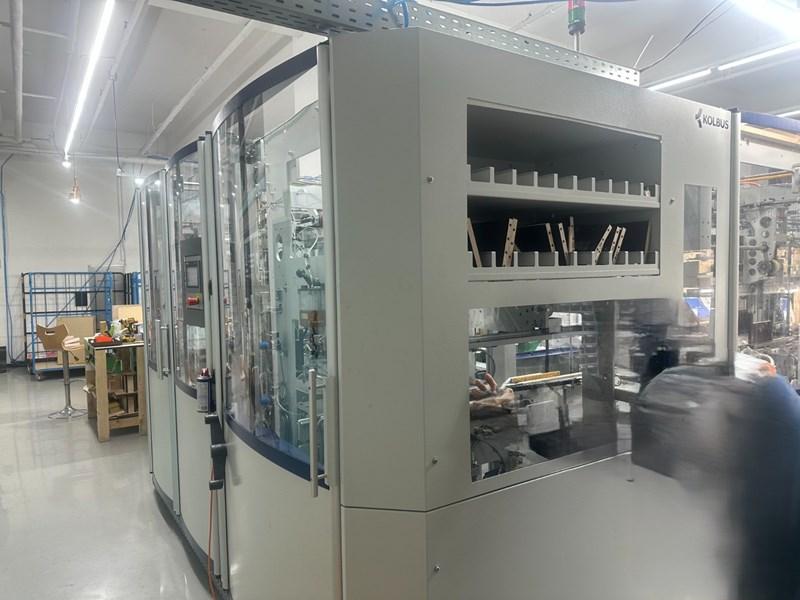

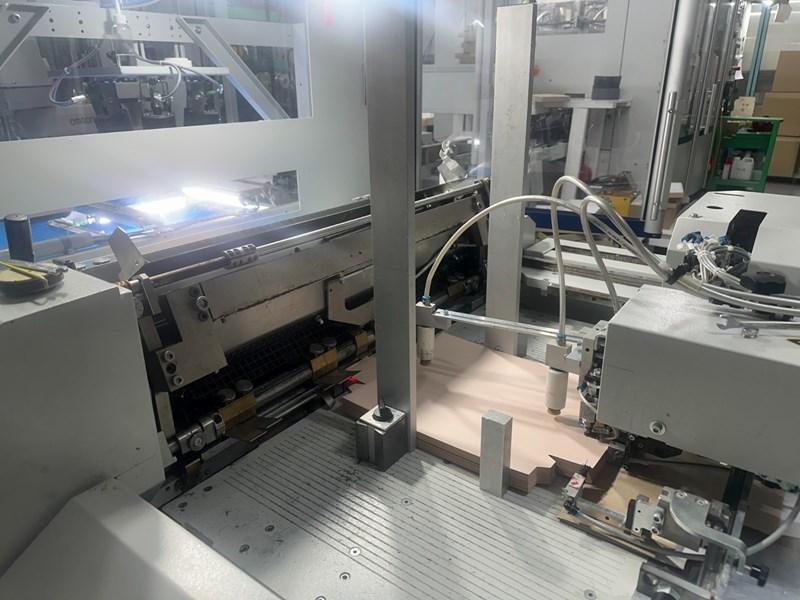

The Boxline Wrapper is a fully automatic laminating machine for producing packaging, lids, and boxes by forming plates The Boxline Taper is a sealing tape machine for automated fold-up and taping of punched or grooved box blanks up to 40 products/min Features - BLW 200: Non-stop, four-sided laminating panel blanks without forming tools at up to 40 cycles per minute, even with deep and short wraps Box size and model changeover without changing the forming tools Clear and simple computerised operation including integrated robot Non-stop wrapping of all four box sides; processing for each side can be optimized separately Continuous transport, alternate sides wrapped sequentially, tolerance compensation Precise automated edge turning for deep and shallow turn-ins Fast, cost-effective format changes simply by swapping the forming plates Higher quality – lower resource consumption Features - BLT 200: Coupled inline with BLW 200 Wrapper Fold-up station 4 hot sealing tape applicators Delivery via conveyor belt Automated format set-up Specifications: BLW 200 Min. Max. Box length: 56mm 570mm Box width: 56mm 360mm Box height: 15mm 170mm Board thickness: 1mm 3mm Cloth length: 120mm 815 mm Cloth width: 120mm 605mm Wrap dimension: 15mm 85mm Side wrap dimension: 15mm 85mm Mechanical speed: 40 cycles/min Box height > 135mm: 25 cycles/min max BLT 200 Min. Max. Cardboard blanks: 86x86mm 735x525mm width x height Size range box: 56x56x15mm 360x570x170mm width x length x height Thickness cardboard: 1mm 3mm Mechanical speed: 40 cycles/min Box height 135mm: 25 cycles/min max
Located: Europe Western
Available: Immediately
