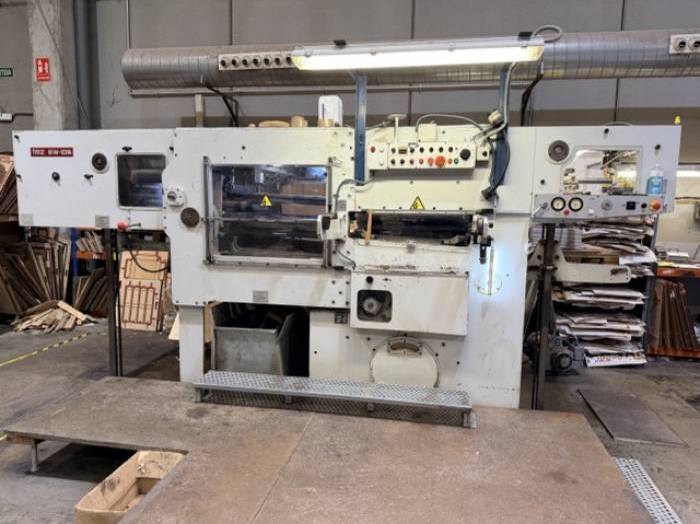

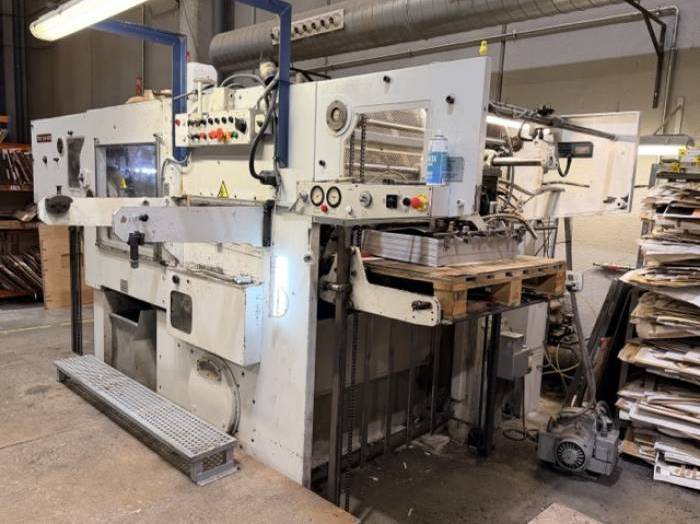

TMZ 106 E (1997)

Die Cutting Machine

Current State: In production

Last update: 17-02-2026 | Viewed: 176 times - Enquiry's: 6

PD Ref: 138280

Age: 1997
Max.Size: 106 x 76 cm (41 x 29 inch)

Latest Enquiry for this machine was from Morocco.

Technical Description:

Core Technical Specifications
Max Sheet Size: 760 x 1060 mm (approx. 30 x 41 inches).
Min Sheet Size: 450 x 450 mm.
Maximum Speed: Up to 5,500 - 6,000 sheets per hour (s/h).
Maximum Cutting Pressure: 300 Tonnes (300T).
Material Thickness Capacity: Solid board up to 3 mm; Corrugated cardboard up to 6 mm.
Weight: Approximately 13,500 kg (13.5 tonnes).
Main Features & Capabilities
Stripping Unit: Equipped with a full, automatic stripping station for high productivity.

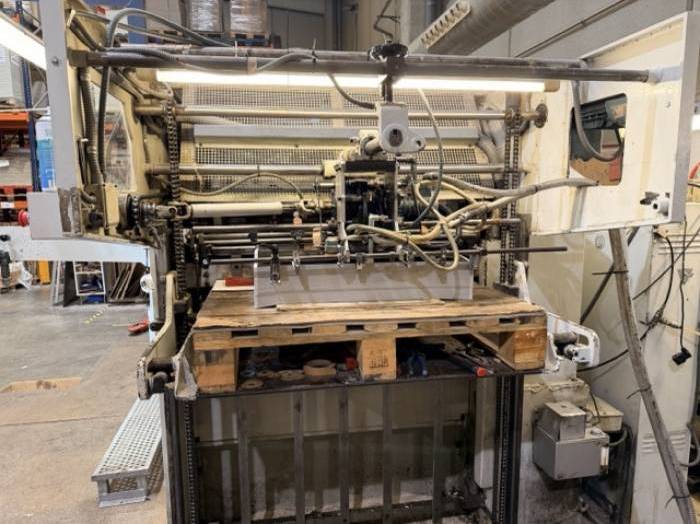

Versatile Feeding: Suitable for both compact material and corrugated cardboard.

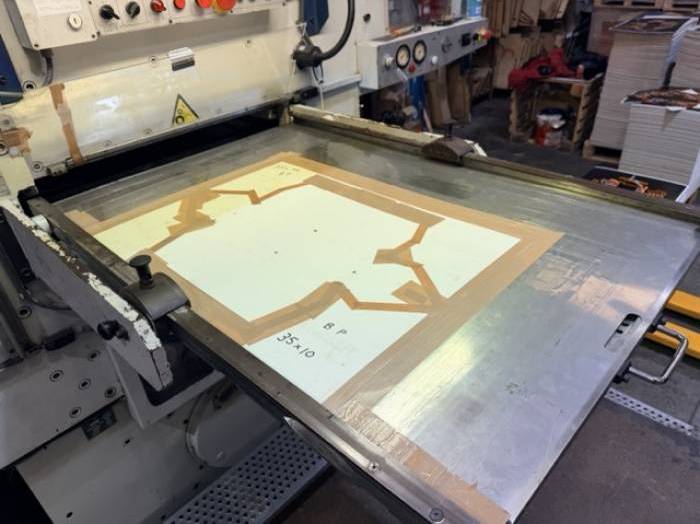

Precision Registration: Features a register table for precise front and lateral positioning.
Safety & Controls: Equipped with updated security systems, protective transparent covers, and a control panel with knobs for manual fine-tuning.
Output Options: Non-stop exit with a motorized band.
Material Handling: Capable of handling high-grammage materials.
Model Variations
TMZ 6000/E106: Standard high-speed automatic die-cutter.

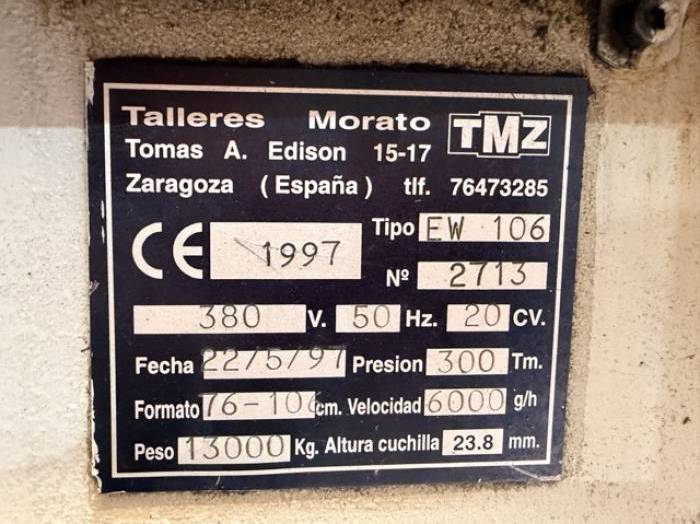

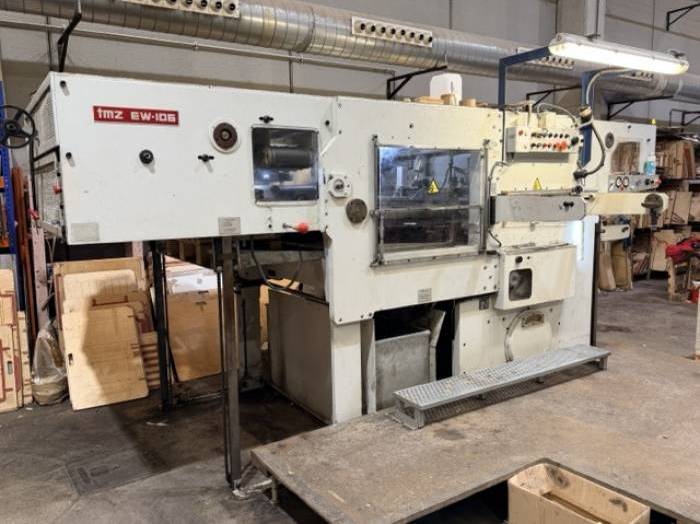

TMZ EW 106: Specifically noted for having a stripping unit.
TMZ Specialized Puzzles: Specific configurations for 0mm clamp margin for board games.
