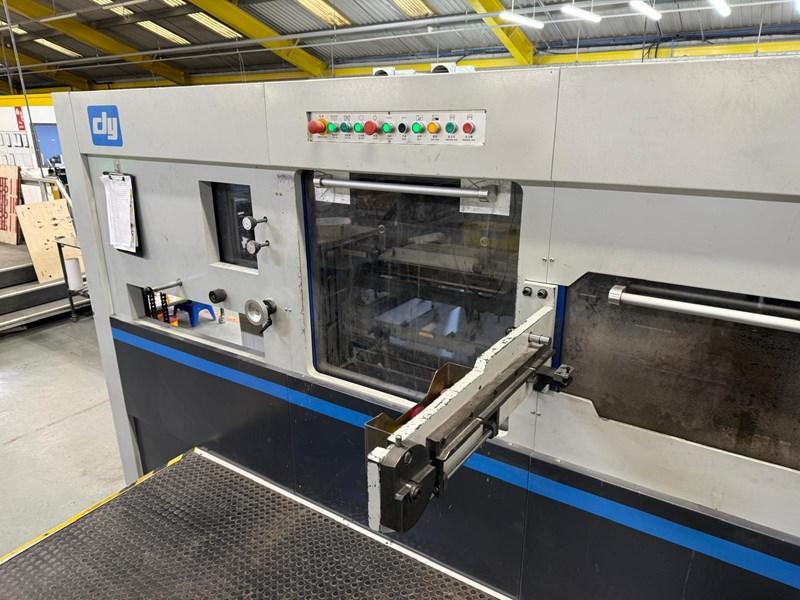

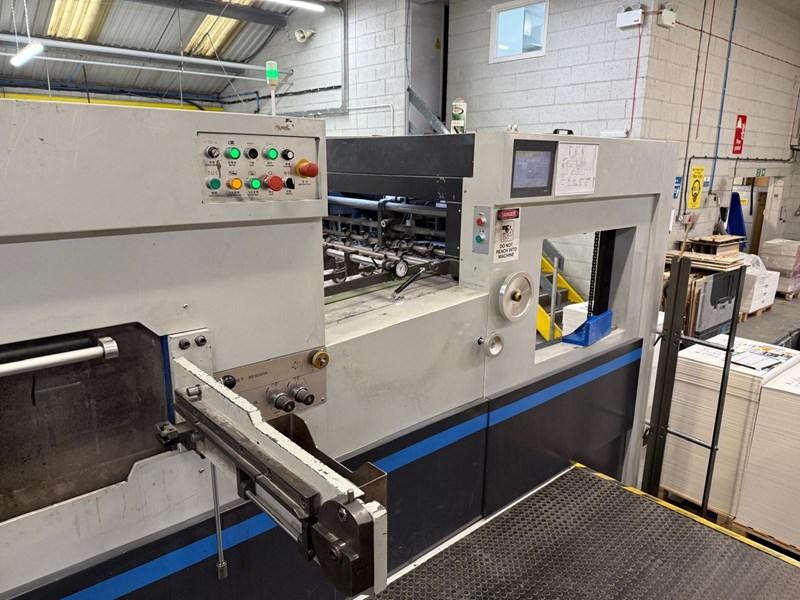

Dayuan MHK 1050 CE Automatic Die Cutter Stripper (2018)

---

Age: 2018
Max.Size: 105 x 75 cm (41 x 29 inch)

---

Important: Very Good

Technical Description:

Diecuts sheets from 100 gsm to 3 mm corrugated cardboard
Speed is up to 7000 sheets per hour
Max sheet size: 1050 x 750 mm
Min sheet size: 400 x 360 mm
Max diecutting size: 1040 x 720 mm
Gripper margin: 9-17 mm
Inner chase size: 1080 x 745 mm
Stock range: 80-2000 gsm cardboard 4 mm corrugated
Die cutting accurracy: ± 0.1 mm
Max diecutting force: 300 T
Max diecutting speed: 7500 s/h
Max feeder pile hight: 1600 mm
Max delivery pile hight: 1400 mm
Main motor: 11 KW
Overall dimensions: 7700 mm x 4600 mm x 2400 mm
Net weight approx: 17 tons

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
