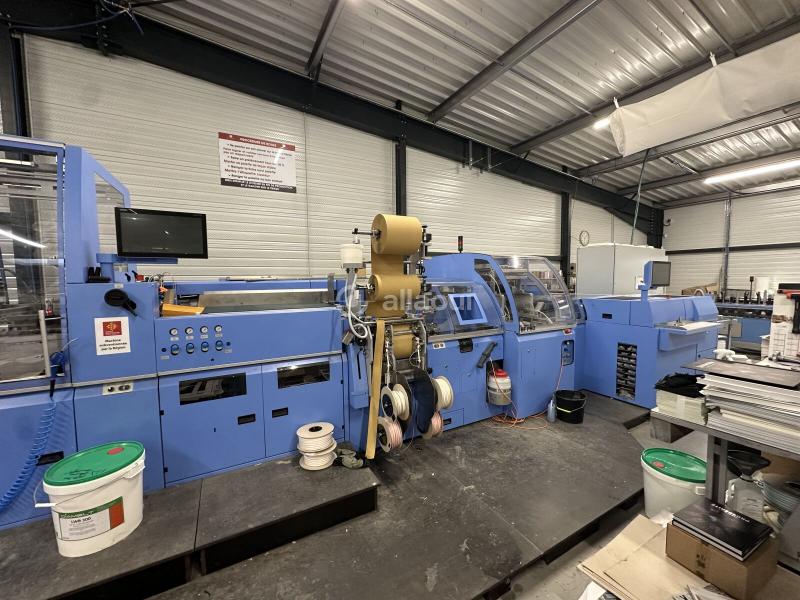

Muller Martini BF Pro (2024)

Case-Binding Machine

Current State: In production

Last update: 30-03-2026 | Viewed: 179 times - Enquiry's: 3

PD Ref: 140165

Dealer Ref.# FT68348

Age: 2024
Max.Size: 66 x 48 cm (25 x 18 inch)

Latest Enquiry for this machine was from Israel.

Important: The compact and flexible middle ground solution between industrial and digital production. Casing-in line for the production of hardcover books- equipped for flexible covers- ribbon marker gluing- and hotmelt nozzle gluing via Nordson XNO 517 premelter- and Copilot control for short make-ready times

Technical Description:

Model: Müller Martini BF PRO, Control system: Copilot with touchscreen, Drive technology: Servo-controlled, Siemens SIMOTION D, Active Line Module for energy recovery, Automatic central lubrication system, Remote diagnostics: Connex MMRA teleservice , Linear block infeed, Infeed conveyor L 1,000 mm, Heating section AS 320, Block stop AS, Angular roller table WR 630, Block stop WR, Star feeder sixtfold star , Block position detection spine and front cut with vacuum, Automatic block thickness control, Rounding and backing station, Press-on station with foam cushion Station 5 , Spine glue station: hotmelt nozzle application EVA , Copilot-controlled, motorized height adjustment, Horizontally mounted heated application heads, Viscosity control device for constant glue viscosity pump water tank , Thread slitting station with thread slitting control, 2nd unwinding device, Standard forming rails / moulding parts, Manufacturer: Nordson, Model: XNO 517 EVA Hotmelt , Premelting capacity: 15 l, Max. melting capacity: 18.1 kg/h, Max. output: 32.7 kg/h, 2 heated hoses, 4,800 mm, 5/16 , Integrated control via line Copilot, Case magazine, Case prestacking conveyor, Case forming station, Special equipment for flexible cover processing, Double cover control for flexible covers in single piece , Spring-loaded block thickness batch splitter, Pointed and bottom splitter for flimsy papers and gilt edges, Rubbing down unit, Casing-in glue pump monitoring, Timer for glue preheating, Electrically heated 15° joint forming rails 45° rails additionally delivered , controlled in pairs, Quick-change system for joint forming rails, 2 pressing stations with 15 kN pressing force 2nd station optionally 45 kN , Heater monitoring unit, Straight-line delivery, offset to the right, Books transported flat, Type 3525, L 1,800 mm / H 850 mm, Supplementary part for stationary roller table, Connectivity Package hardware : Remote Line, MPOWER, Connex infrastructure, Remote Line T2 service must be arranged with Müller Martini

Located: Europe Western

Current State: In production

Available: Immediately

Price: On Request
