Man-Roland Polyman Heatset (1990)

Heatset Machine

Current State: In production

Last update: 14-04-2026 | Viewed: 125 times - Enquiry's: 0

PD Ref: 140551

Dealer Ref.# 302754

Age: 1990
Max.Size: 63 x 0 cm (24 x 0 inch)

Technical Description:

Cut off: 630 mm

Maximum production speed 40.000 cycles/hour

The machine is configured as a single web and consists of the following components:

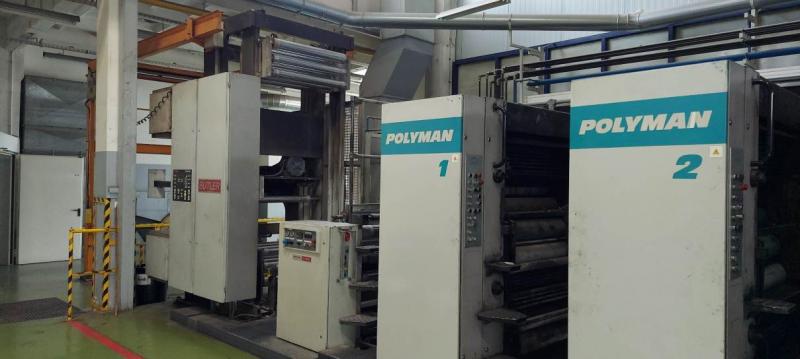

1 BUTLER paper roll unwinder model ME-40C

1 STORK CONTIWEB 1020 retracting unit

- with automatic adjustment of web tension

1 GRAFOTEC M100 paper break protection device

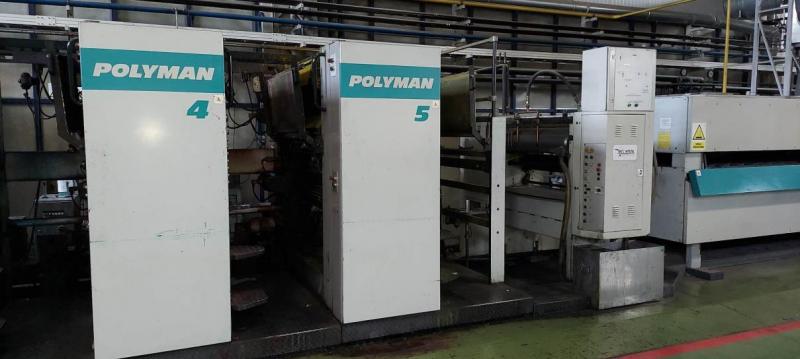

5 POLYMAN double printing units equipped with:

- plate cylinders equipped with a registry system for accurate positioning of the printing plate

- motorically adjustable peripheral, side registers

- manually adjustable diagonal registers

- ink unit with 3 inking rollers

- ink level regulation system

- remote adjustment of inking units

- hydromixalcohol dampening unit

- automatic central oil lubrication

1 BALDWIN IMPACT PREPAC automatic system for washing of blankets

1 TECHNOTRANS dampening circulation system type FAZ-C 20000-5

1 GRAFOTEC paper break protection device behind the fifth printing unit

1 paper guiding system with rollers and paper break sensors

1 MEG Sigma 80 hot air dryer

1 MANROLAND cooling cylinder unit

- 4 chromium-plated cooling cylinders

- 4 inputs for connection to the refrigeration unit

1 manroland pin folder in 1:2:3 system with:

- transverse, longitudinal perforation and grooving

- flap cylinder 3 flaps for 1 transverse fold and up to 2 transverse folds

- chopper for 2 longitudinal folds

- collecting and cutting device for cutting products on ½ circumference

1 equipment of folder with

- E L paper web edge adjuster

- WEKO siliconizing unit

- cut-off register

- 2 pairs of motorized turning bars

- 1 full-width former

1 Combined gluing and softening device, make PLANATOL, Combijet 5 DT

1 plano device OXYDRY 40B.

1 JETWEB unit for applying glue, varnish or ink before the drying oven

1 JETWEB unit for die-cutting and perforating with magnetic cylinder.

2 JETWEB units for longitudinal plow break of paper web

1 adhesive unit for die-cut advertising

1 UV drying oven

1 machine operating station with 2 monitor workstations and 2 desktops

1 electric drive equipment with multifunctional control cabinet for drives

1 plate perforator

1 offset plate bending machine

1 plate scanner

2019: an upgrade of the POLYMAN machine control took place - a retrofit of the HP1000 machine management system and a retrofit of the folder computer. PECOM Server
