Gidue Master M5 10k UV (2012)

Label-Printing Machine

Current State: In stock

Last update: 19-04-2026 | Viewed: 173 times - Enquiry's: 21

PD Ref: 140729

Age: 2012
Max.Size: 100 x 43 cm (39 x 16 inch)

Latest Enquiry for this machine was from India.

Technical Description:

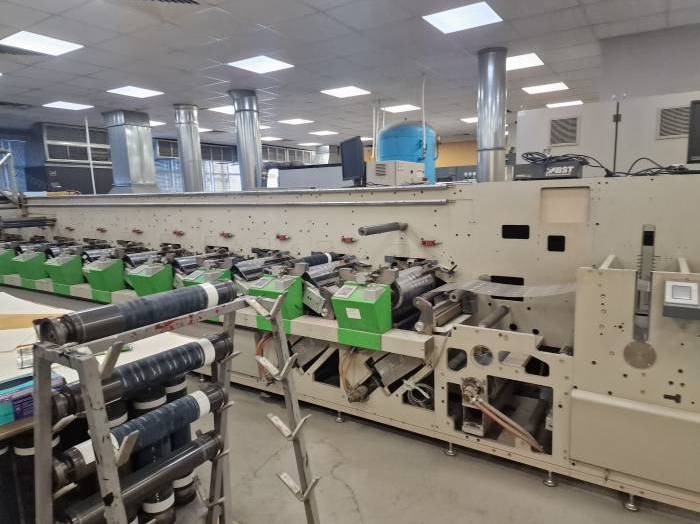

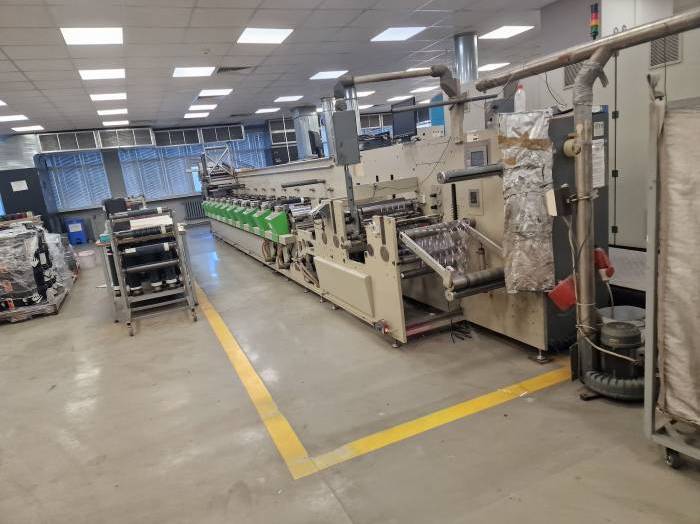

Gidue MASTER M5 10K UV Flexo rotary press
Year of manufacture: 2012
10 clors
(Fully servo driven machine and temperature control for unlimited substrates)
Includes:
Front load unwinder with motorized roll lifting
Unwinder unit for max. reel diameter 1.000 mm
Automatic Web Guide
Video inspection with manual camera movement
ANTISTATIC SYSTEM

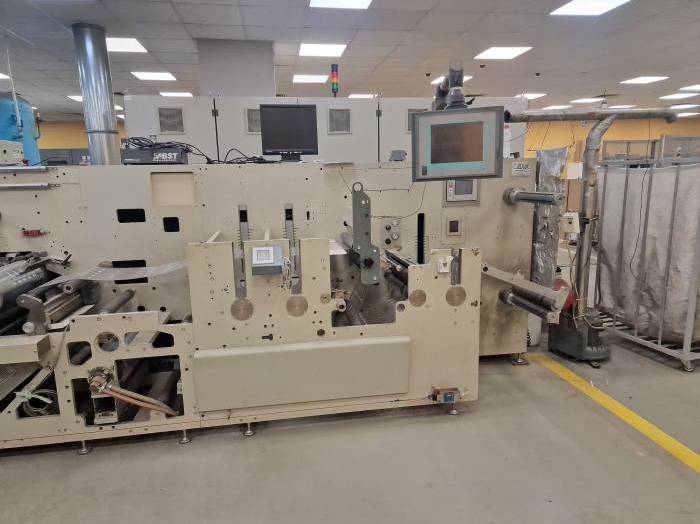

N.2 rewinder output shafts max OD 700 mm using 2 shafts; max OD 1000 mm using 1 shaft;
N.3 6 pneumatic shaft adapters
Pressure Roller on rewinder
Light™: servo driven unwind shaft
Vario™: servo driven infeed and outfeed for automatic tension control
ARC GiDue mark-to-cylinder register control hardware and software unit
Automatic pre-register
Manual lateral register adjustment
Second pass register control
Local touch screen panel on each printing station
Main touch screen panel (PC MHI)
Direct Internet Connection for remote SW and HW service and upgrades
Flexo Printing Unit Description
(1 servo motor for print cilinder, 1 servo motor for impression roller and ink train)
Chilling unit
Servo Flower™ flexographic heads, with 2 servo motors
Plexiglass cover for each printing unit
Photocells for Gidue mark-to-cylinder register control
manual cross register
Sensor for automatic pre-register
EC, New generation e-bricks stepless 140 W/cm GEW UV dryers lamps (includes main touch Accessories Kit)
10 colors

Digital Flexo Tools
Print Tutor™
An intelligent camera automatically detects print register and pressure marks and performs
completely automatic register adjustment, during the set-up and during production. It includes
additional servo motor for lateral register adjustment (lenght register adjustment is built in servo
driving motor of the print cylinder.
Print Tutor Plus™
Print Tutor can also perform automatically print pressure adjustments, it includes pressure
analisis software and hardware and 4 print pressure micro servo motors per print unit.
2 Hot air drying cassette with ultrasonic air solution, for water based inks high speed drying.
1 Rail system for accessories
1 Web turn bar on rail (upper position)
Web Treaters
1 Corona treaters:
1 Vetaphone 5 kW; DG 33 fan; 6 bars double side head
1 Web Cleaners:
ACE double side suction cleaner
