Kalfass KC 5040 450 Universal (2018)

Wrapping Machine

Current State: In stock

Last update: 08-05-2026 | Viewed: 80 times - Enquiry's: 0

PD Ref: 141233

Dealer Ref.# 374392

Age: 2018
Max.Size: 50 x 40 cm (19 x 15 inch)

Technical Description:

Technical data:
Welding frame dimensions: 500 x 400 mm
Max. film roll outer diameter: 300 mm
Film roll width: max. 550 mm
Working height: 870 - 970 mm
Tunnel passage width: 450 mm
Passage height: 100 - 400 mm

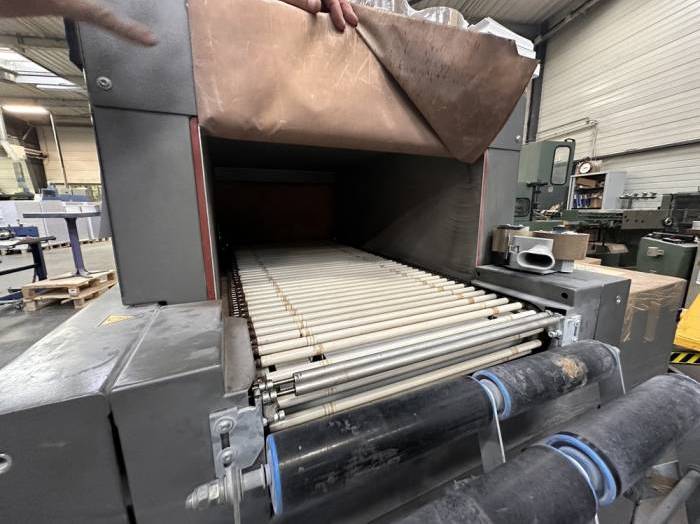

Length of heated tunnel hood: 900 mm
Power connection: 400 V three-phase current, 50 Hz with protective conductor
Rated power: 7.5 KVA
Rated current at 400 V: 10.8A

Easy-to-operate angle welding machine, combined with shrink tunnel.
Particularly robust design for industrial use. Welding frame dimensions
500 x 400 mm. Proven impulse welding technology with teflonized cut-off welding wire
for absolutely odorless operation. Equipped with locking mechanism as
automatic pressure mechanism for precise adherence to the set welding time and for
