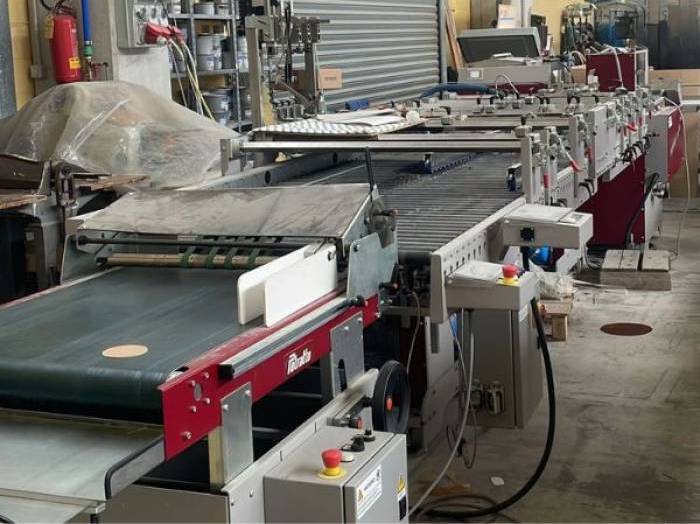

Petratto Metro 105 (2020)

Folding-Gluing Machine

Current State: In production

Last update: 12-05-2026 | Viewed: 189 times - Enquiry's: 2

PD Ref: 141309

Age: 2020
Max.Size: 105 x 78 cm (41 x 30 inch)

Latest Enquiry for this machine was from United Kingdom.

Technical Description:

PETRATTO METRO 105 – Piega Incolla
Anno 2020
1x SD105A – Alimentatore Automatico ad Aspirazione
Alimentazione continua fogli
Formato massimo: 105 x 78 cm
Formato minimo: 6 x 6 cm
Velocità massima: 200 m/min
Potenza assorbita: 1.5 kW
Macchina indipendente e mobile
Dimensioni:
Larghezza: 100 cm
Profondità: 145 cm
Altezza: 125 cm

1x METRO 105 – Unità Piega and Incolla 2.5 m (42 Rulli)
1x Coppia lame piega dx/sx
1x Soffiatore separatore piega
1x Tipper Standard – Tasca piega superiore
1x Rotazione programmabile fino a 180°
1x Dispositivo Automatico Fondo Automatico
1x Squadra di registro
1x Stacker Raccolta Scalare
1x Unità colla Hotmelt Nordson
1x Scheda aggiuntiva upgrade 4 uscite
3x Pistole Hotmelt Nordson con tubo 2.5 m

PETRATTO METRO 105 – Folding and Gluing Machine
Year 2020
1x SD105A – Automatic Suction Feeder
Continuous sheet feeding system
Maximum format: 105 x 78 cm
Minimum format: 6 x 6 cm
Maximum speed: 200 m/min
Power consumption: 1.5 kW
Independent and mobile unit
Dimensions
Width: 100 cm
Depth: 145 cm
Height: 125 cm
1x METRO 105 – 2.5 m Folding and Gluing Unit (42 Rollers)
Included Accessories
1x Right and Left Folding Blade Set
1x Folding Separator Blower
1x Standard Tipper – Upper Folding Pocket
1x Programmable Rotation Unit up to 180°
1x Automatic Crash-Lock Bottom Device
1x Alignment Square
1x Cascade Delivery Stacker

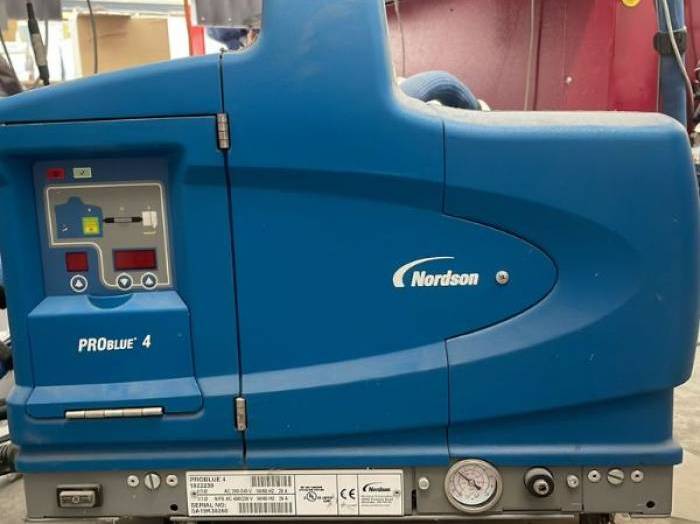

1x Nordson Hotmelt Gluing Unit
1x Additional Upgrade Board for 4 Outlets
3x Nordson Hotmelt Guns with 2.5 m Hoses
