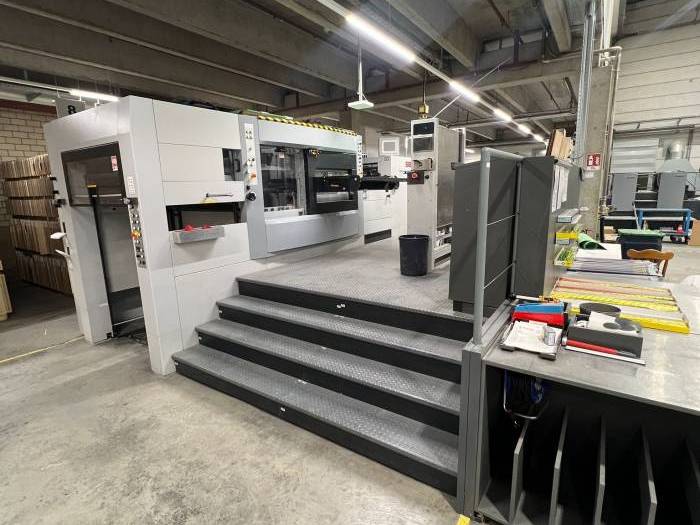

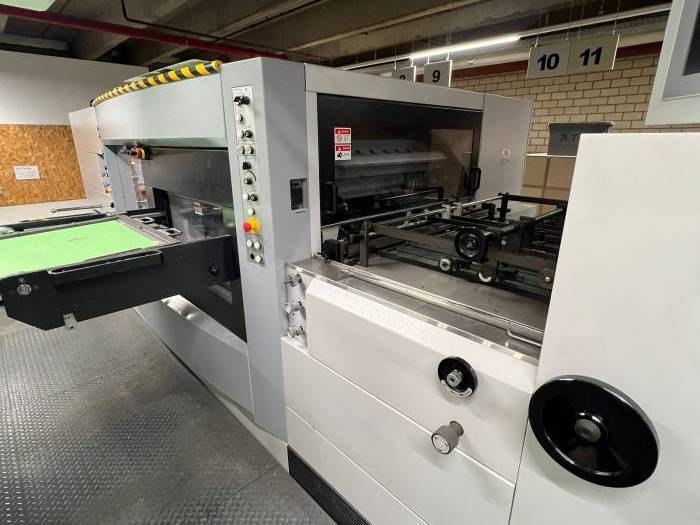

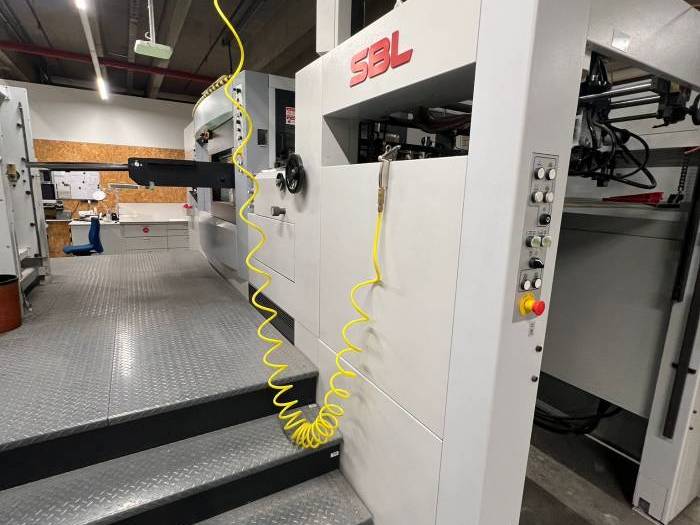

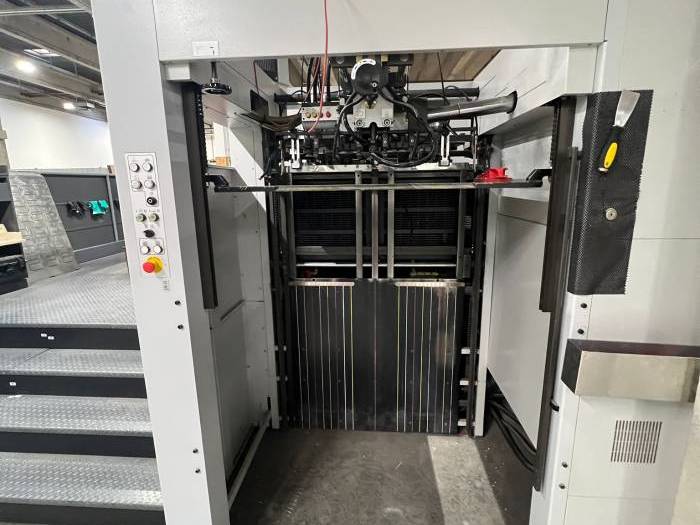

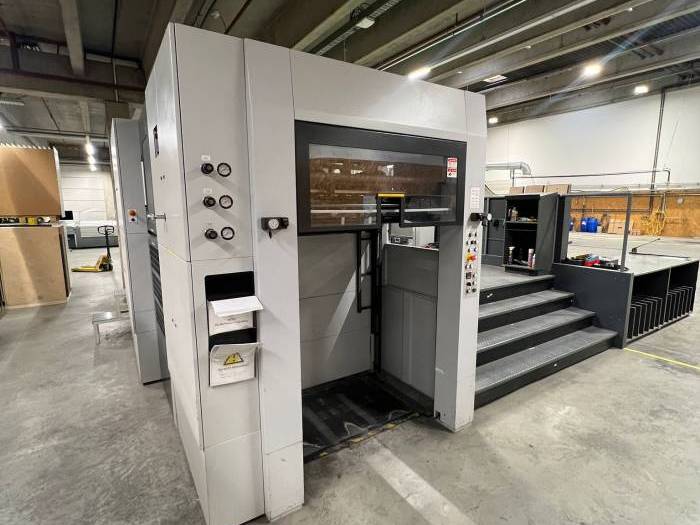

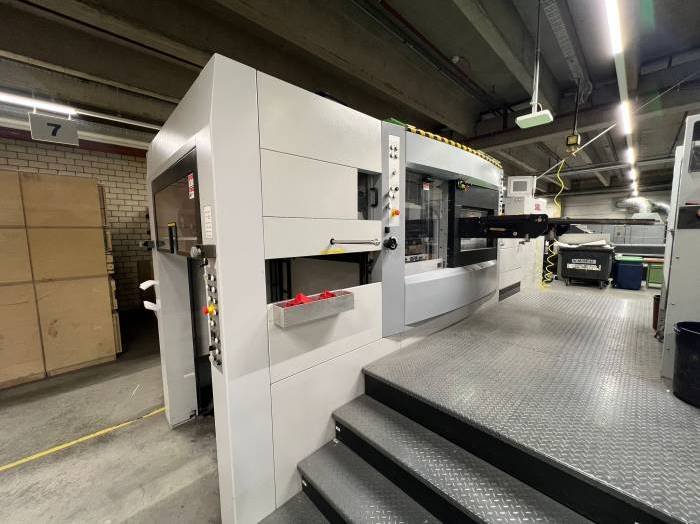

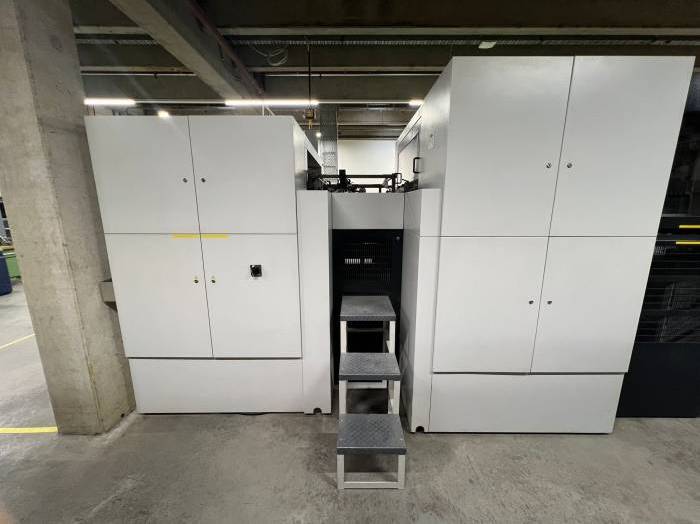

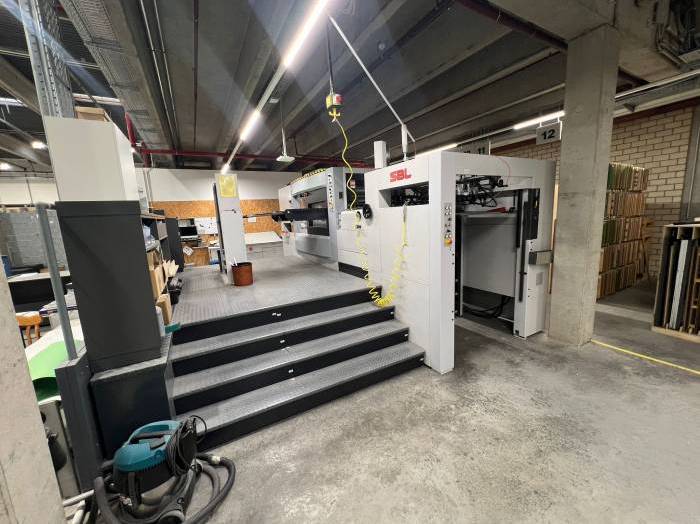

SBL 1060 SE (2018)

Die Cutting Machine

Current State: Under power

Last update: 29-05-2026 | Viewed: 103 times - Enquiry's: 2

PD Ref: 141769

Dealer Ref.# 382402

Age: 2018
Max.Size: 106 x 76 cm (41 x 29 inch)

Latest Enquiry for this machine was from Ukraine.

Technical Description:

Elevated machine 400 mm
Sheet feeder: Manual non-stop pile feeder
Material range: Paper and board from 470 × 350 mm to 1060 × 760 mm
Max cutting format: 1050 × 740 mm
Min sheet size: 470 × 350 mm
Max sheet size: 1060 × 760 mm
Max cutting pressure: 300 tons
Material thickness: 0.1 – 2 mm (corrugated/laminated max 4 mm)
Min gripper margin: 9.5 mm
Max inside chase size: 1155 × 852 mm
Cutting plate size: 1076 × 756 mm
Max speed: 8,000 sheets/hour
Power consumption: Total 32 kW (22 kW 10 kW for lower plate heating)
Machine dimensions (L×W×H): 5,900 × 5,700 × 2,615 mm
Max pile height – feeder (with pallet): 1,750 mm
Max pile height – delivery (with pallet): 1,450 mm
- Vaccuum belt on feeder
- Pneumatic feeder table
- Non-stop manual feeder system
- Anti-static system
- Pre-pile device
- Manual suction group adjustment
- Micrometric suction adjustment
- Motorized side pile adjustment
- 2 pneumatic side register guides
- Electronic control of front and side register
Cutting/Embossing Section
- Automatic pressure adjustment up to 300 tons

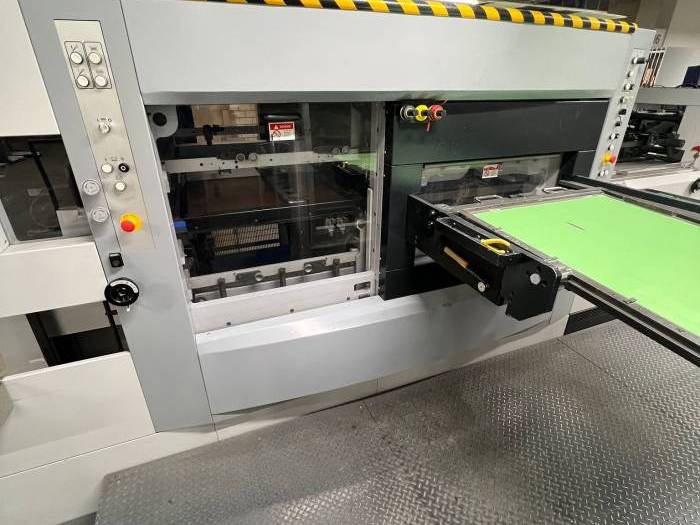

- Preparation and introduction table for die frames in platen
- quick-lock die chase frames with bottom plate
- Pneumatic locking of the chase and lower supporting plate
- Centerline System
- Micrometric system
- Stripping
- Quick lock for upper and central stripper frames
- Double accessory kit for lower stripper prep (pins, bars, clamps, etc.)

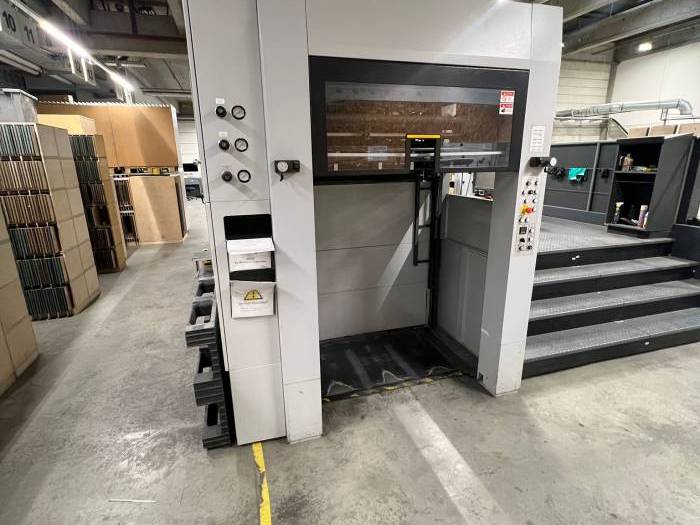

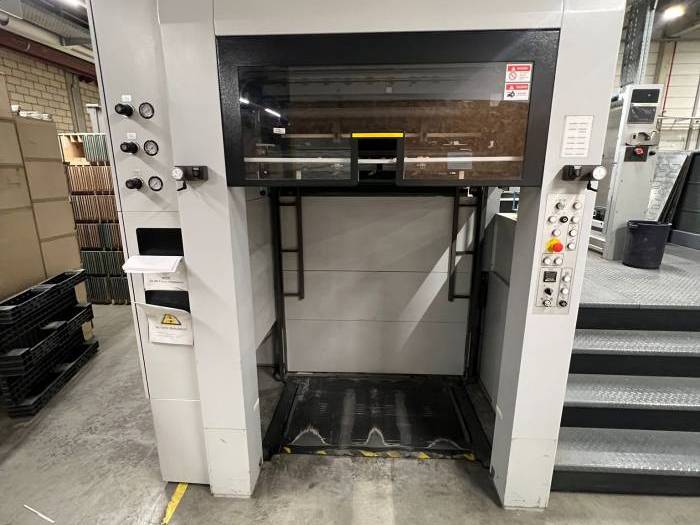

- Delivery Section
- High-pile automatic non-stop delivery with conveyor
- Sheet deceleration device
- Tab insertion device
