Morgana Autocreaser PRO 33 Automatic Creasing Machine (Unkn.)

Creasing Machine

Current State: In production

Last update: 13-06-2026 | Viewed: 83 times - Enquiry's: 0

PD Ref: 142210

Age: Unkn.

Technical Description:

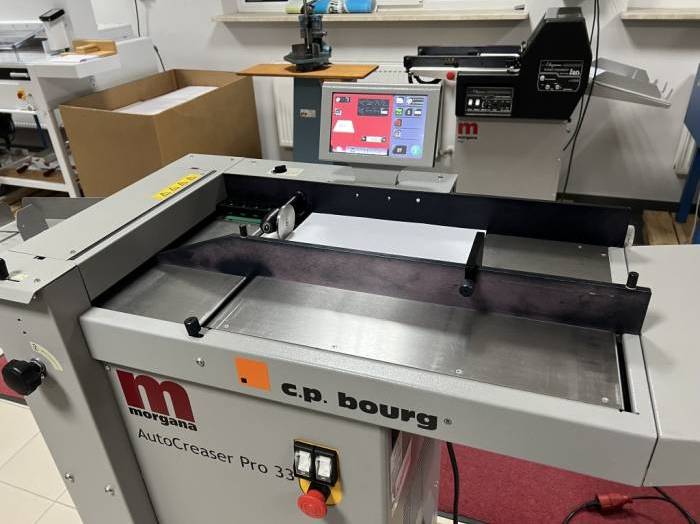

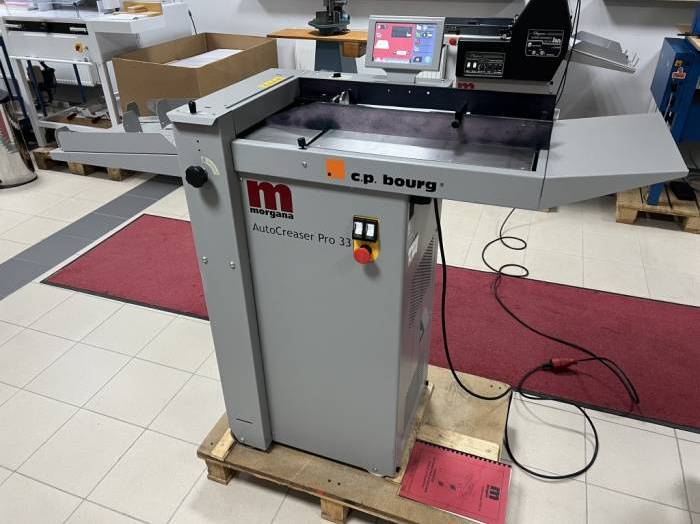

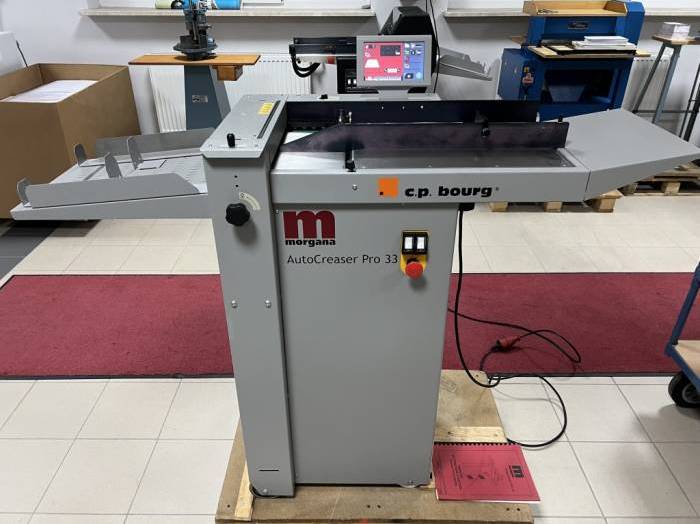

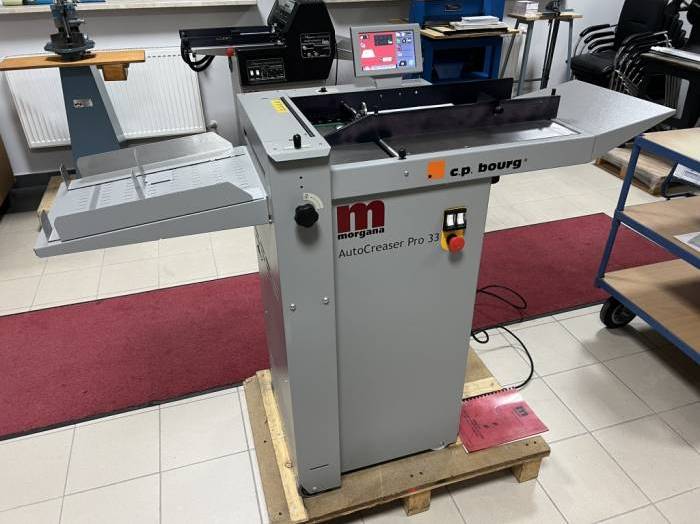

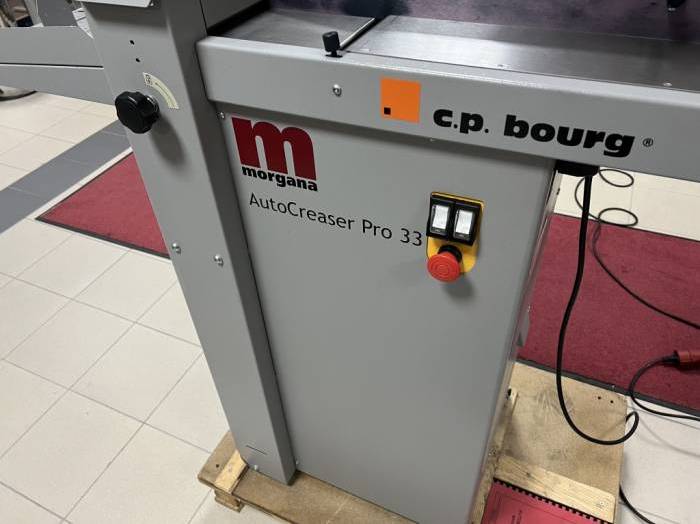

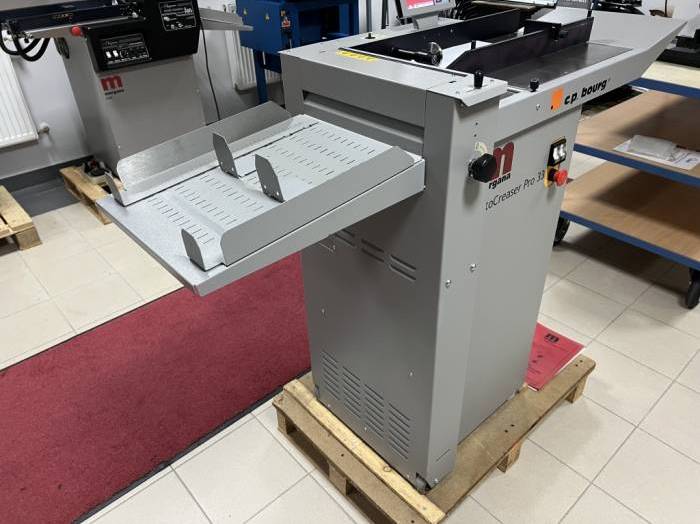

Morgana Autocreaser PRO 33 Automatic Creasing Machine
The machine is fully operational and ready to use.
It is the most efficient creasing system on the market, with a robust construction.
Made in England.
Non-stop vacuum feeding with the ability to add material during operation.
Built-in compressor.
Instruction manual included.

Manufacturer’s description:

The Morgana Autocreaser Pro 33 is one of the world’s most popular automatic creasing machines, manufactured by the British company Morgana Systems Ltd. The machine allows for strip creasing, line perforation, and micro-perforation.

The 7″ color Smart Screen programmer allows for easy machine programming.
Working width up to 330 mm
Productivity up to 8,500 sheets/h (A4), 11,000 sheets/h (A5)
Paper feeding via a vacuum cylinder
Programmable up to 16 creases in a single pass, unlimited number of programs
Creasing paper weights from 0.11-0.4 mm (approx. 80-400 gsm)
Option to install additional perforating discs – 20, 28, 56, or 90 notches

Technical parameters:
Maximum format (width/length): 330 x 700 mm
Minimum format: 140 x 210 mm
Maximum grammage: 0.4 mm (approx. 400 gsm) including laminated material
Minimum grammage: 0.11 mm
Maximum number of creases in a single pass: 16
Number of programs: alphanumeric, unlimited
Productivity: 8,500 sheets/h (A4-1 creasing), 11,000 sheets/h (A5-1 creasing)
Min. creasing distance from the front edge: 2.5 mm
Min. creasing distance from the rear edge: 35 mm
Minimum distance between creases: 1 mm
Machine dimensions (L x W x H): 1450 mm x 522 mm x 1224 mm
Net weight: 121 kg
Power supply: 230V, 50 Hz
