Smag Galaxie 350 Mono with Flatbed Die Station (2011)

Label-Finishing Machine

Current State: In production

Last update: 16-06-2026 | Viewed: 103 times - Enquiry's: 2

PD Ref: 142281

Dealer Ref.# MG113

Age: 2011
Max.Size: 34 x 25 cm (13 x 9 inch)

Latest Enquiry for this machine was from Egypt.

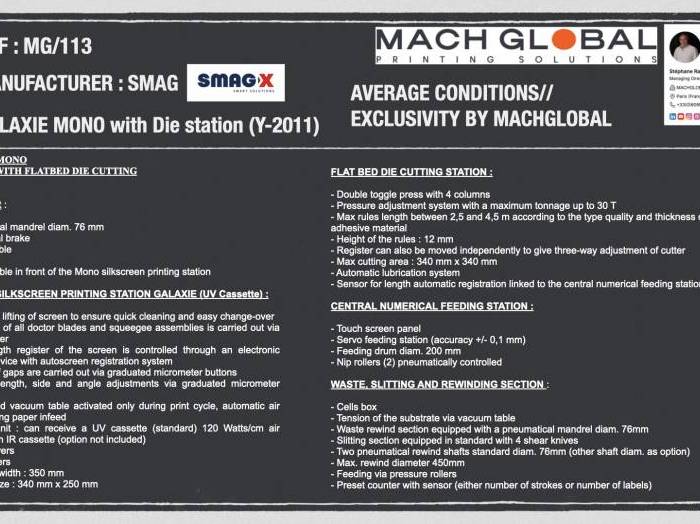

Technical Description:

GALAXIE MONO
VERSION WITH FLATBED DIE CUTTING

UNWINDER :

- Pneumatical mandrel diam. 76 mm
- Mechanical brake
- Splicing table
- Cells box
- Vacuum table in front of the Mono silkscreen printing station

FLATBED SILKSCREEN PRINTING STATION GALAXIE (UV Cassette) :

- Pneumatic lifting of screen to ensure quick cleaning and easy change-over
- Movement of all doctor blades and squeegee assemblies is carried out via an air cylinder
- The length register of the screen is controlled through an electronic photocell device with autoscreen registration system
- Print relief gaps are carried out via graduated micrometer buttons
- Screen length, side and angle adjustments via graduated micrometer button
- Print head vacuum table activated only during print cycle, automatic air release during paper infeed
- Drying unit : can receive a UV cassette (standard) 120 Watts/cm air cooling or an IR cassette (option not included)
. UV : 3 powers
. IR : 3 powers
- Max web width : 350 mm
- Printing size : 340 mm x 250 mm

FLAT BED DIE CUTTING STATION :

- Double toggle press with 4 columns
- Pressure adjustment system with a maximum tonnage up to 30 T
- Max rules length between 2,5 and 4,5 m according to the type quality and thickness of the self-adhesive material
- Height of the rules : 12 mm
- Register can also be moved independently to give three-way adjustment of cutter
- Max cutting area : 340 mm x 340 mm
- Automatic lubrication system
- Sensor for length automatic registration linked to the central numerical feeding station

CENTRAL NUMERICAL FEEDING STATION :

- Touch screen panel
- Servo feeding station (accuracy /- 0,1 mm)
- Feeding drum diam. 200 mm
- Nip rollers (2) pneumatically controlled

WASTE, SLITTING AND REWINDING SECTION :

- Cells box
- Tension of the substrate via vacuum table
- Waste rewind section equipped with a pneumatical mandrel diam. 76mm
- Slitting section equipped in standard with 4 shear knives
- Two pneumatical rewind shafts standard diam. 76mm (other shaft diam. as option)
- Max. rewind diameter 450mm
- Feeding via pressure rollers
- Preset counter with sensor (either number of strokes or number of labels)

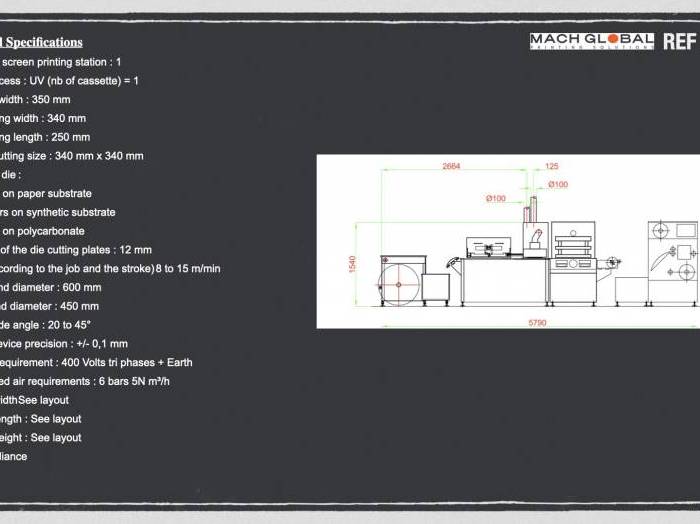

Technical Specifications
Number of screen printing station : 1
Drying process : UV (nb of cassette) 1
Max. web width : 350 mm
Max. printing width : 340 mm
Max. printing length : 250 mm
Max. die cutting size : 340 mm x 340 mm
Max. rules die :
5 meters on paper substrate
3,5 meters on synthetic substrate
2 meters on polycarbonate
Thickness of the die cutting plates : 12 mm
Speed (according to the job and the stroke) 8 to 15 m/min
Max. unwind diameter : 600 mm
Max. rewind diameter : 450 mm
Doctor blade angle : 20 to 45°
Feeding device precision : /- 0,1 mm
Electrical requirement : 400 Volts tri phases Earth
Compressed air requirements : 6 bars 5N m³/h
Machine width See layout
Machine length : See layout
Machine height : See layout
C.E. compliance
