Fidia Combi Unica Folder Gluer (2003)

---

Age: 2003
Max.Size: 100 x 76 cm (39 x 29 inch)

---

Important: Very Good

Technical Description:

The Combi Unica is ideal for a wide range of quality folding and gluing products with quick set-up.
Products include a variety of presentation folders, special heavy-duty envelopes i.e. courier envelopes, medical files,
photograph holders, air ticket wallets. Also, music record sleeves, CD/DVD holders and book covers with flap.

The ‘Combi’ is fed by a rising deep pile friction feeder followed by a full width plough folding belt and ‘tipper’ plate.
The ‘Unica’ adds the folding gluing capability and is composed of double vacuum register belts, glue gun positions and a 4 buckle folding station.

Comprising:-
‘Combi’ unit with air suction deep pile feeder with integral pump
Plough forming station

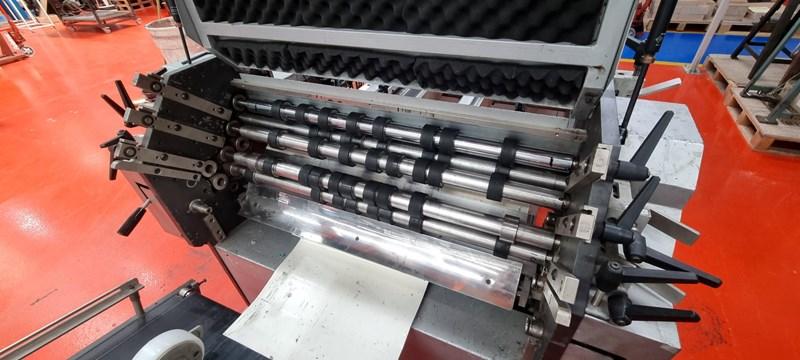

Twin segmented roller section

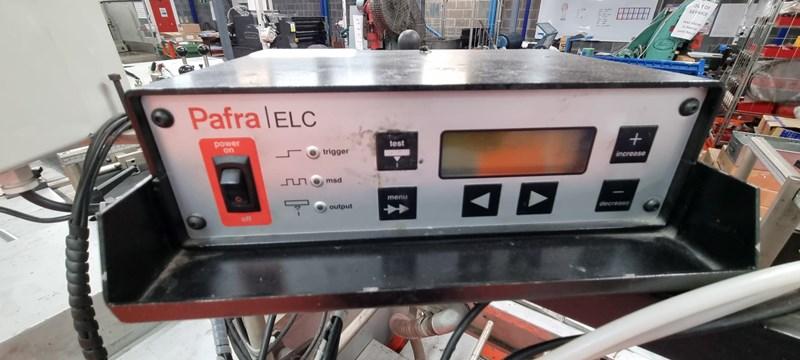

Pafra 2 Gun Cold Glue system
‘Unica’ unit with 4 x buckle fold plates 60 mm dia. segmented folding rollers
Including accessories, tools and manuals

A PDF is Attached show all the different product styles

Specifications:

Paper weights Minimum 120 Gr/m2 Maximum 500 Gr/m2
Sheet Sizes: Minimum 102 x 240mm Maximum 760 x 1000mm
Speed 150 Meters Minute
Height of Flap Folding Min 10mm Maximum 160mm
Height of Gusset folding Min 10mm Maximum 20mm

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
