Horizon AFC 566 FKT - New Rollers And Belts (2014)

Folding Machine

Current State: In stock

Last update: 30-06-2026 | Viewed: 102 times - Enquiry's: 1

PD Ref: 142621

Age: 2014
Max.Size: 850 x 558 cm (334 x 219 inch)

Latest Enquiry for this machine was from Thailand.

Technical Description:

CONDITION: REFURBISHED - ALL NEW ROLLERS AND BELTS
COUNTER: 37 890 000

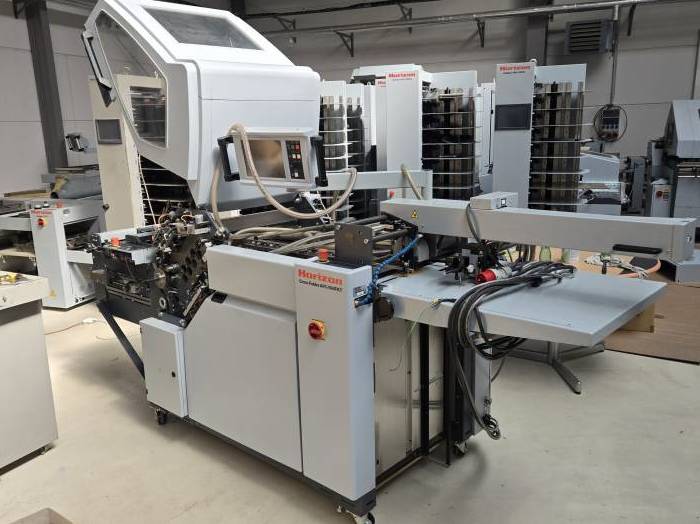

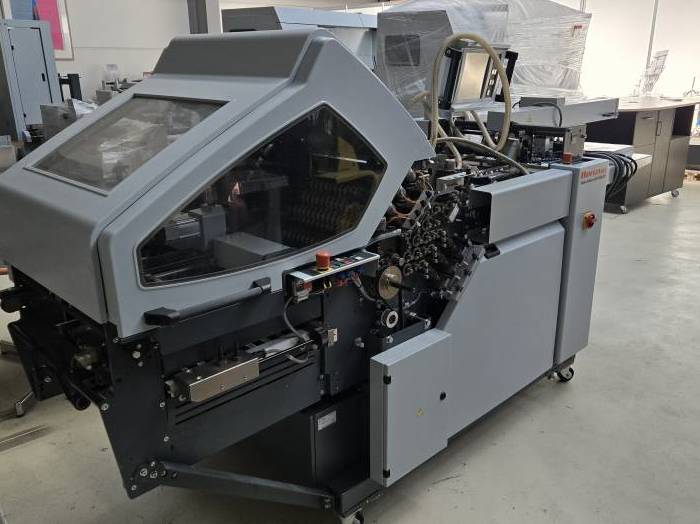

The Horizon AFC-566 FKT is a professional automatic cross-folding machine designed for precise and high-performance processing of a wide range of printed materials. The machine is equipped with a configuration of 6 folding pockets, 1 cross knife, and 2 pockets below the knife, enabling the production of a large variety of folding patterns, including parallel folds, accordion folds, letter folds, and cross folds. Thanks to this configuration, the machine is suitable for both standard commercial jobs and more demanding bookbinding applications.

Setup is carried out conveniently via a color LCD touchscreen, where the operator selects the folding type and enters the sheet size. The machine then automatically adjusts the individual sections using precise stepper motors. The AFC-566 model allows automatic setup of up to 17 folding patterns and stores up to 200 repeat jobs in memory, significantly reducing changeover time between jobs.

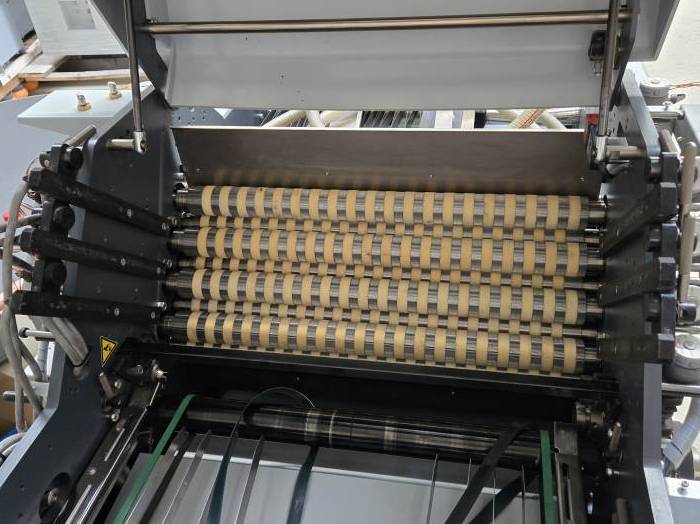

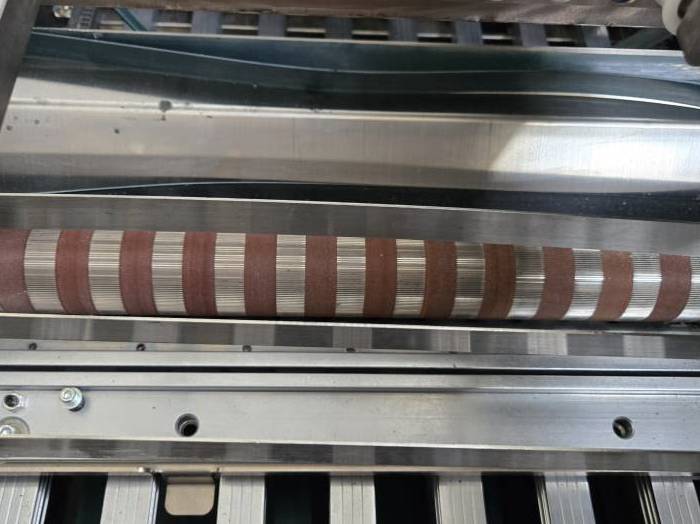

High-quality and stable sheet feeding is ensured by the Horizon rotary suction feeder, which provides reliable operation with various paper types. The folding rollers combine steel and soft polyurethane, allowing the machine to achieve sharp, precise, and repeatable folds.

Maximum sheet size: 558 × 850 mm.

Minimum sheet size: 128 × 148 mm.

Paper weight range for uncoated paper: 40 to 250 g/m².

Paper weight range for coated paper: 50 to 232 g/m².

Belt speed: 30 to 230 m/min.

Knife folding speed: up to 180 m/min.

Suction head performance: up to 40,000 cycles per hour.

Cross knife performance: up to 21,000 cycles per hour.

Fold length for the 1st, 2nd, 3rd, and 5th pockets: 30 to 450 mm.

Fold length for the 4th and 6th pockets: 30 to 360 mm.

Fold length for K1 / K2 pockets below the knife: 30 to 150 mm.

Machine power supply: 3-phase, 200 / 220 / 400 V, 50 or 60 Hz.

Dimensions of the main machine body: (W) 3,065 × (D) 1,050 × (H) 1,580 mm.

Conveyor dimensions: width (W) 1,030 to 1,320 mm × (D) 600 mm × (H) 1,130 mm.

The machine design and technical specifications are subject to change without prior notice.

Specifications may vary depending on the job type, paper quality, environmental conditions, and other factors. We recommend performing a test run before starting production.
