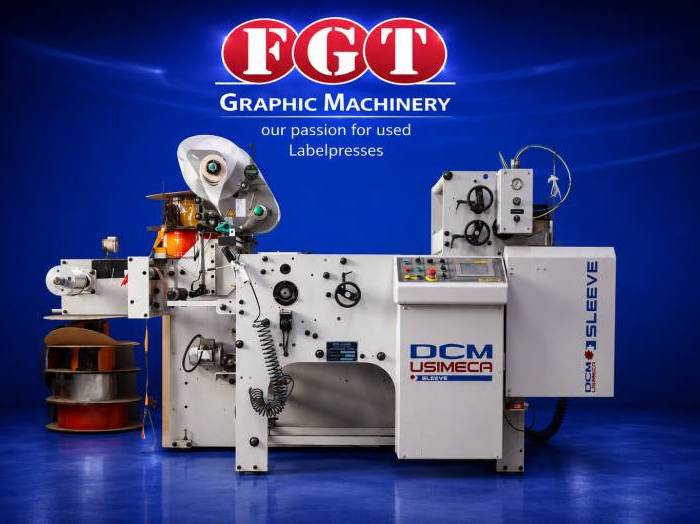

Dcm Usimeca Sleeve 3 (2014)

---

Age: 2014
Max.Size: 30 x 0 cm (11 x 0 inch)

---

Technical Description:

DCM USIMECA
Model: Sleeve 3
Machine type: Shrink sleeve forming and gluing machine
Year of manufacture: 2014
Country of origin: France
Current location: Germany
Condition: Used machine
Reported usage: Very low usage according to seller information
Current counter display: 0 shown on display
FGT Condition Rating: 8/10
________________________________________
Why This Machine Is Interesting
The DCM USIMECA Sleeve 3 is designed for the production of shrink sleeve tubes from flat shrink film material. The machine forms the material into a sleeve tube, applies the glue seam precisely and rewinds the finished sleeve material for further converting or application.
It is especially suitable for the production of shrink sleeves for:
• Bottles
• Cans
• Cosmetic packaging
• Food packaging
• Pharmaceutical products
• Household products
• Promotional packaging
This machine offers a very attractive entry into shrink sleeve production, especially for customers who want to expand their label and packaging portfolio with a
professional industrial machine at a reasonable investment level.Compared
to the original new price of approximately EUR 110,000, this machine offers excellent value for money.
________________________________________
Technical Data
Material: Printed or unprinted shrink films
Film types: PVC, PET, OPS shrink film
Film thickness: approx. 28–100 µm
Minimum sleeve width: approx. 50 mm
Maximum sleeve width: approx. 300 mm
Maximum unwind diameter: approx. 600 mm
Maximum rewind diameter: approx. 600 mm
Sleeve width tolerance: approx. /- 0.15 mm
Outer web overlap: approx. 0–1 mm
Glue position: Adjustable
Maximum production speed: Up to 500 m/min
Maximum sleeve roll weight: approx. 50 kg standard
Power supply: 240 V / 50 Hz
Compressed air: Minimum 6 bar, dry and oil-free, approx. 40 litres/min
________________________________________
Machine Configuration
The machine is equipped according to available information with the following main units:
Unwinding Section
• Unwinding unit
• Cantilevered unwind shaft
• Pneumatic arm for support of the mother roll
• Core adapter for 76 mm core diameter
• Core adapter for 152 mm core diameter
• Electromagnetic brake controlled by ultrasonic sensor
• Automatic web guiding with ultrasonic sensor
Gluing / Solvent Application
• Solvent application unit for gluing
• Pressurised solvent tank
• Speed-related glue quantity control
• Adjustable glue seam position
Sleeve Forming Section
• Longitudinal pre-cutting / perforation unit with two perforation wheels
• Semi-automatic forming tool for sleeve widths from approx. 50 to 300 mm
• Adjustable guiding rollers for sleeve forming
• Roller sets for laying the film around the forming bar
• DCM control system for sleeve width measurement
Rewinding Section
• Rewinding unit
• Machine control cabinet
• Touchscreen control

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
