Rimagraf Multi Clipper Metal Cornering Machine (2000)

Carton and Box making Machine

Current State: In production

Last update: 13-07-2026 | Viewed: 58 times - Enquiry's: 0

PD Ref: 143013

Dealer Ref.# 11124

Age: 2000
Max.Size: 66 x 0 cm (25 x 0 inch)

Important: Very Good

Technical Description:

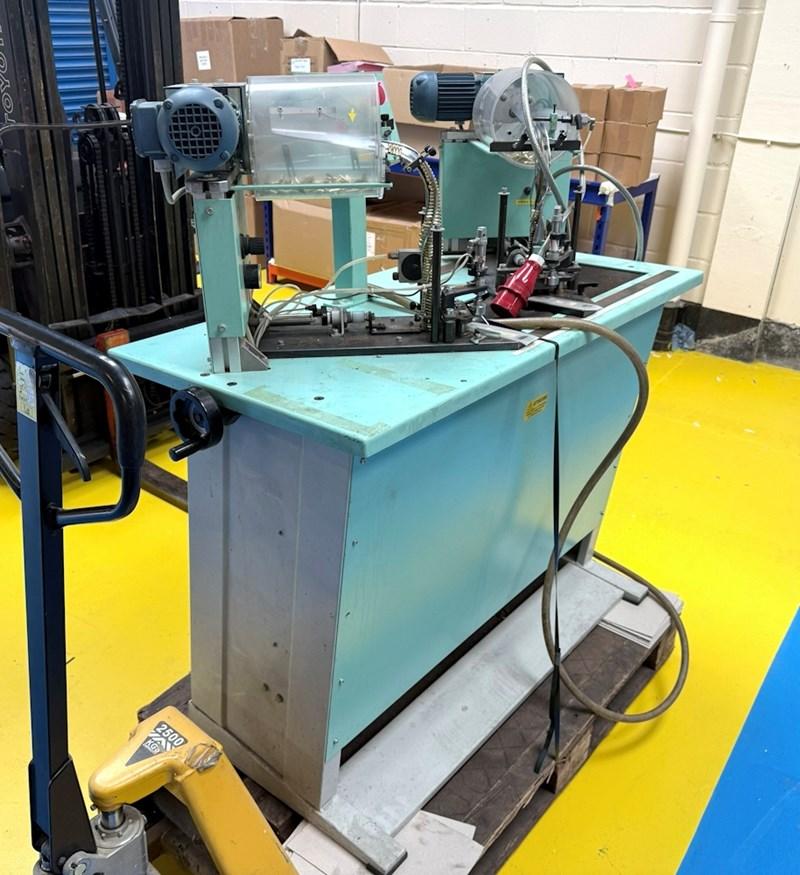

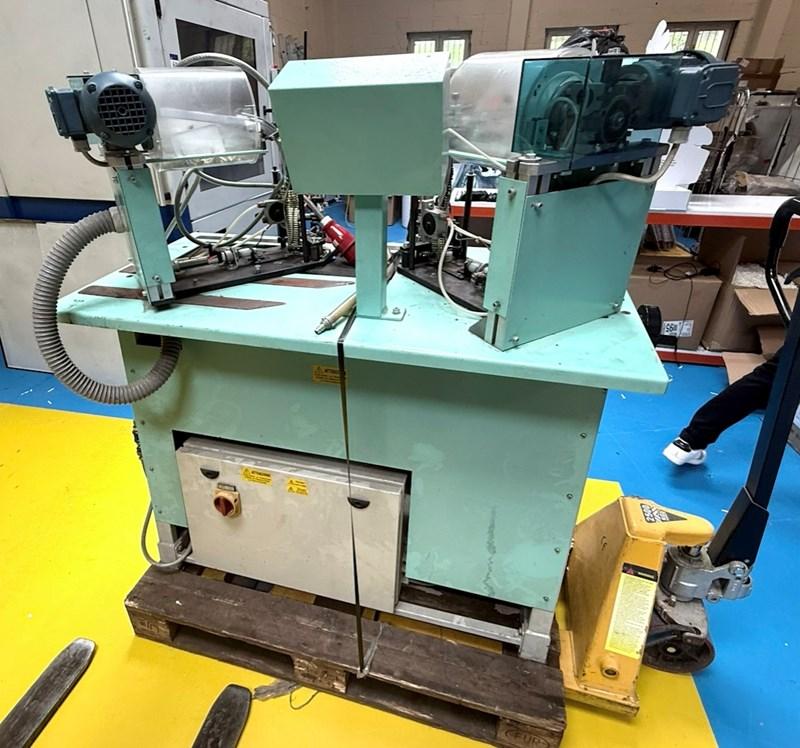

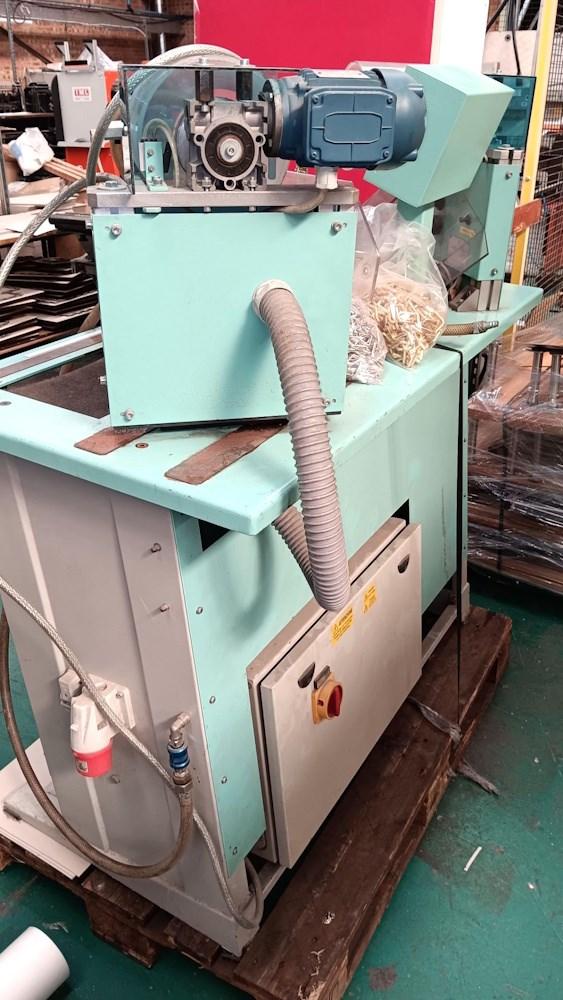

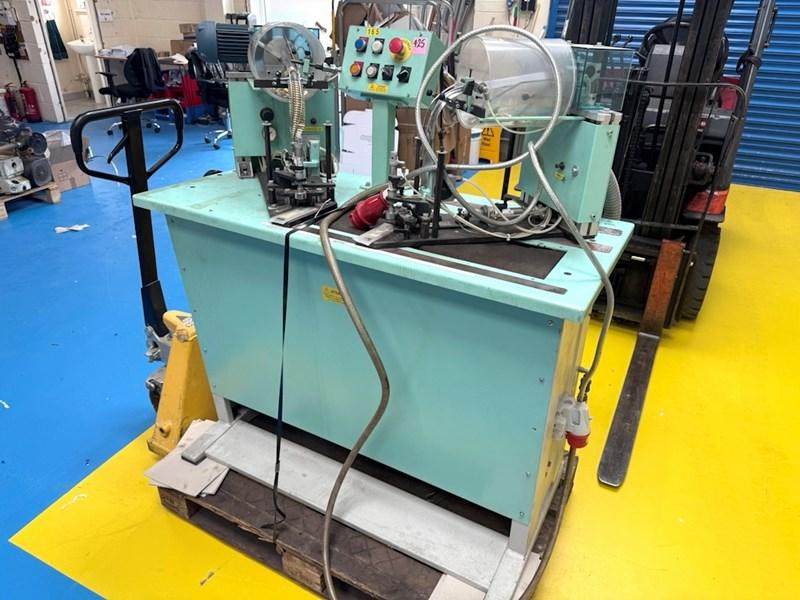

Ref:11124 . 2000 Rimagraf Multi Clipper Metal Cornering Machine.
A semi-automatic electric and pneumatic two-head machine that simultaneously applies and presses two SYMMETRICAL metal corners of any type and size.
The left head is fixed, while the right one can be easily adjusted from a minimum of 120 mm to a maximum of 500 mm depending on the size of the cover you are using.
The corners are placed in the two loading tanks, which rotate to place them on the guide channels.
Finally activate the pressing cycle using the foot pedal.
Size-change requires only minimum adjustment.
Technical data:
Manual load
Pneumatic connection required
Operating voltage: 380V, 50-60Hz
Dimensions: 600 x 1250 x 1400 mm
Total weight: 180 kg.

Located: Europe Western

Current State: In production

Available: Immediately

Price: On Request
