Duplo DBM 600 (2022)

Booklet-Making Machine

Current State: In production

Last update: 29-07-2026 | Viewed: 74 times - Enquiry's: 5

PD Ref: 143386

Dealer Ref.# 415091

Age: 2022
Max.Size: 50 x 35 cm (19 x 13 inch)

Latest Enquiry for this machine was from Germany.

Technical Description:

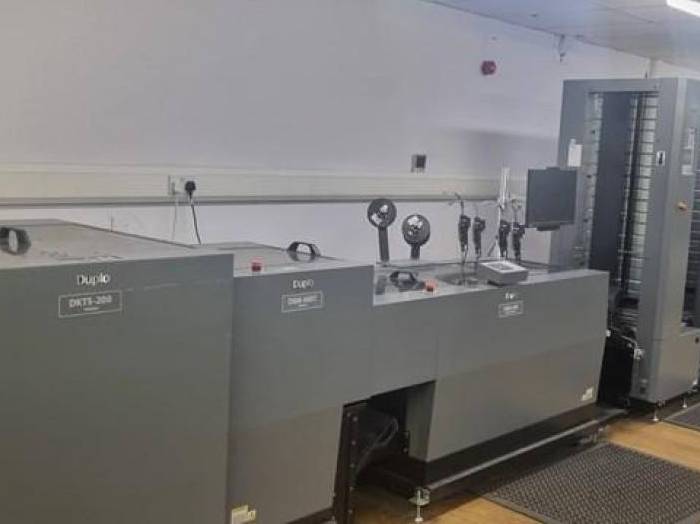

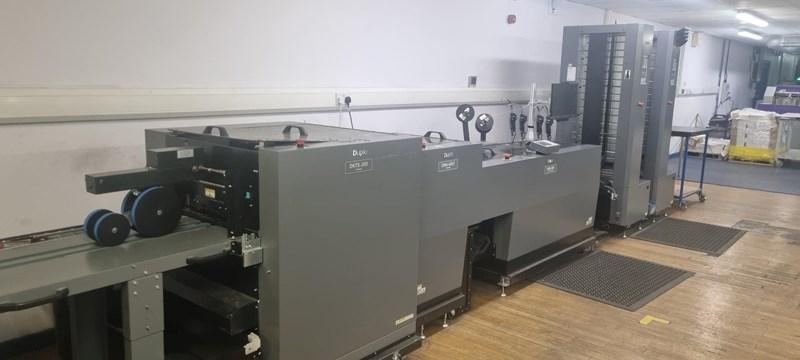

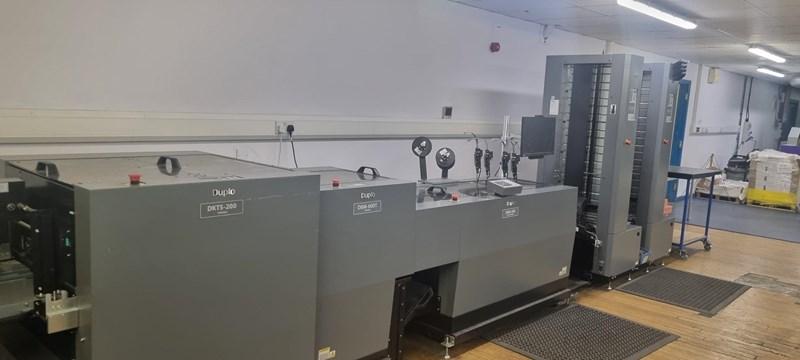

Configuration:
2 × Duplo DSC-10/60i Air Suction Collating Towers
Duplo DBM-600 Stitching and Folding Unit
Duplo DBM-600T Fore-Edge Trimmer
Duplo DKTS-200 Two-Knife / Three-Knife Trimmer
PC Control System
DSC-10/60i Air Suction Collating Towers
10 bins per tower 20 stations in total
Air suction feeding system for reliable handling of coated and digitally printed stocks
Double-sheet and miss-feed detection
Expandable system architecture
Paper Size Width: 105 – 356 mm/ Length: up to 610 mm
Paper Weight: Uncoated paper: 52 – 157 gsm / Coated paper: 79 – 157 gsm / Cover stock: up to 300 gsm
Production Speed: Up to 10,000 sets per hour
DBM-600 Stitcher/Folder
Automatic booklet making system
Saddle stitching, side stitching and corner stitching
Folding-only mode available
Automatic job set-up and changeover
Touchscreen operation
Sheet Size: Width: 105 – 364 mm/ Length: 170 – 640 mm
Paper Weight: Uncoated paper: 64 – 160 gsm/ Coated paper: 85 – 160 gsm/ Cover stock: up to 350 gsm
Capacity: Up to 50 sheets stitching capacity/ Up to 30 sheets folding capacity
Maximum booklet thickness: 5 mm
Production Speed: Up to 5,200 booklets per hour
DBM-600T Fore-Edge Trimmer
Integrated fore-edge trimming
Automatic set-up
High-speed operation matching the DBM-600
Capacity: Up to 50 sheets 80 gsm equivalent
Production Speed: Up to 5,200 booklets per hour
DKTS-200 Three-Knife Trimmer
Automated top and bottom trimming
Professional three-knife booklet finishing
Adjustable trim amount
Optional gutter-cut capability for 2-up production
Booklet Size: Width: 105 – 364 mm/Length: 75 – 320 mm
Capacity: Up to 60 sheets/ Trim Range: 1 – 30 mm
Production Speed: Up to 5,050 booklets per hour
Ideal for manuals, catalogues, magazines, brochures and commercial print production
Professional three-knife booklet finishing
Good working order
Test possible
