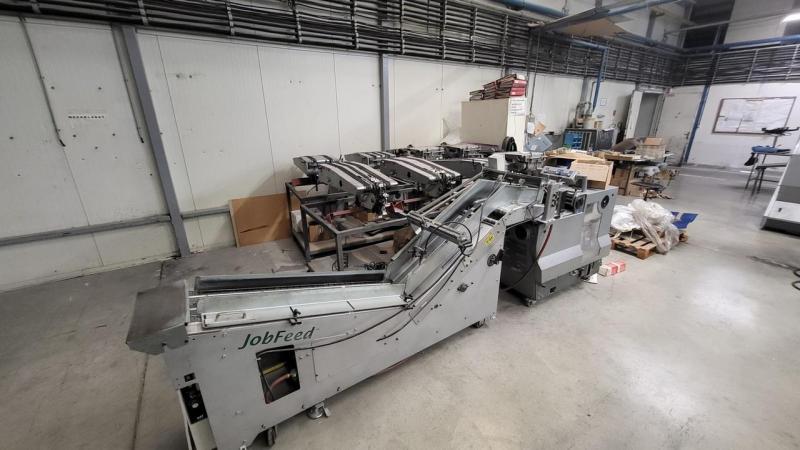

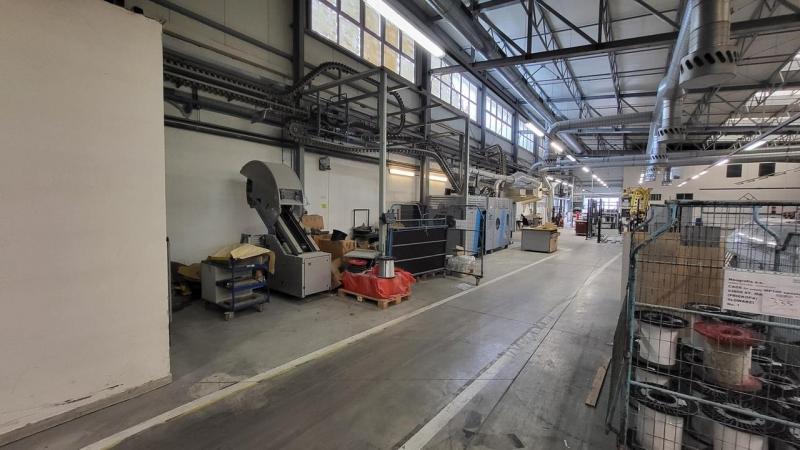

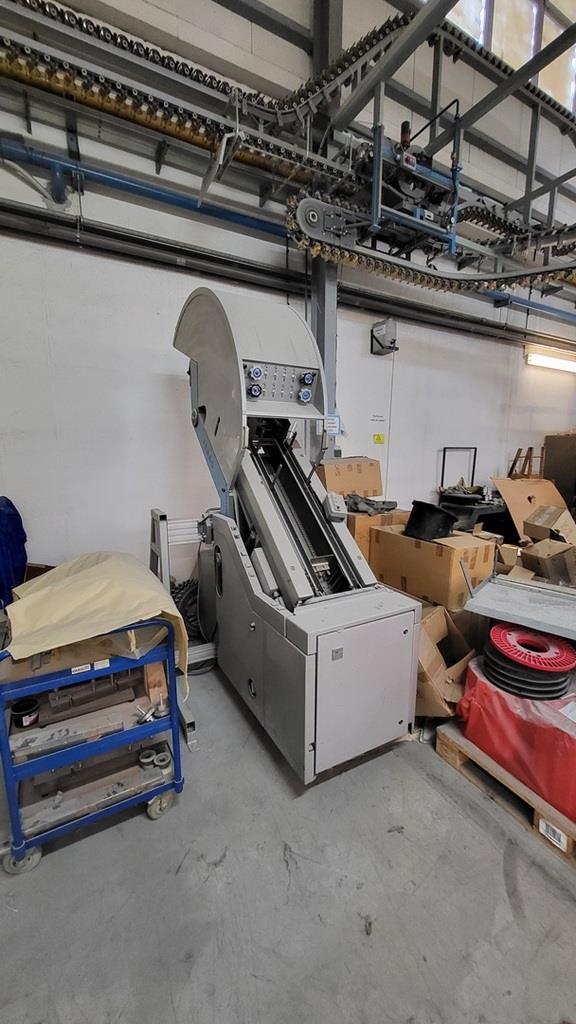

Ferag 41.85.16 (2007)

Components Machine

Current State: In production

Last update: 03-08-2026 | Viewed: 77 times - Enquiry's: 0

PD Ref: 143470

Dealer Ref.# 26543

Age: 2007
Max.Size: 34 x 31 cm (13 x 12 inch)

Important: functional- condition and wear and tear according to its age- well maintained

Technical Description:

Gross format W × H : min. 152 × 217 mm, max. 315 × 340 mm
Final format W × H : min. 148 × 210 mm, max. 300 × 332 mm
Saddle feeder: 110 × 95 to 315 × 340 mm
Gluing of single sheets only – no blocks:
55 × 85 to 280 × 200 mm and 85 × 55 mm
A credit-card-sized card can be glued either lengthwise or crosswise

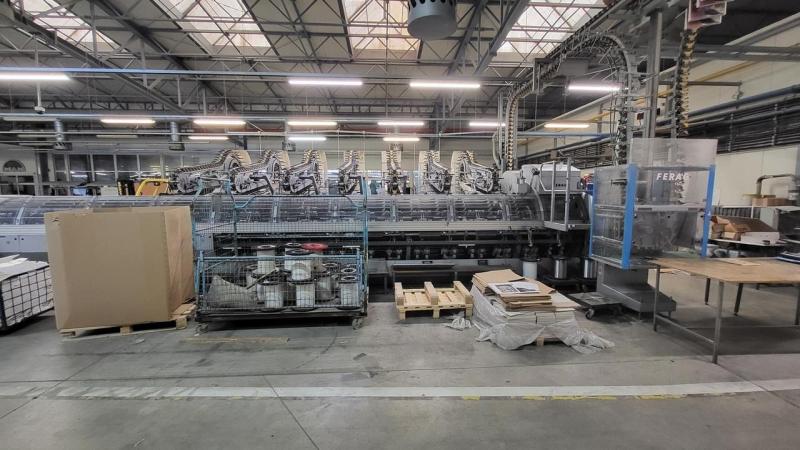

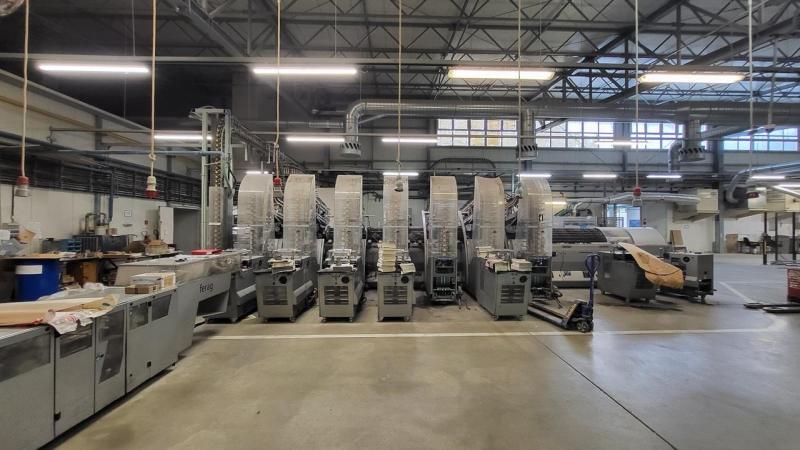

Number of gatherer stations: 8
Number of glued-sheet feeders: 1
Maximum book thickness: 5 mm
Signature lap: 8–12 mm – rear lap only
Signatures without a lap are possible, but not across the full format range
In-line trimming is not possible
Head and foot trim: 3.5–50 mm
Side trim: 3.5–50 mm
Landscape products cannot be trimmed on the three-knife trimmer
Stitches:
2 or 3 wire stitches
Stitch size: 15 mm
Maximum distance between outer stitches: 160 mm
Distance from outer stitch to center stitch: 80 mm
The stitch heads are fixed. Individual stitch heads can be disabled, while the product position can be adjusted relative to the stitches
With two stitches:
A4: upper and lower stitches are used, center stitch disabled
A5: upper and center stitches are used, lower stitch disabled
Hanger loops: not available
Cover:
The cover must be folded before feeding
It is fed from the signature feeder or by using Unicover
Paper weight A4
80–300 g/m² for uncoated papers and coated boards,
max. 255 g/m² for folding boxboard
Minimum cover weight: 10 g
Covers with the flap facing outward cannot be processed. They can only be processed with the flap inward and then manually turned over
Half cover
Fed from the signature feeder and must be pre-folded
Paper weight: 130–200 g/m²
Minimum width for A4: 110 mm
Signatures
Signature weight: 10 g

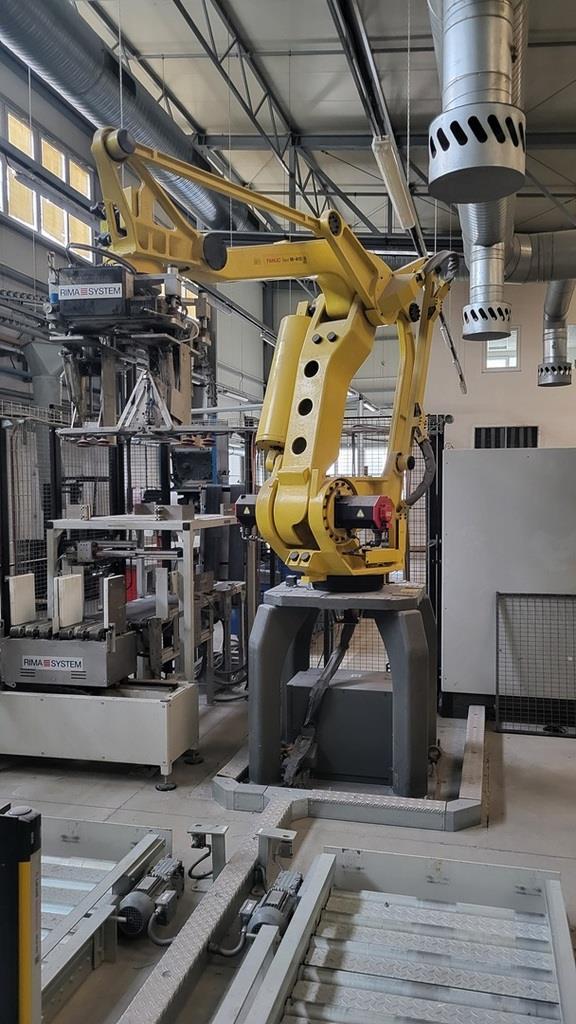

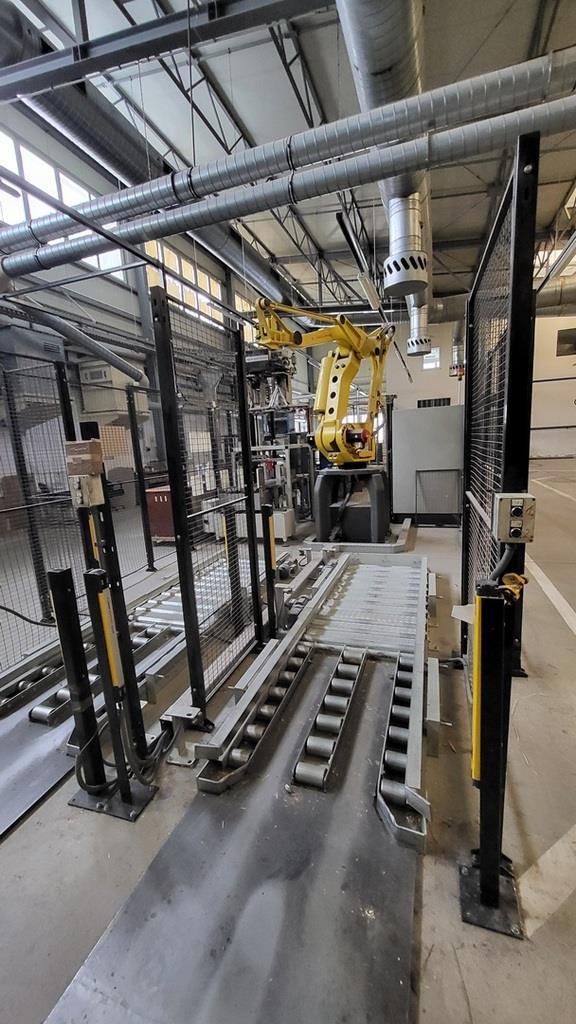

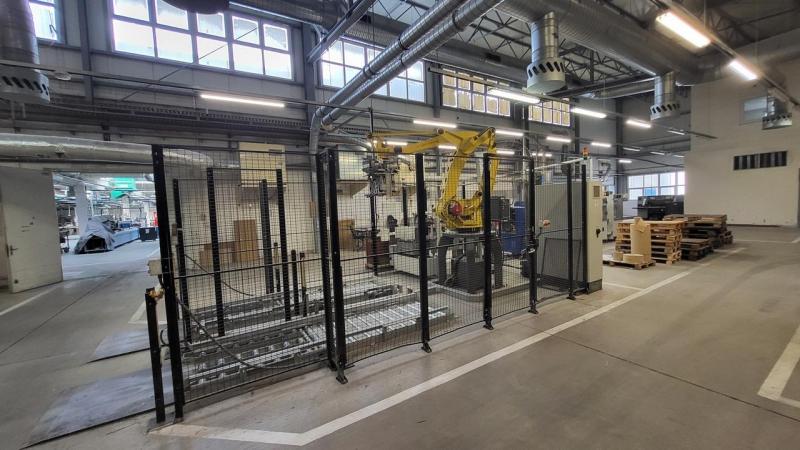

RIMA system:
RIMA machine for transporting of stacks of booklets into stackers Gross format W × H : min. 152 × 217 mm, max. 315 × 340 mm
Final format W × H : min. 148 × 210 mm, max. 300 × 332 mm
Saddle feeder: 110 × 95 to 315 × 340 mm
Gluing of single sheets only – no blocks:
55 × 85 to 280 × 200 mm and 85 × 55 mm
A credit-card-sized card can be glued either lengthwise or crosswise
Number of gatherer stations: 8
Number of glued-sheet feeders: 1
Maximum book thickness: 5 mm
Signature lap: 8–12 mm – rear lap only
Signatures without a lap are possible, but not across the full format range
In-line trimming is not possible
Head and foot trim: 3.5–50 mm
Side trim: 3.5–50 mm
Landscape products cannot be trimmed on the three-knife trimmer
Stitches:
2 or 3 wire stitches
Stitch size: 15 mm
Maximum distance between outer stitches: 160 mm
Distance from outer stitch to center stitch: 80 mm
The stitch heads are fixed. Individual stitch heads can be disabled, while the product position can be adjusted relative to the stitches
With two stitches:
A4: upper and lower stitches are used, center stitch disabled
A5: upper and center stitches are used, lower stitch disabled
Hanger loops: not available
Cover:
The cover must be folded before feeding
It is fed from the signature feeder or by using Unicover
Paper weight A4
80–300 g/m² for uncoated papers and coated boards,
max. 255 g/m² for folding boxboard
Minimum cover weight: 10 g
Covers with the flap facing outward cannot be processed. They can only be processed with the flap inward and then manually turned over
Half cover
Fed from the signature feeder and must be pre-folded
Paper weight: 130–200 g/m²
Minimum width for A4: 110 mm
Signatures
Signature weight: 10 g
RIMA system:
RIMA machine for transporting of stacks of booklets into stackers
