PD Ref: 143631
Dealer Ref.# FGT 27-165
Age: 2021Max.Size: 60 x 40 cm (23 x 15 inch)

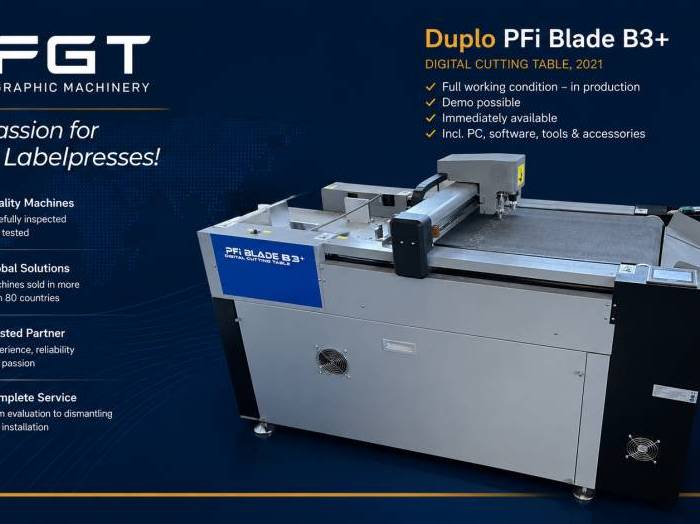

Duplo PFi Blade B3 is a compact and highly versatile digital cutting table designed for short-run and on-demand production. It combines cutting, kiss-cutting and creasing in a single operation, making it ideal for packaging prototypes, labels, greeting cards, folding cartons and digital print finishing without the need for conventional dies. Its CCD camera registration system ensures excellent accuracy, while the automatic feeder allows efficient unattended production. ________________________________________ Technical Data • Working size: 210 × 297 mm up to 400 × 600 mm • Material thickness: up to 1.3 mm • Paper weight: 120 – 400 g/m² (depending on application) • Cutting speed: up to 800 mm/sec • Cutting accuracy: ± 0.3 mm • Tungsten steel cutting blades • 3 tool heads: Cutting, Kiss-Cut and Creasing • CCD camera registration system • Automatic pile feeder with 5 combined suction heads • Feeder capacity: 100 mm • Power supply: 220 V / 50 Hz / 20 A • Connected load: 4 kW • Dimensions (L × W × H): 2,540 × 810 × 1,060 mm ________________________________________ Included Equipment • PC with monitor, keyboard and mouse • Cutting and control software • Permanent transferable software licence • CCD camera registration system • Three tool heads (Cutting, Kiss-Cut and Creasing) • Complete tool holders and accessories • Assorted spare blades • Operating manual and technical documentation • Data backup available • Separate vacuum table compressor included ________________________________________
Located: Europe Western
Available: Immediately
Phone: + 0049 711 490914-10 View Dealers Machines list
Send Email
Save
Or Call: + 0049 711 490914-10 FGT Graphic Machinery, Germany
