Horizon VAC-600Ha VAC-600Hc SPF-200a FC-200a Boo (Unkn.)

Booklet-Making Machine

Current State: In production

Last update: 15-08-2026 | Viewed: 85 times - Enquiry's: 1

PD Ref: 143784

Age: Unkn.

Latest Enquiry for this machine was from Россия.

Technical Description:

Horizon VAC-600Ha VAC-600Hc SPF-200a FC-200a Booklet Making Line
The machine is fully operational and ready for production.
Very low mileage, with only 1.3 million bindings.
This is one of the newest Horizon models.
The entire machine is set up from the control panel.
Made in Japan.

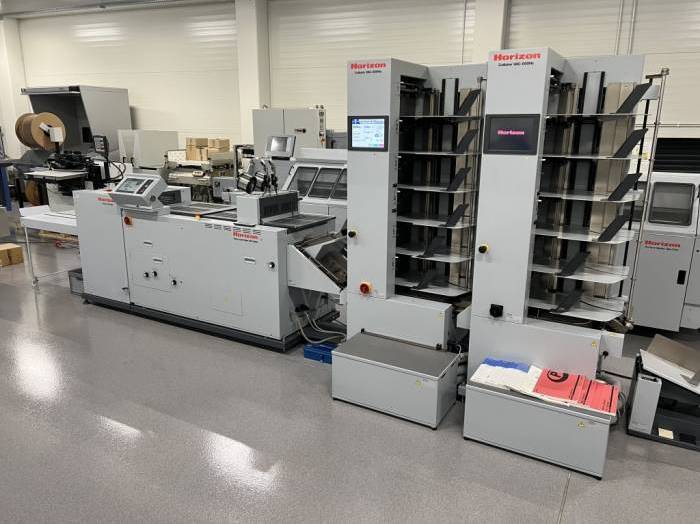

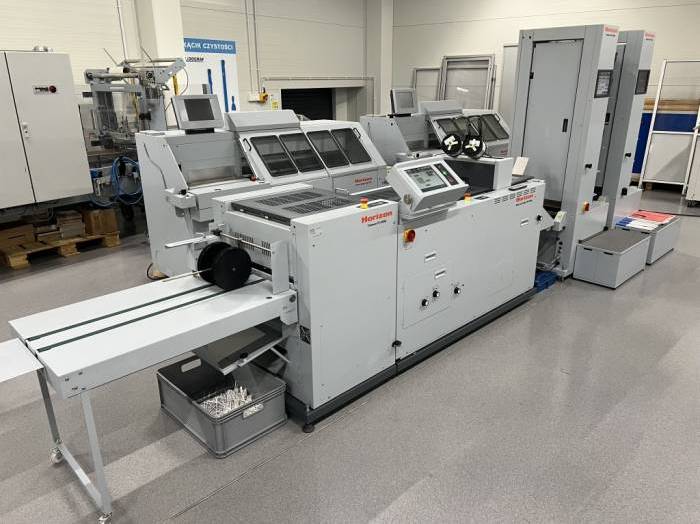

The line consists of:
Max size: 350x610mm (with shelf extension)
Min size: 120x148mm
Max speed: 9500 sets/h

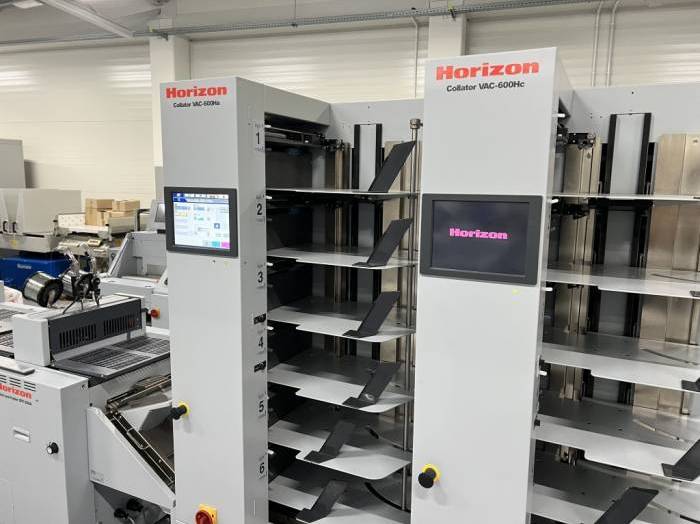

Vacuum-air feeding

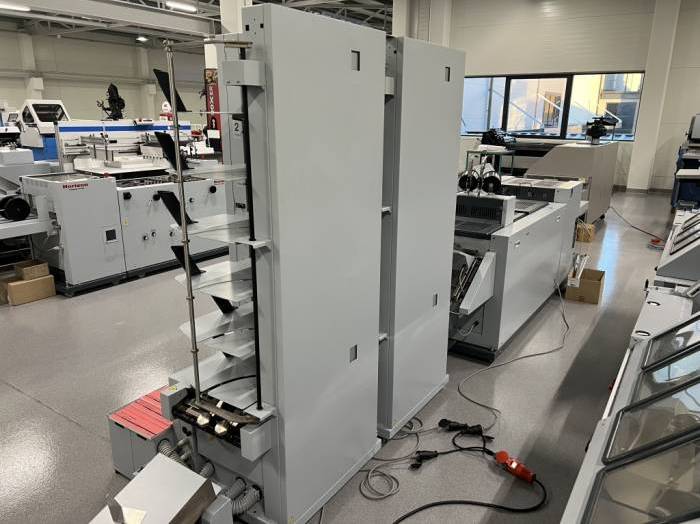

6 shelves x 2 towers. Stack height: 130mm
Weight: 40-350g
Power supply: 230V
Weight: 325kg/piece

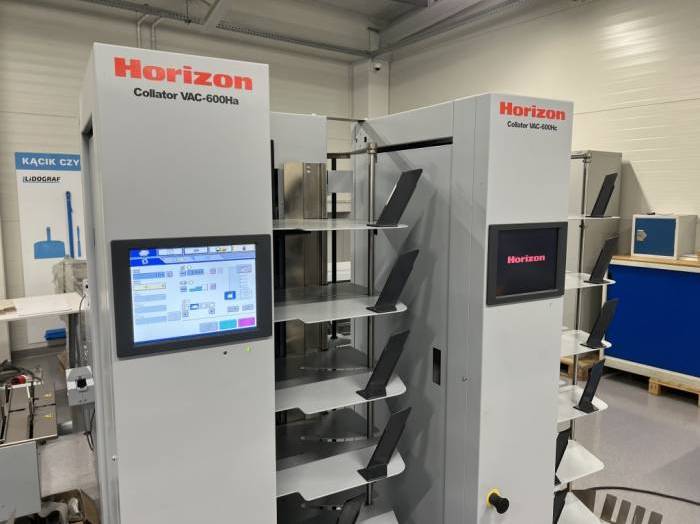

The towers are of the latest generation with new compressors (large box), a new type of photocell, and a new wireless remote control.
Controlled via a color touchscreen display and a wireless remote control. Jam, double-feed, and misfeed sensors

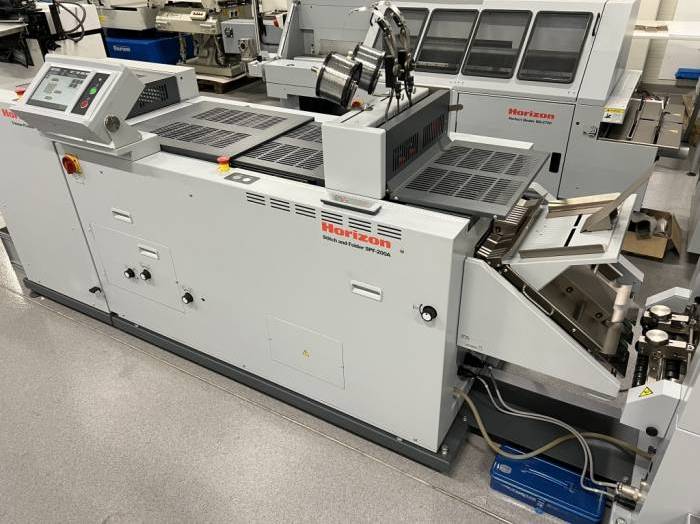

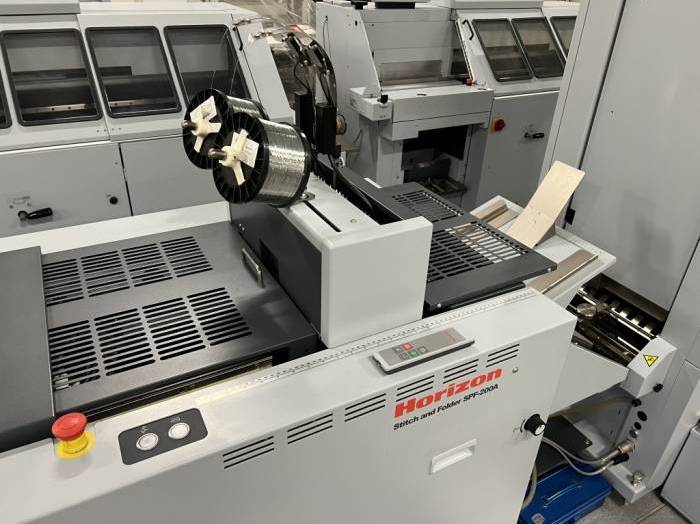

Horizon SPF-200A
10.4″ color touchscreen display
Non-stop operation thanks to the mis-collection ejection function
Max size: 508x356mm; Min size: 180x120mm
Max speed: 4500 booklets/h
Weight: 500kg
Wire stitching
Folding
Two Hohner 43/6 s heads (max. 4)
Storage capacity: up to 200 jobs in the machine’s memory.

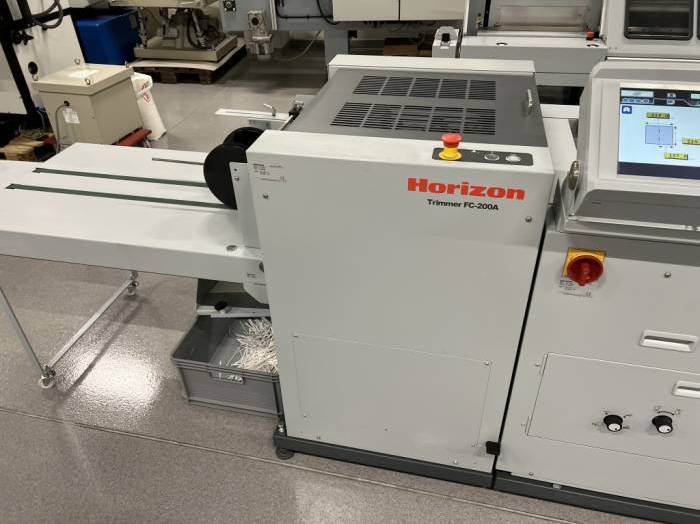

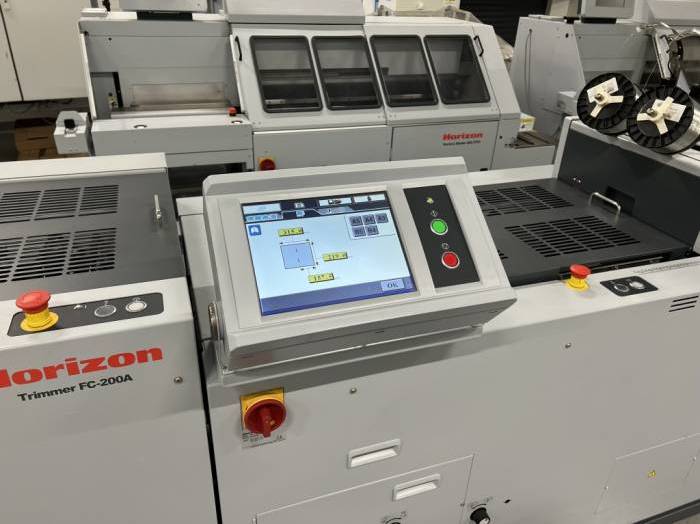

Horizon FC-200A
Cutting thickness: 4-5mm
230V power supply
Weight: 244kg

New trimmer design, stable operation with servo motors, and additional booklet guide.

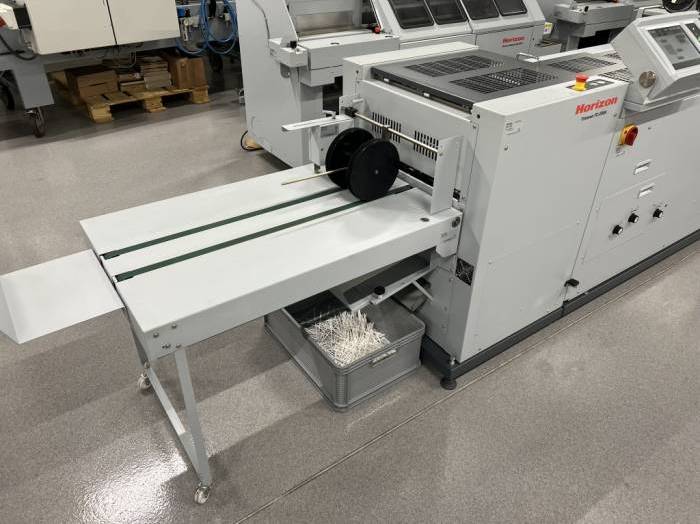

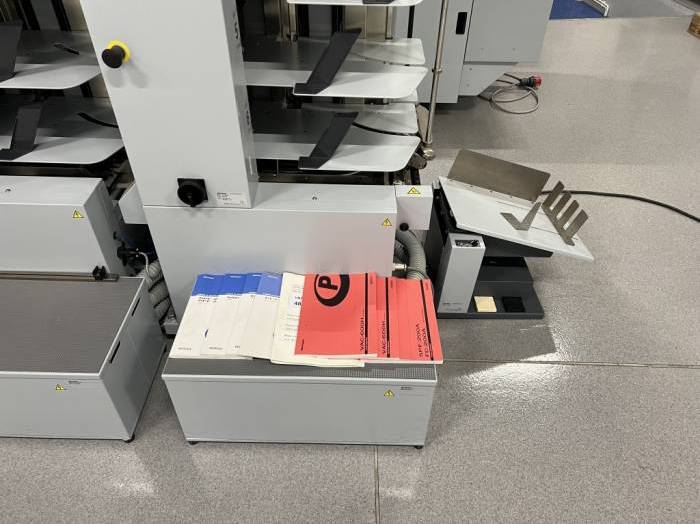

The machine includes: LC-200 delivery, PK-20 bundling device, and a jogging table. PJ-77R service tools, spare parts, documentation.
