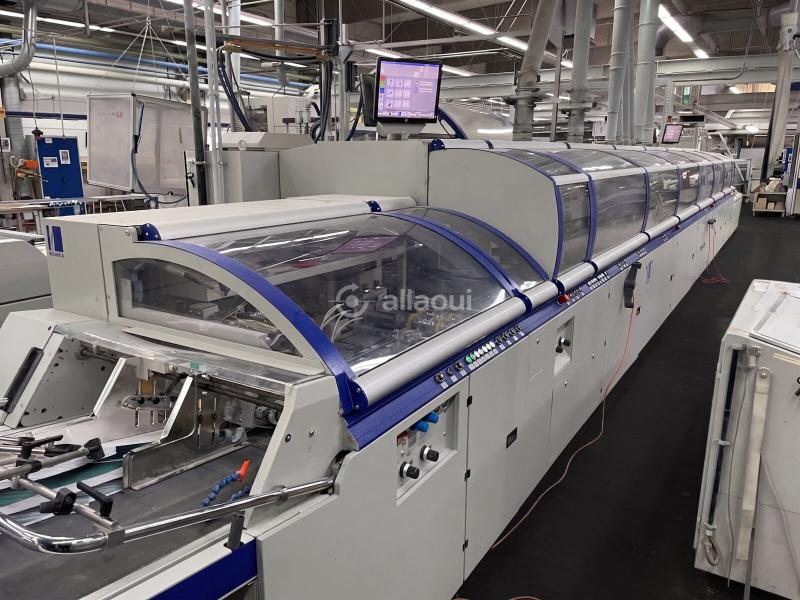

Kolbus Publica KM 412.C (2009)

---

Age: 2009
Max.Size: 42 x 32 cm (16 x 12 inch)

---

Technical Description:

15 feeder stations base frame with 12 station slots expansion by 3 stations , of which 9 are bar feeders Type STA 840 for processing pressed bar/sheet stock, 1 hand feeding station across two station slots , 2 card gluers sample gluers Type KK 841 for cards, booklets, CDs in sleeves and product samples, Automatic sheet thickness control ATC and faulty-sheet control via light barrier at each feeder, Signature recognition system SignaLynx optical image and barcode control , Reject gate Type AS 841.C for diverting faulty products, Base equipment for electrostatic restitution of bundled signatures, Device for electrostatic fixing of advertising inserts for 3 inserts , 30 transport clamps, laterally swing-open, Variable-speed, frequency-controlled drive, Copilot system with touchscreen format memory, automatic format setting, product counters , Horizontal infeed section with jogging and settling section, Spine preparation: 1 milling station, 1 equalizing milling station, 1 notching station, 1 micro-notching station, 1 brushing station, Spine gluing units: 2x EVA hotmelt mobile plus 1 exchangeable spine glue unit for PUR hotmelt, Side gluing unit: 1x EVA hotmelt mobile , IR heating in the clamp deflection area, Cover feeder Type SAL 412.C with missing/double-sheet control, Creasing station for 4-fold creasing, 2 pressing stations for pressing the cover onto the book block, Straight delivery with laydown unit plate chain, shingling function , 2x premelter Type LH 375.C EVA hotmelt, for spine glue unit, 160 l reservoir, up to 130 l/h , 1x premelter Type LH 375.A EVA hotmelt, for side glue unit, 90 l reservoir, up to 20 l/h , 1x Nordson drum melting unit Type XNO 962 PUR hotmelt, for 200 l steel drums, approx. 35 kg/h output , Approx. 80 m long, from the binder to the three-knife trimmer, with various conveyor belts, Belt control cabinet Type TS.E, frequency-controlled, Cooling tower Type XAF 661 belt width 400 mm, outer diameter 2,250 mm, 8 windings, approx. 47.45 m cooling path , Copilot system with touchscreen, automatic format setting, Gripper transport device, automatic central lubrication system, Right-hand infeed with counting stacker, 2 sets of knife cassettes, 1 set of fine-grain carbide knives, Automatic unstacking of brochures after the three-knife trimmer, Straight delivery, operator side left, Electronic pre-selection of stack formation, side jogging in the magazine, Left-hand delivery belt roller track , coupled with delivery belt Type RS 121, Stack aligner with synchronously running, vertical aligning rollers, Electrostatic blocking of product stacks e.g. paperbacks, perfect-bound magazines , Lateral pneumatic aligning plates, pneumatic pressing ram, Automatic format adjustment, 90°/180° rotary turntable, Interlayer feeder, upward-open pallet magazine, Storage capacity of 99 palletizing formations; common pallet formats up to 1,360 x 1,200 mm, Year of manufacture: 2008, Output: 16 kW, For inkjet or Cheshire labeling

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
