CMC Smart Mailer (2022)

---

Age: 2022
Max.Size: 1 x 1 cm (0 x 0 inch)

---

Technical Description:

Year: 2021/2022
Condition: very good, functional
Counter: 13M envelopes

Machine Type: Automatic mailing and fulfillment line for collating, inserting and sealing envelopes with the capability of processing rigid and thick products.

Manufacturer: CMC S.p.A., Italy
Model: CMC Smart Mailer / Rigid Mailer Special


Technical Specifications:

Maximum mechanical speed: up to 4,000 envelopes/hour
Envelope width: 250–350 mm
Envelope length: 280–350 mm (including flap)
Product thickness: min. 2 mm / max. 25 mm
Recommended envelope flap height: 50–70 mm
Configuration:

2× A15 – Electronic hopper feeders for rigid and thick products
A21F – Photocell-controlled thickness gauge
3× A14Q – Sheet feeders for inserts
SEP1 – Rotary separation disc
F15 – High-speed sheet feeder
A14_Env_L – Large envelope feeder
Vacuum Belt – Vacuum conveyor
HM1 – Automatic programmable hot-melt gluing system with 1 glue gun
RA20_i – Conveyor for collation of staggered products
PC_Add Special – Software for print verification, barcode reading and database management
2× SDC – Sound-deadening boxes for vacuum pumps
F15 High-Speed Sheet Feeder
Minimum format: 80 × 110 mm
Maximum format: 210 × 300 mm
Minimum paper weight: 70 gsm
Maximum product thickness: 2 mm
Loading capacity: up to 500 sheets
Double-sheet detection system
Brushless motor drive
A15 Hopper Feeder
Product length: 120–320 mm
Product width: 100–300 mm
Product thickness: 1–25 mm
Suitable for rigid products, stitched products and bound booklets.
A14Q Sheet Feeder
Product length: 100–210 mm
Product width: 110–300 mm
Product thickness: from 1 sheet (70 gsm) up to 4 mm
Minimum paper weight: 70 gsm
Utilities
Main power supply: 14 kW, 400 V AC, 27 A, 3-phase N PE
Auxiliary power supply: 3 kW, 230 V AC, 15 A
Compressed air: approx. 600 l/min at 6 bar
Clean, dry and oil-free compressed air required.


Machine Dimensions:

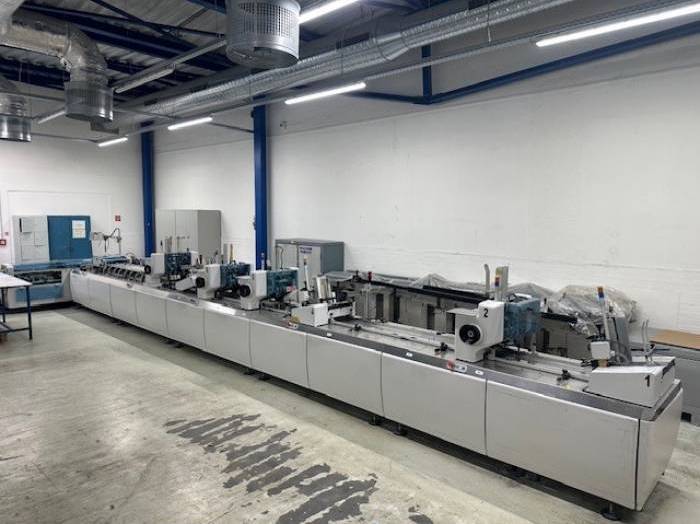

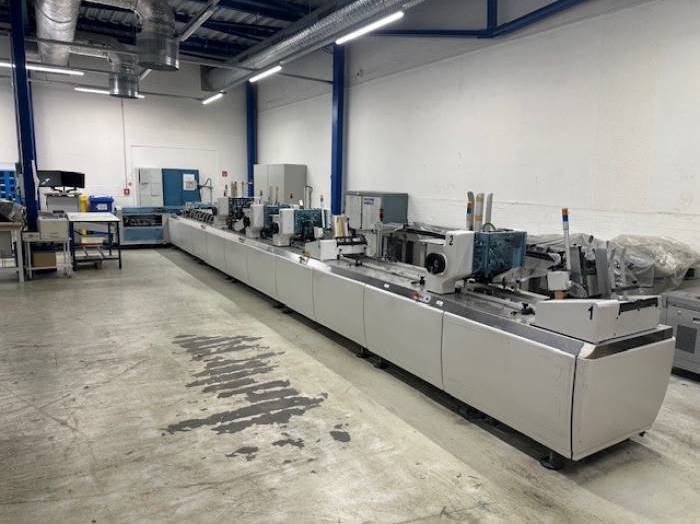

According to the machine layout, the main production line has an overall length of approximately 10,100 mm with a maximum overall width of approximately 4,300 mm. The layout is indicative and subject to final machine configuration.



Machine Description:

The CMC Smart Mailer is a high-performance automatic mailing and fulfillment system designed for collating, verifying, inserting and sealing envelopes. The machine is capable of processing single sheets, inserts, stitched brochures, bound booklets and other rigid products up to 25 mm thick.

Equipped with automatic thickness control, double-sheet detection, barcode reading, print verification, database management software and programmable hot-melt gluing, the Smart Mailer ensures maximum production efficiency, accuracy and reliability. With a mechanical speed of up to 4,000 envelopes per hour, it is an ideal solution for direct mail, transactional printing, fulfillment and document mailing applications.

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
