Horizon Stitchliner Mark III L (2020)

Saddle Stitching Machine

Current State: In production

Last update: 09-09-2026 | Viewed: 60 times - Enquiry's: 2

PD Ref: 144320

Dealer Ref.# 12105

Age: 2020
Max.Size: 50 x 35 cm (19 x 13 inch)

Latest Enquiry for this machine was from Ukraine.

Technical Description:

Stitchliner with A4 Landscape capability.
Features:
Simple, fast set-ups by non-specialist finishing operators
Works from flat-sheet 4-page sections
No need to pre-fold
Integrated automatic set-up 3-knife trimmer
High quality books with sharp spine definition
Comprising:

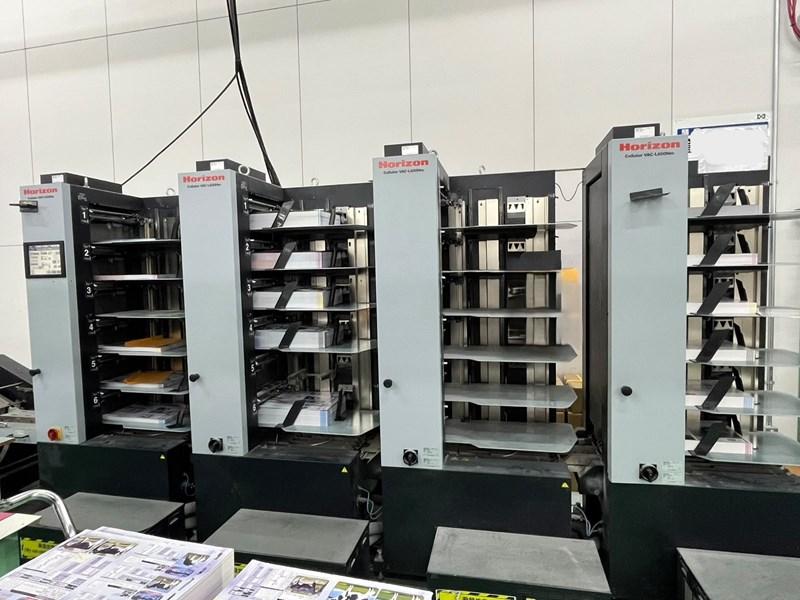

24 station 1 x VAC L600Ha 3 x VAC L600Hm 6 station tower suction collators
with touch-screen control, double- and miss-sheet control.
Accumulator/Folder ACF-40 with double gate-fold to;
SPF-40 Saddle stitcher with 2 x Hohner 43/6S stitching heads to;
HTS-40 Three knife trimmer
Specification:
Max sheet size: Portrait: 356 × 508mm
Landscape: 267 × 610mm
Min sheet size: 140 × 194mm
Finished booklet size approx :
Max: 352 × 303mm
Min: 120 × 85mm
Typical formats: A3, A4, A5, B4, B5
Paper weight: Uncoated: 52–350 gsm / Coated: 73–350gsm
Max stitch thickness: 5mm
Equivalent to ~10mm booklet thickness ~50 sheets of 80gsm
Loop stitching: Max ~3mm stitch thickness
Wire size: Typically 0.4 – 0.6mm No.24–27 range
Trim width: 2 – 25.4mm
Max trim thickness: 10mm
Max speed: Up to 6,000 booklets/hour
A4 landscape: 5,300/hour
