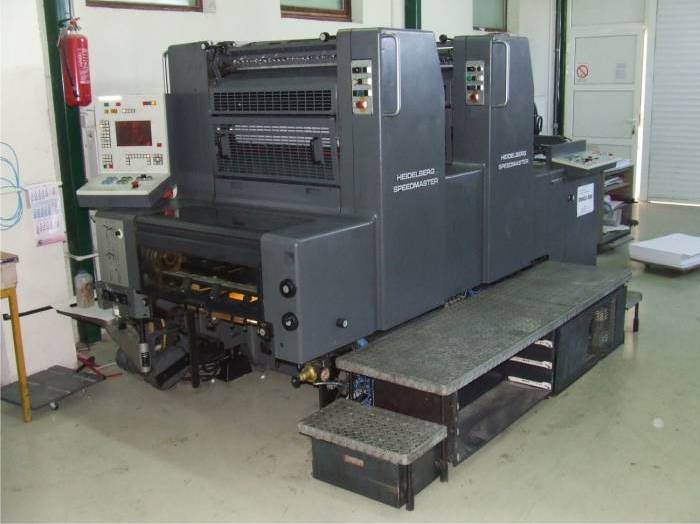

Heidelberg SM 74-2 (1994)

---

Age: 1994
Max.Size: 74 x 53 cm (29 x 20 inch)
Colors: 2
Impress.Count:99 mio

---

Extras: Autoplate

Technical Description:

Max. sheet size 530 mm x 740 mm (20.87 in x 29.13 in)
-Min. sheet size 210 mm x 280 mm (8.27 in x 11.02 in)
-Max. print format 510 mm x 740 mm (20.08 in x 29.13 in)
-Thickness 0.03 mm - 0.60 mm (0.0012 in - 0.0236 in)
-Gripper margin 8 mm - 10 mm (0.32 in - 0.39 in)
Print output
-Maximum 15,000 sph
Plate cylinder
-Cylinder undercut 0.15 mm (0.0059 in)
-Distance from lead edge of plate to lead edge of print 59.50 mm (2.34 in)
Plates
-Length x width 605 mm x 745 mm (23.82 in x 29.33 in)
-Thickness 0.25 mm - 0.30 mm (0.0098 in - 0.0118 in)
Feeder
-Electronic pull lay control
-Built-in preloading device
-Ultrasonic and electromechanical double-sheet detector
-Speed-compensated blast air
-Self-cleaning pneumatic pull lay

Printing Unit
-AutoPlate
-Alcolor dampening system
-Automatic washup devices (inking unit, blanket, impression cylinder)
-TransferJacket Blue

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
