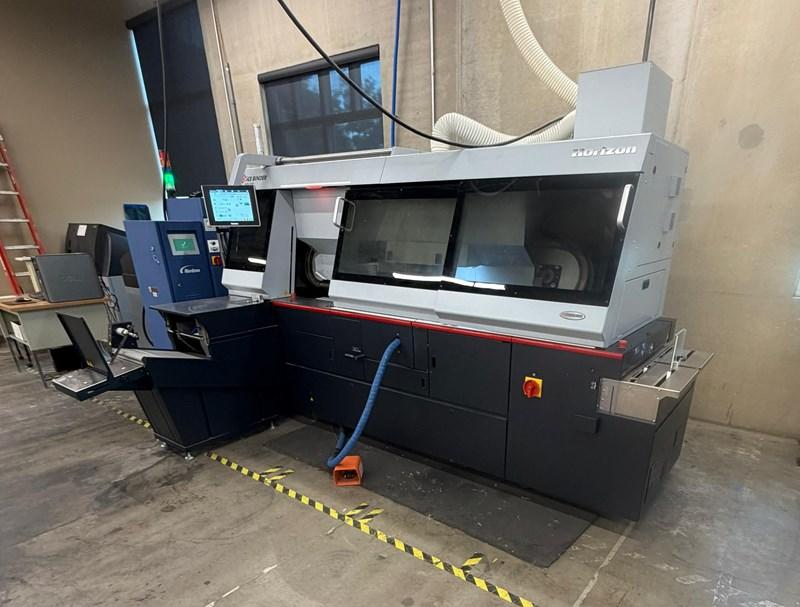

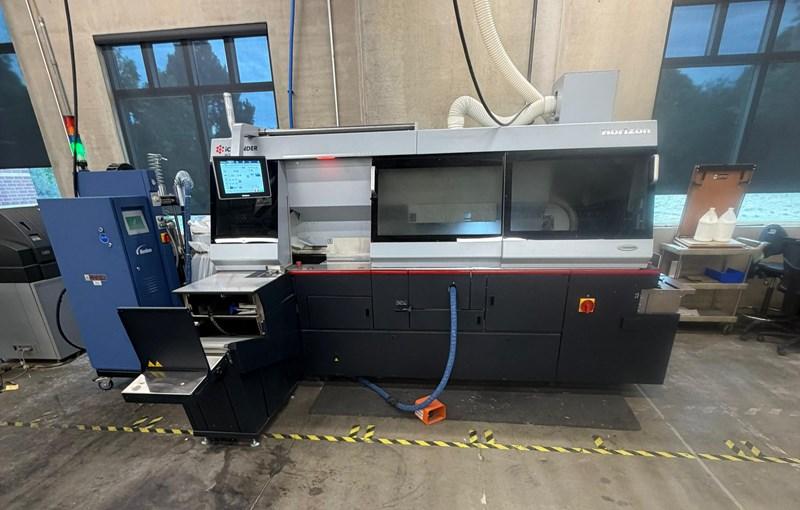

Horizon BQ-500 PUR (2024)

---

Age: 2024
Max.Size: 32 x 32 cm (12 x 12 inch)

---

Important: New

Technical Description:

<strong>Ref: 11139 . 2024 Horizon BQ-500 PUR Ice Binder</strong>
Latest model Horizon BQ binder - Like new condition! Only 68,500 books!
<strong>Comprising:</strong>
BQ-500 Ice binder with hand feed station and 4 clamps
Height adjustable LCD colour touchscreen for full automation of the following areas:
• Main clamp book width
• Milling head
• Spine glue length
• Cover size scoring
• Cover nipping unit
• Book delivery width
Milling roughing unit with dust bag extraction
PUR spine gluing tank
EVA hotmelt side gluing discs with glue length cut-off
Auto suction cover feeder with scoring and double sheet detection
Including tools manuals.
<strong>Accessories:</strong>
Auto calliper book measuring device, for quicker make-ready.
<strong>Specification:</strong>
Book size, Max: 320 x 320 mm
Min: 145 x 105 mm
Open cover size, Max: 320 x 670 mm
Min: 135 x 225 mm
Book thickness : 1 to 65 mm
Mechanical speed, Max: 1,350 cycles/hr.
Including accessories, tools manuals.

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
