Horizon SPF-20A FC-20A VAC-60Ha VAC-60Hm VAC-60Hc 20 (2005)

Booklet-Making Machine

Current State: In production

Last update: 30-09-2026 | Viewed: 22 times - Enquiry's: 0

PD Ref: 144772

Dealer Ref.# 23305

Age: 2005
Max.Size: 50 x 35 cm (19 x 13 inch)

Important: Good

Technical Description:

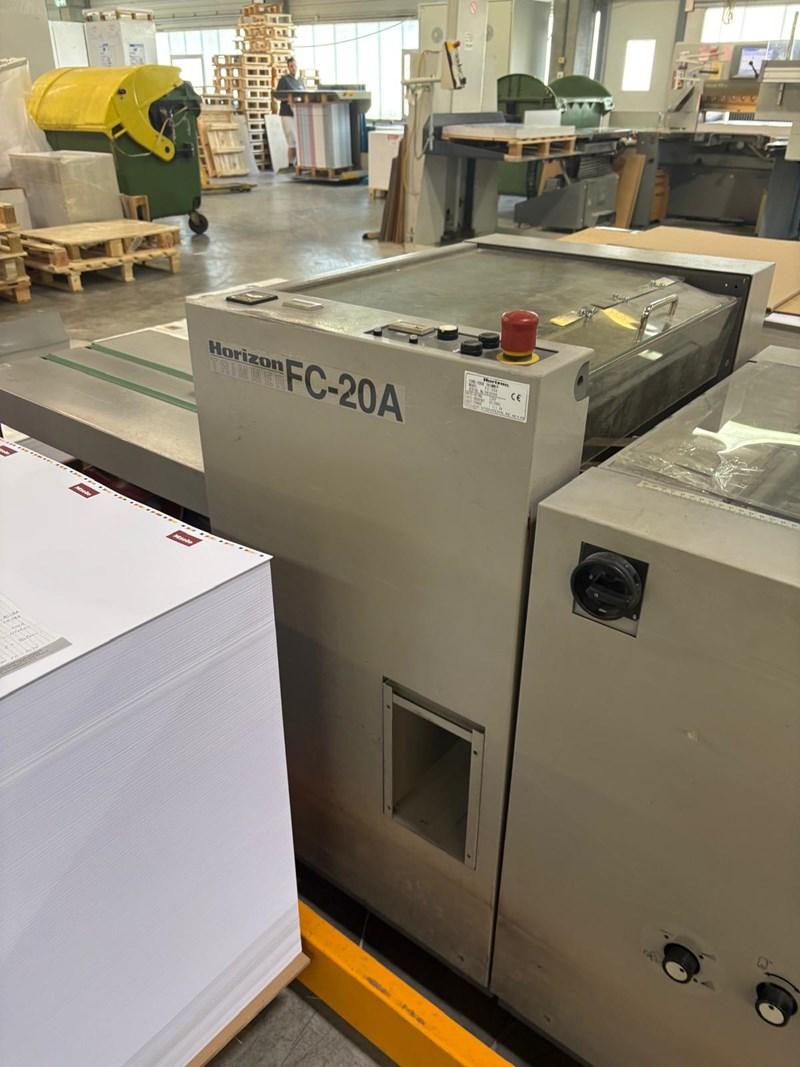

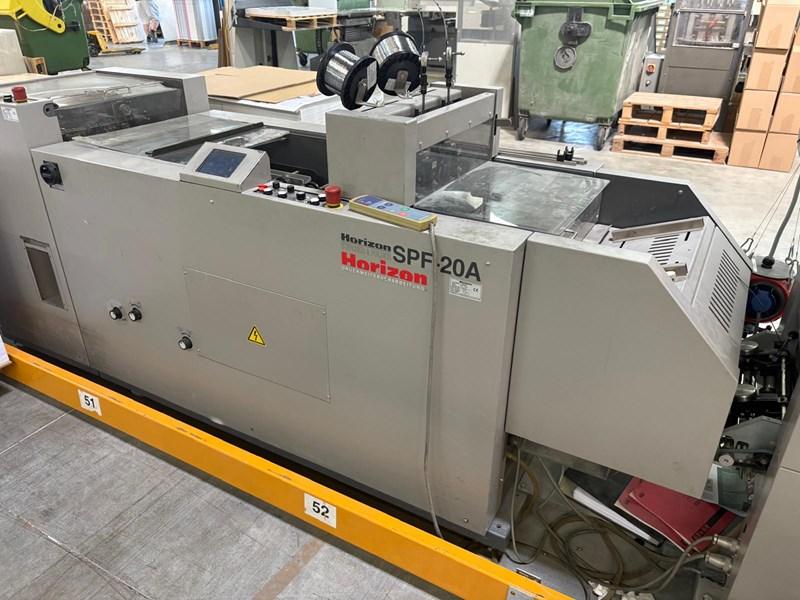

Used HORIZON Booklet Production System, consisting of collating towers VAC-60Ha, VAC-60Hm, VAC-60Hc, stitching and folding unit SPF-20A, and front trimmer FC-20A

The Horizon system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in an efficient process.

Key Features:
- Total number of collating stations: 18 6 per tower
- Versatile stitching options: Saddle, corner, and side stitching possible
- Touch Work: Intuitive operation thanks to user-friendly technology
- Programmable memory slots for repeat jobs
- Precise error control: Prevention of missing sheets, double feeds, and paper jams

Technical Specifications:
- Paper format: max. 350 x 500 mm; min. 148 x 120 mm
- Booklet format: max. 250 x 350 mm; min. 85 x 120 mm
- Paper weight: 40-300 g/m²
- Processing thickness: 2-22 sheets 80 g/m²
- Trimming thickness: 4-50 sheets 80 g/m²
- Front trim: max. 25 mm
- Production speed: max. 3,600 booklets/h
- Collating speed: up to 9,500 sets/h
- Loading capacity per station: 130 mm
- Power supply: 230V; 50Hz
- Total power consumption: approx. 2.3 kW
