Rebord Kostanza KO-SA and Bordino BO-SA (2012)

---

Age: 2012
Max.Size: 48 x 45 cm (18 x 17 inch)

---

Technical Description:

1x Rebord KOSTANZA KO from 2012 (Casing-In)
1x Rebord BORDINO BO SA from 2012 (Press & Jointing)
1x Perfecta 600 from 2012 (Endsheeter)

Speed: 2 to 3 pieces/min
Sizes: Min. 100 x 80 mm - Max. 480 x 450 mm
Block thickness: 3 to 80 mm

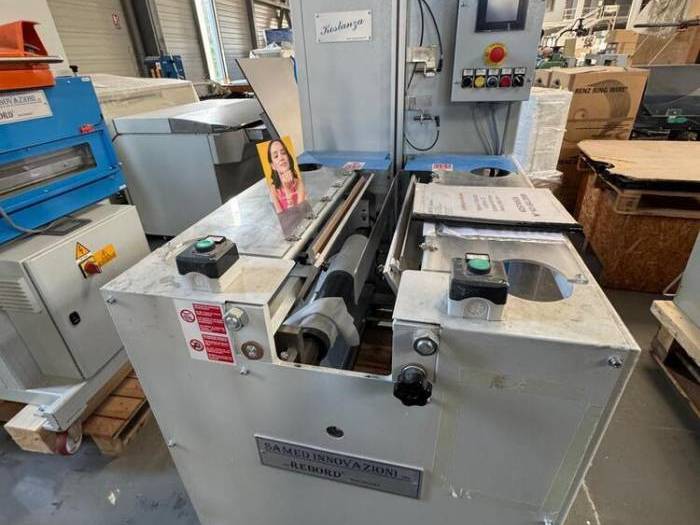

1.KOSTANZA Semi-automatic Casing Machine
Min. book size : H 10 cm W=8 cm.
Max. book size : H.48 cm W=45cm.
Production speed : approximately 200 books/hour.
Book thickness : Min: 0.5 cm – Max: 10 cm.

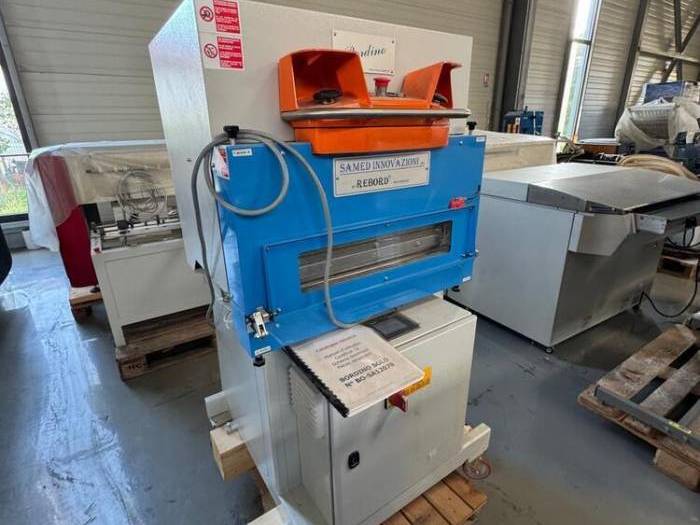

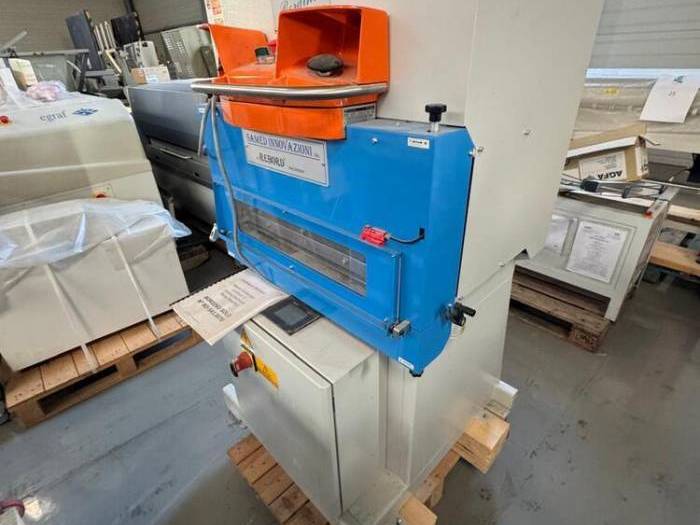

2.BORDINO Press and jointing machine
Max. book size : H = 48 x W 45 cm.
Max. Book height = 10 cm.
Max. load : 4000 kg.

Heated jointing-adjustable and independent dwell time-adjustable.
Function: Manually glues book blocks into prepared hardcover cases using cold vinylic glue (hot melt available on request).Speed & Capacity: Produces about 200 to 300 books per hour with a single operator.Format Size Range: Handles a maximum book size of 48 x 45 cm and a minimum of 10 x 8 cm, with thicknesses ranging from 0.5 cm to 10 cm.Changeover: Quick manual format adjustments taking approximately 2 minutes without mechanical tools.BORDINO Press & Jointing MachineFunction: Receives the cased book to deliver a maximum pressing pressure of 4,000 kg alongside heated, adjustable jointing/repinçage for the mors (spine joints).Speed: Changeover and adjustments take roughly 30 seconds to 2 minutes.Integration: Can be operated in tandem with the Kostanza unit—sharing a single control panel and a combined compressed air/power setup (total consumption around 100 nl/h at 6 bar and 2.5 kW)—or run completely separated with independent panels.

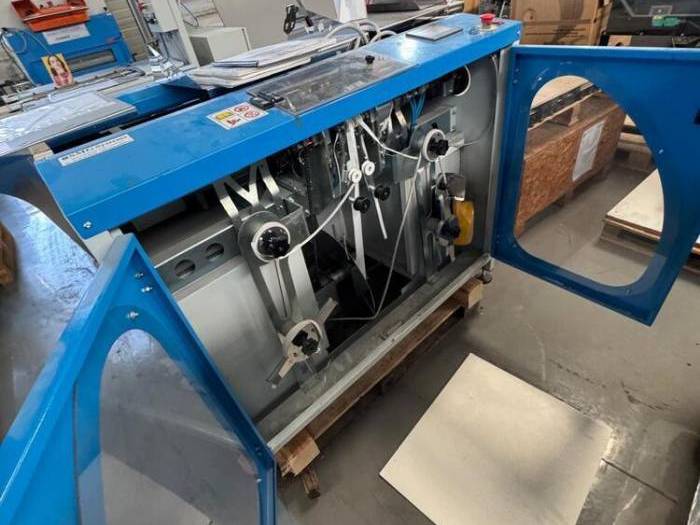

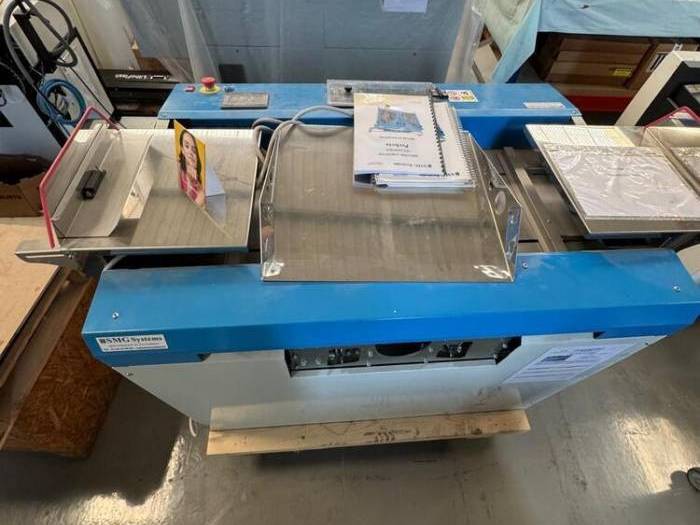

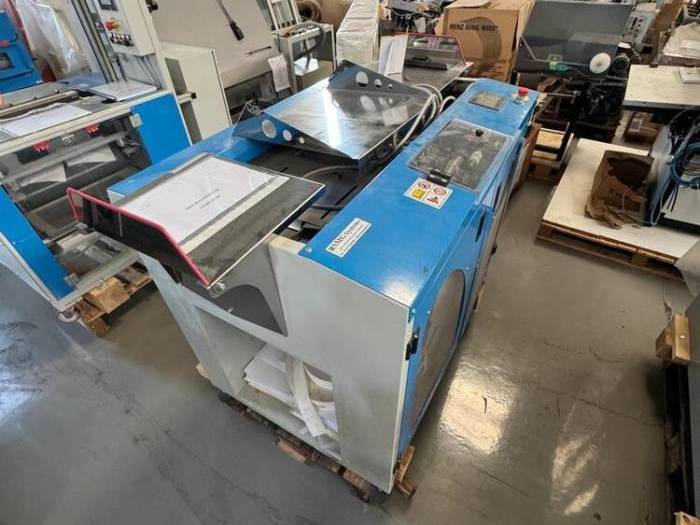

3.Perfecta 600 endsheeter machine from 2012
The PERFECTA end-sheet attaching machine is the ideal solution for producing books with genuine end-sheets and a gauze strip. This solution is particularly well-suited for print-on-demand and medium-run production.

Specifications:
- Speed: Max. 600 cycles/h
- Formats:
Height (H): 80 to 420 mm
Width (W): 205 to 800 mm (open)
Spine thickness: 5 to 70 mm
- Power supply: 0.5 kW / 230 V single-phase
- Compressed air: 20 NL / 6 bar
- Machine weight: 200 kg
Standard configuration:
- Endpaper preparation tray
- Infeed table
- Gauze roll holder
- Pressing station
- Recipe management
- Touchscreen operator interface

---

Located: Europe Western

---

---

Available: Immediately

---

---

---

---

---
