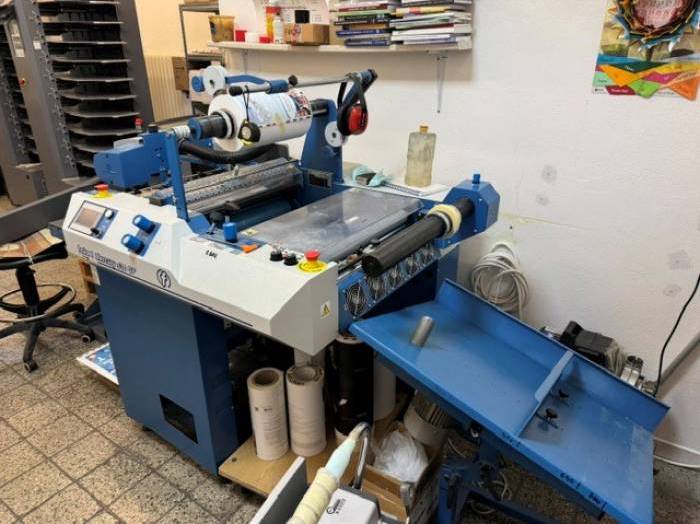

Foliant Mercury 530 SF (2017)

Laminating, coating Machine

Current State: In stock

Last update: 01-10-2026 | Viewed: 37 times - Enquiry's: 1

PD Ref: 144788

Dealer Ref.# 4048

Age: 2017
Max.Size: 76 x 53 cm (29 x 20 inch)

Latest Enquiry for this machine was from Lebanon.

Technical Description:

Year: 2017
Condition: Very good
Counter: Approx. 762,000 sheets

Configuration:

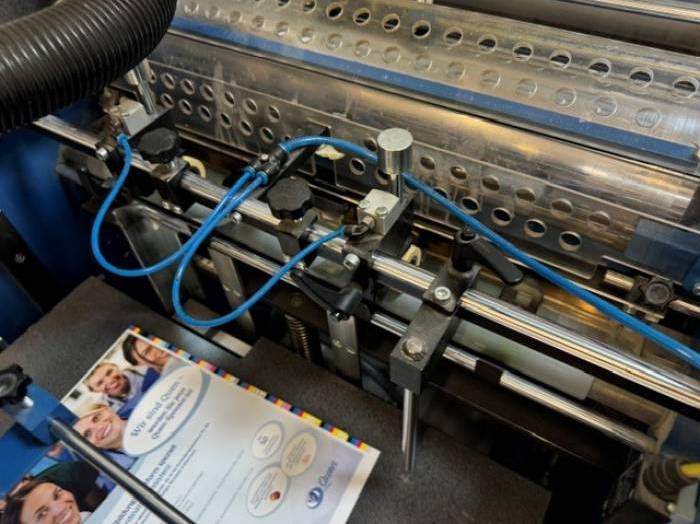

Heidelberg suction feeder head
Pneumatic pressure system
Automatic sheet separation
New Teflon-coated non-stick roller
Foiling unit for spot foil application
Vibrating jogger delivery

Technical Specifications:
Maximum laminating speed: 20 m/min
Sheet feeding: Automatic
Feeding system: Heidelberg suction feeder head
Feeder pile capacity: 540 mm
Sheet overlap control: Automatic, PLC-controlled
Overlap accuracy: ±2 mm
Sheet separation: Automatic, by cycling rollers
Paper weight: 115–500 gsm
Main roller pressure: Pneumatic
Minimum sheet size: 200 × 300 mm
Maximum sheet size: 530 × 740 mm
Maximum output: Approx. 1,650 B2 sheets/hour
Warm-up time: Approx. 8 minutes
Laminating temperature: 80–140 °C
External compressor requirement: 150 l/min, 6–8 bar
Power supply: 400 V / 50 Hz
