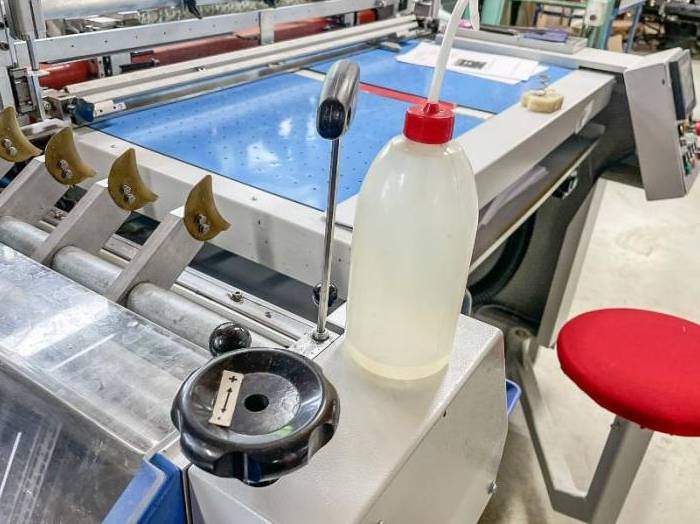

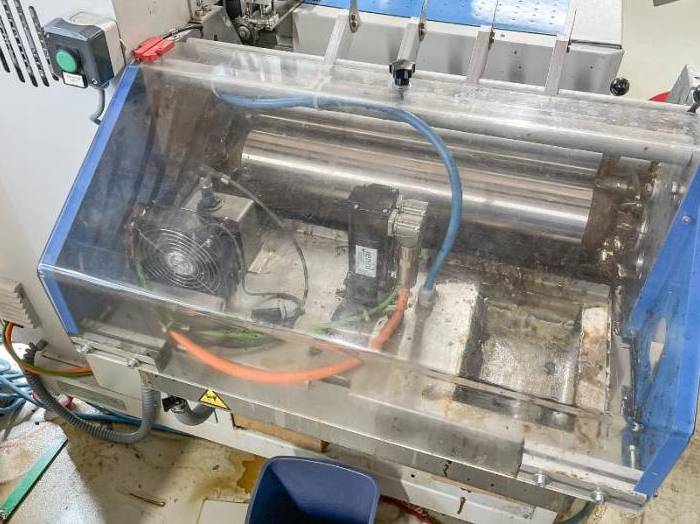

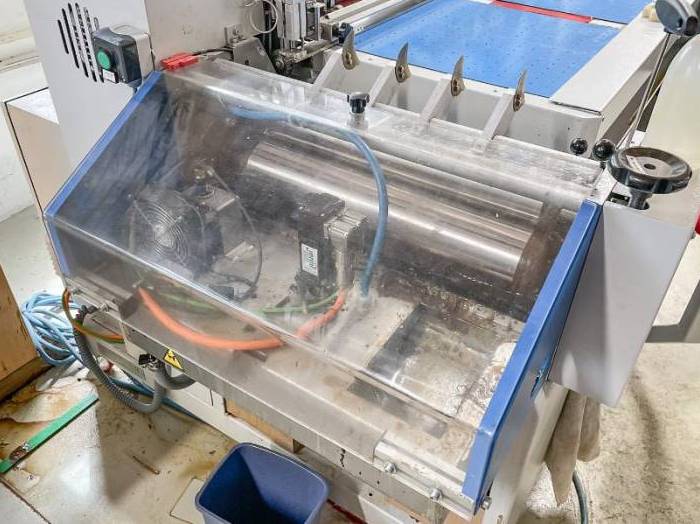

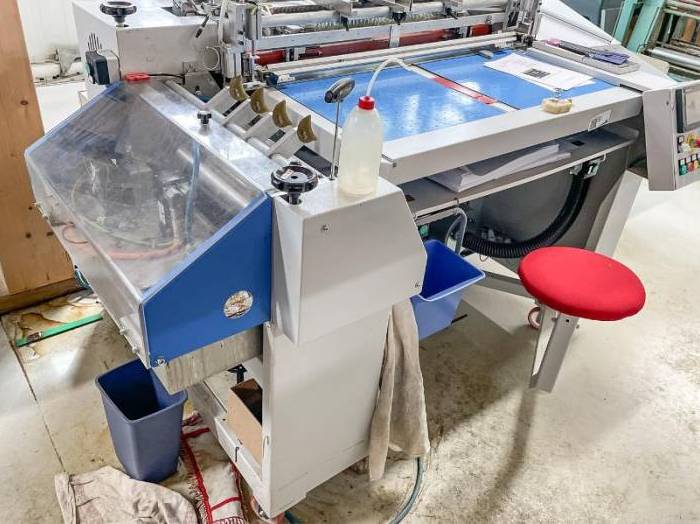

Samed - Rebord Darix Evolution (2014)

Case-Binding Machine

Current State: In production

Last update: 01-10-2026 | Viewed: 37 times - Enquiry's: 1

PD Ref: 144790

Age: 2014
Max.Size: 90 x 46 cm (35 x 18 inch)

Latest Enquiry for this machine was from Taiwan.

Technical Description:

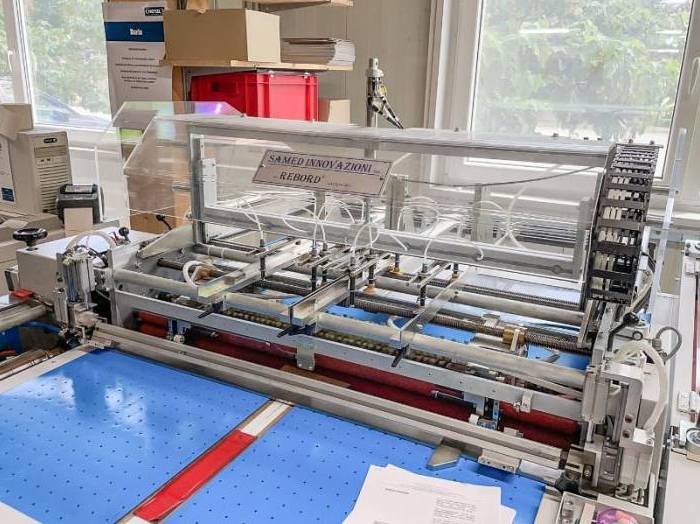

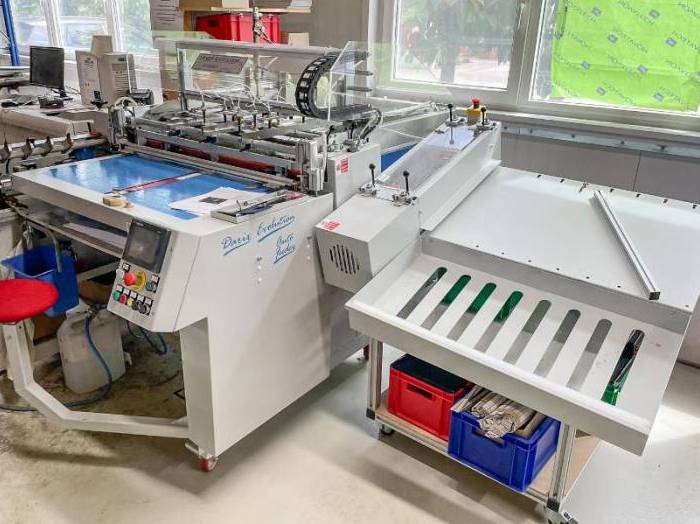

Case maker machine with automatic board feeding system suitable to run book covers or mono piece works in different sizes for Short/Medium runs.

• Minimum size (open Case) L: 190mm H: 160mm

• Maximum size (open Case) 460 x 900mm

• Minimum thickness of the board: 1,5 mm

• Spine width Min: 6 mm ; Max: 100 mm

• Overlap covering material Min: 15 mm ; Max: 30 mm

• Maximum thickness of the board 6 mm – Possibility to work Different board thickness On the same cover

• Cover material types: Textile, laminated paper, photopaper, imitation-leather, PVC polyurethane

• Cover material thickness: From 80 up to 400 g/m2

• Glue tank capacity: 5 kg Hot animal Glue (Cold glue forlining works only)

• Productivity: 4pcs/minute (as per size and operator skillfulness)
