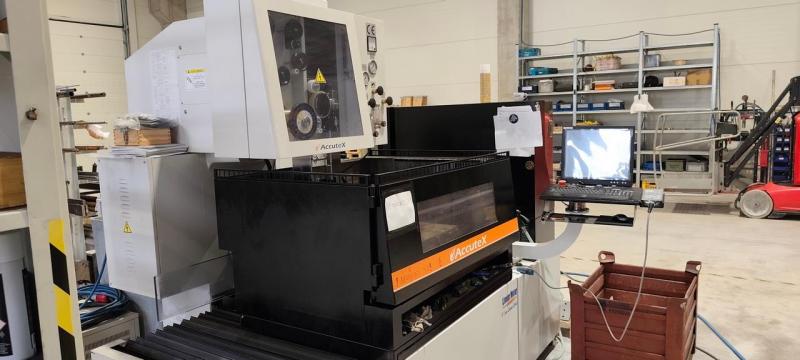

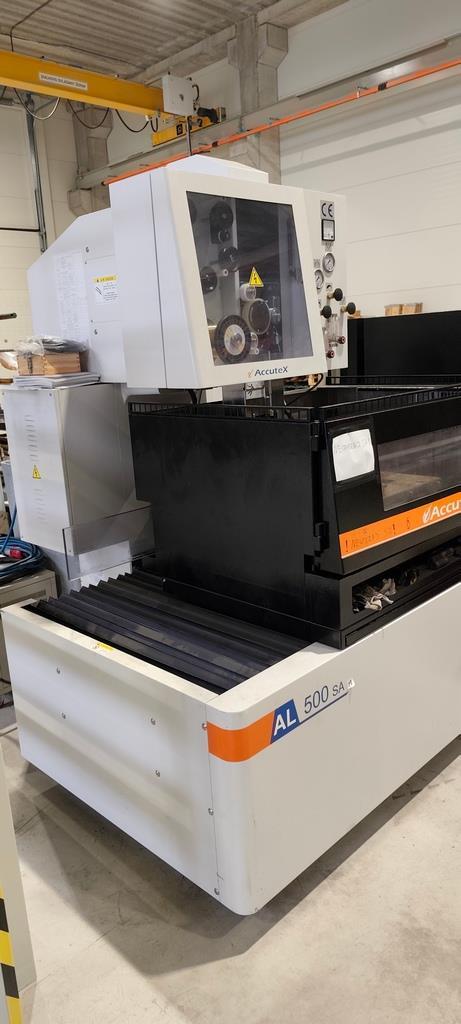

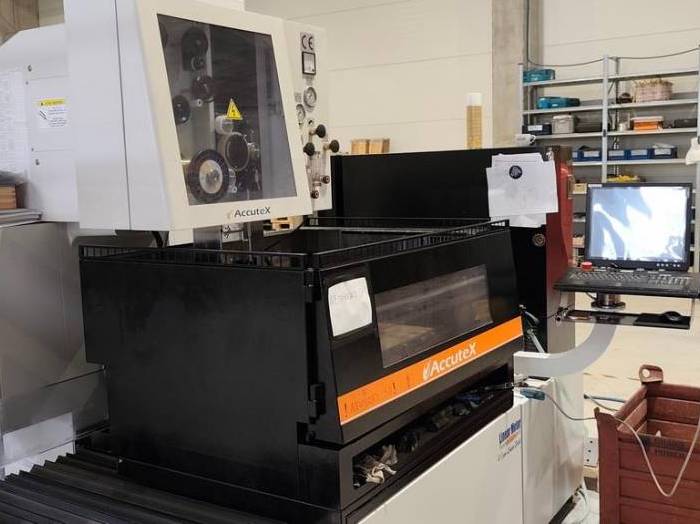

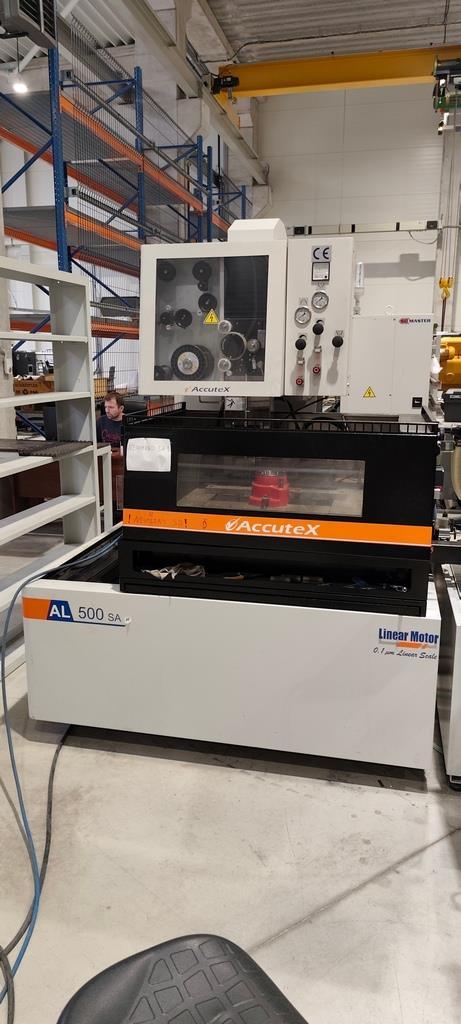

Accutex AL 500 SA (2025)

Other Misc Machine

Current State: In production

Last update: 01-10-2026 | Viewed: 31 times - Enquiry's: 0

PD Ref: 144796

Dealer Ref.# 26548

Age: 2025
Max.Size: 66 x 0 cm (25 x 0 inch)

Important: excellent machine- condition similar to new machine

Technical Description:

The AccuteX AL-500SA is a CNC wire-cut electrical discharge machine Wire Cut EDM designed for precision machining of electrically conductive materials. The machine uses linear motors on the X and Y axes, a rigid T-type machine structure, and an AccuteX CNC control based on Windows CE. Its design focuses on accuracy, discharge stability, automatic wire threading and productive machining of small to medium-sized workpieces.
Key features
64 engine hours
Linear motors on the X and Y axes, providing rapid response and eliminating conventional screw-drive backlash.
Rigid T-design machine structure with a low center of gravity for machining stability.
SD-Master stable discharge control for repeatability and stable cutting conditions.
Corner Control / Corner Pro for automatic optimization of corners, arcs and lead-in/lead-out conditions.
Automatic Wire Threading AWT , including wire-end preparation and waste-wire removal.
Workpiece thickness control and cutting-parameter optimization for varying thicknesses.
Optional MST Micro Sparking Technology for very fine surface finish.
Optional Remote Master for remote machine monitoring and optional 6th-axis rotary table.
Optional preparation for PCD and graphite machining.
Max. workpiece size 990 × 560 × 295 mm
Max. workpiece weight 500 kg in quotation / 400 kg in manufacturer brochure
X-axis travel 500 mm
Y-axis travel 300 mm
U/V-axis travel 100 × 100 mm
Z-axis stroke 300 mm
Max. taper angle ±21° / 100 mm
Applicable wire diameter 0.15–0.33 mm quotation
Max. wire spool weight 10 kg; 45 kg optional
Linear scale resolution min. 0.001 mm quotation
Machine footprint 2480 × 2980 mm
Height / overall dimension 2210 mm in brochure; quotation states machine height 3600 mm and packing height 2210 mm
Machine weight 3600 kg
Total power input 30 kVA quotation

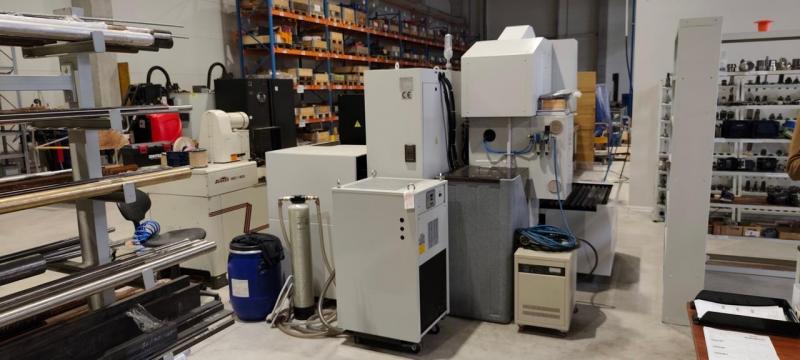

Water system capacity 900 L
Deionizer tank capacity 14.4 L quotation
Water temperature control automatic
X/Y lubrication automatic
U/V/Z lubrication manual
Control system AccuteX / Windows CE
Processor 64-bit IPC / 64-bit Industrial PC
Memory 1 GB CF Card
Display 15″ TFT touch screen in quotation / 17″ TFT touch screen in manufacturer brochure
Data interfaces keyboard, RS-232, USB, Ethernet; brochure also lists mouse pointer
Minimum programming increment 0.0001 mm
Maximum command range 9999.9999 mm
Controlled axes quotation: 4 axes / 5 with optional W; brochure: 5 axes / 6 with optional W axis
Simultaneous axes quotation: X, Y, U, V; up to 5 axes simultaneously with optional configuration The AccuteX AL-500SA is a CNC wire-cut electrical discharge machine Wire Cut EDM designed for precision machining of electrically conductive materials. The machine uses linear motors on the X and Y axes, a rigid T-type machine structure, and an AccuteX CNC control based on Windows CE. Its design focuses on accuracy, discharge stability, automatic wire threading and productive machining of small to medium-sized workpieces.
