Nagel Citoborma 490 --www.allgraphic.eu-- (Unkn.)

---

Age: Unkn.
Max.Size: 270 x 46 cm (106 x 18 inch)

---

Technical Description:

Description

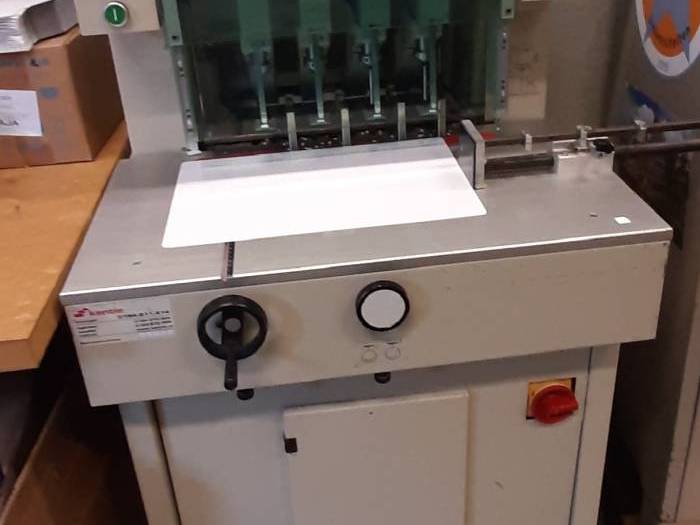

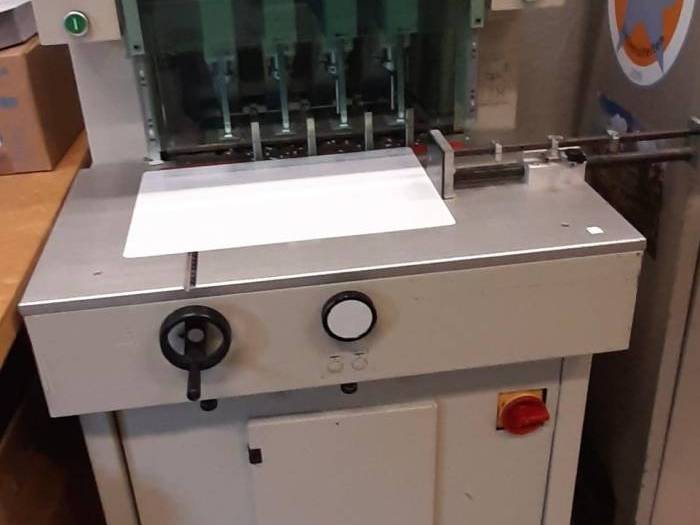

Paper drilling machine NAGEL CITOBORMA 490 on stand,

4 drill heads, paper width max. 460 mm and 270 mm throat depth for oversized paper formats,

Drill bit length adjustment within seconds,

Drill diameters from 2 - 35 mm,

Pile height max. 60 mm,

Fixing of the heads position with a single screw,

Two speed drilling,

Double stroke speed while moving the heads up for minimum drill bit wear,

Hand wheel operated back stop with millimeter scale for quick setup (guided by a twin spindle),

Table lift adjustment via hand wheel,

Programmer stops to do any hole pattern (stop bars are interchangeable by a quick release),

Optimum safety due to two-hand operation,

Reversible and safety cover,

---

Located: Europe Western

---

---

Available: 10-2026

---

---

---

---

---
