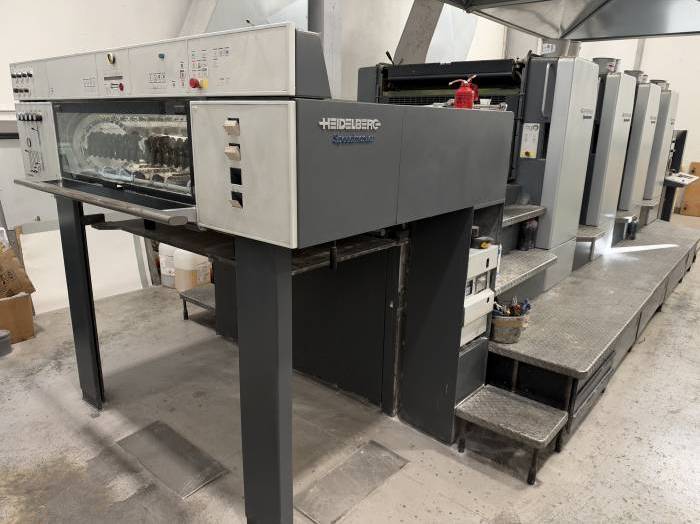

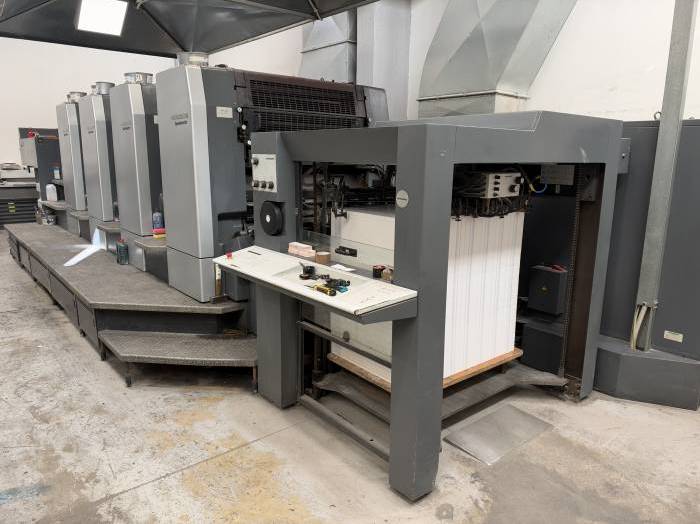

Heidelberg SM 102-4 P (2001)

Sheetfed offset Machine

Current State: In production

Last update: 11-10-2026 | Viewed: 84 times - Enquiry's: 11

PD Ref: 145015

Dealer Ref.# HDSM102-4P99

Age: 2001
Max.Size: 102 x 72 cm (40 x 28 inch)
Colors: 4

No counter

Latest Enquiry for this machine was from Lebanon.

Extras: Autoplate - Perfector - Digital Controls - Touch-screen Control - Autosize

Technical Description:

HEIDELBERG SM102-4P age 2001

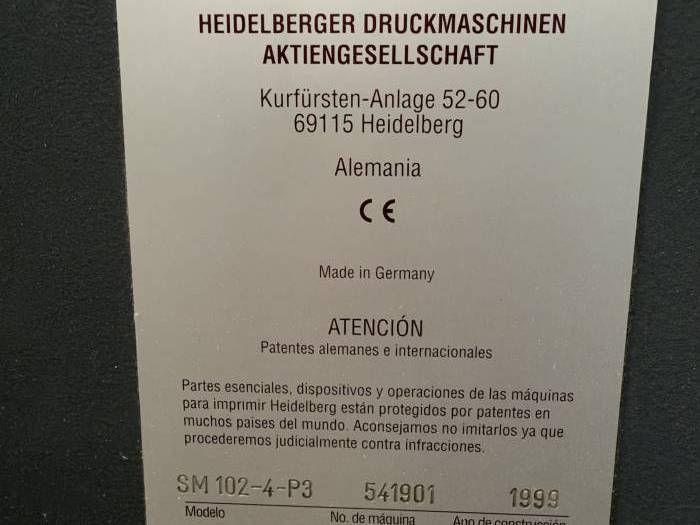

Machine no. 541.901
Total impression count 290 mio (The machine was completely rebuilt by a reputable local dealer at 137 million impressions, including the replacement of all grippers.)
Sheet-fed offset press - Printing units: 4
Perfecting 2/2 4/0
High pile delivery
Size 28 x 40 inch (720 x 1030 mm)
Technical features:
Speed 15.000 sheet/h
Max paper size 720 x 1020 mm
Min paper size 280 x 420 mm
thickness 0,04-0,4 mm
Print area size 700 x 1020 mm
Plate size 790 x 1030 mm thickness 0,30 mm
Blanket size 1045 x 790 mm thickness 1,90 mm
Dimensions:
Dimensions (LxWxH): 8,70 x 3,00 x 2,17mt.
Power Kw 71 (without dryer)
Weight 27.500 Kg.circa
Accessories included:
- Fully equipped
- Grey machine
- Steel plate on feeder and delivery with ramp (for plastic or wooden pallets)
- Stream feeder with belt
- Electronic double sheet detection
- Electromechanic double sheet detection
- Ink temperature control - Electronic side lay control, fotoelectronic and akustic
- Alcolor continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system
- Preset (autom. paper size and thickness setting)
- CP 2000 Machine control and diagnosis by plasma monitor console /self diagnostic, control and monitor console; remote inking; dampening; axial, circumferential and diagonal register control with light pen; day light illuminator and memory card for job memories)
- Programmable automatic blanket cylinders wash up via CP Tronic
- Programmable automatic rollers wash up via CP 2000
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system
- Perfecting device 2/2 4/0
- Powder sprayer device
- High pile delivery
- Automatic sheet de-curler
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories

Availability: 01.2027
Machine conditions: "as is" with no damage on cylinders and gears.
Machine can be inspected in production, nearest airport il Palermo, South Italy
