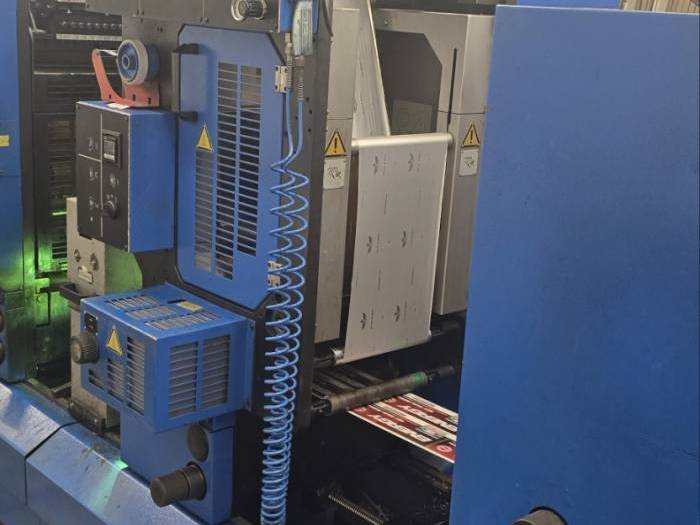

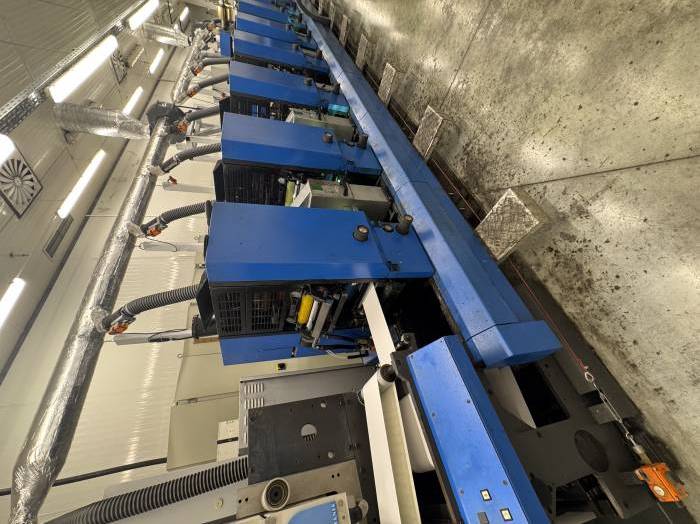

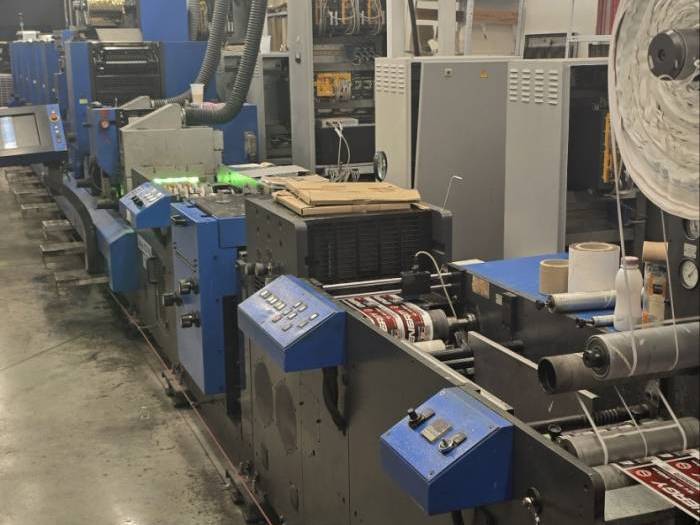

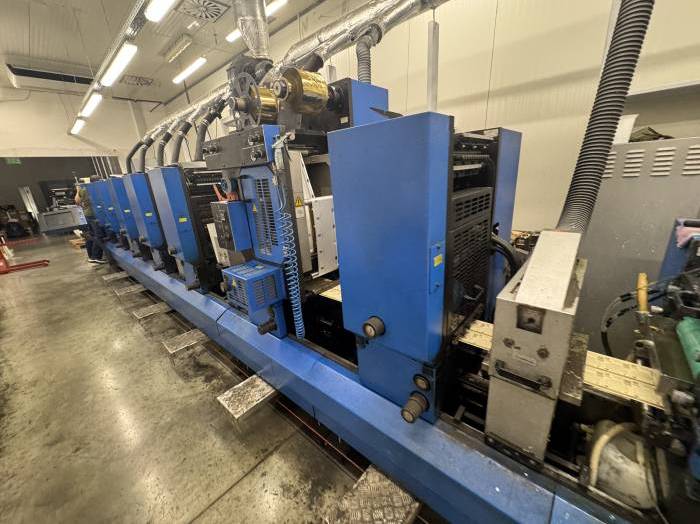

Gallus TCS 250 (2010)

Label-Printing Machine

Current State: In production

Last update: 14-10-2026 | Viewed: 6 times - Enquiry's: 0

PD Ref: 145097

Age: 2010
Max.Size: 25 x 0 cm (9 x 0 inch)
Impress.Count:18 mio

Technical Description:

Printing specifications — catalogue data for the model

Maximum print width: 254 mm.

Print length: 101.6–254 mm; maximum print format: 254 × 254 mm.

Web width: 130–265 mm.

Maximum mechanical speed: 11,000 cycles/hour; actual production speed depends on the process, format and substrate.

UV drying between printing units.

Installed configuration — information supplied by the owner

1 unwinding unit: feeds the substrate roll into the press.

7 offset printing units installed, of which 5 are currently operational. One offset unit is positioned after the hot-foil unit.

1 hot-foil stamping unit: decorative foil transfer.

1 flexographic varnishing unit: in-line varnish application.

1 embossing unit: relief finishing.

1 die-cutting unit: cuts the label shape.

1 waste-matrix removal unit: separates the surrounding waste from the labels.

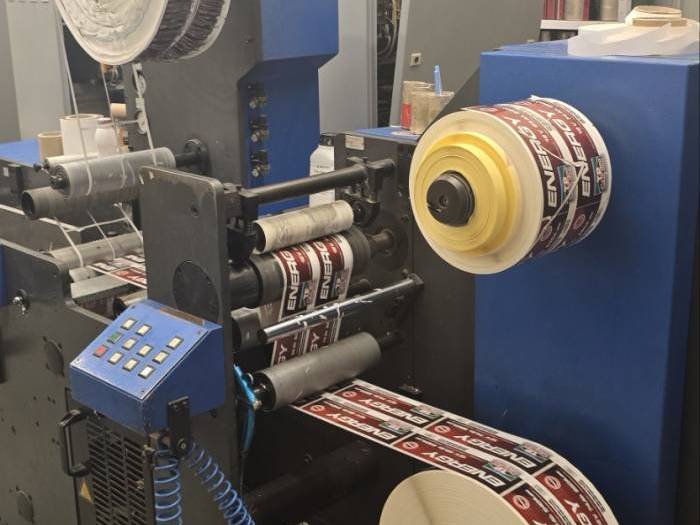

2 rewinding units: rewind the processed web.

Condition and required repairs

Two offset units are out of order. Motors for the water and ink rollers need to be sourced/ordered for both units. The main motor of one unit also needs replacement; a new replacement motor is available. Restoring operation requires installation and testing. Several refurbished electronic boards for unit positioning are also available.
