SBL 1050 SEA (2015)

Die Cutting Machine

Current State: In production

Last update: 14-10-2026 | Viewed: 2 times - Enquiry's: 0

PD Ref: 145105

Dealer Ref.# PIN02754

Age: 2015
Max.Size: 105 x 75 cm (41 x 29 inch)

Important: Good

Technical Description:

Parameter Specification
Maximum sheet size 1050 × 750 mm
Maximum die-cutting size 1040 × 730 mm
Die-cutting force 300 tonnes
Maximum speed 7,500 sheets/hour
Registration accuracy ±0.075 mm
Total power requirement 20 kVA
Machine weight Approx. 16 tonnes
Machine dimensions L × W × H 5683 × 2204 × 2132 mm

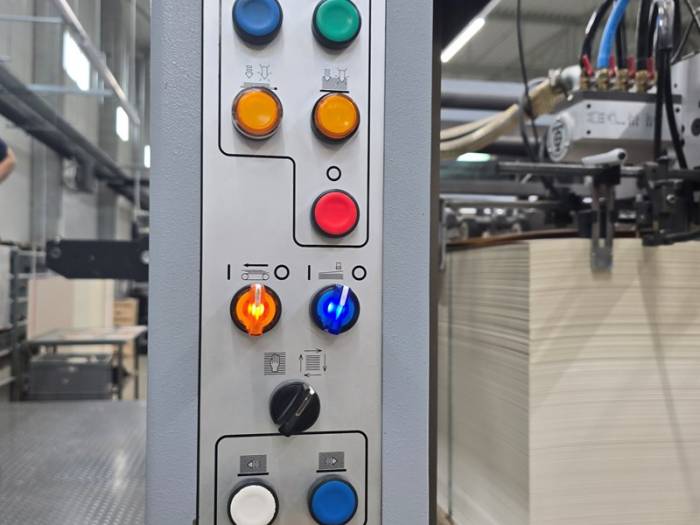

Machine Features - Automatic sheet feeder, Automatic positioning and registration control, Adjustable cutting pressure, Touchscreen control panel with diagnostic functions, Continuous operation capability with a non-stop system, Die-cutting and creasing of paper and cardboard.

Located: Europe Western

Current State: In production

Available: 10-2026

Price: On Request
