MK Masterwork Diana X 80 (2019)

Folding-Gluing Machine

Current State: In production

Last update: 18-10-2026 | Viewed: 8 times - Enquiry's: 0

PD Ref: 145204

Dealer Ref.# BR73923

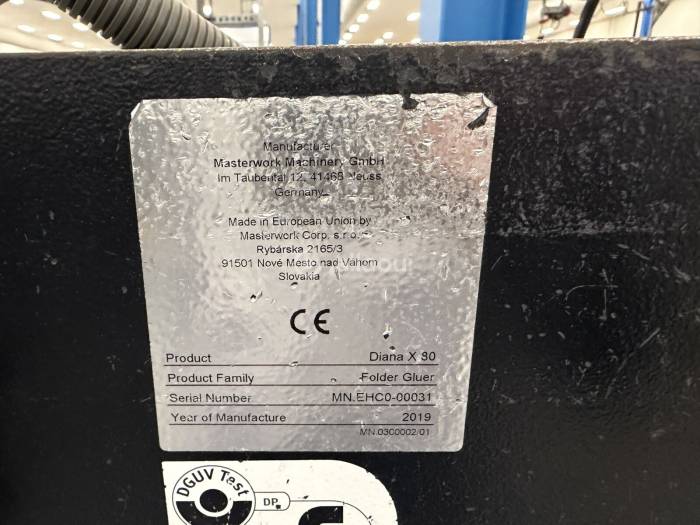

Age: 2019
Max.Size: 80 x 0 cm (31 x 0 inch)

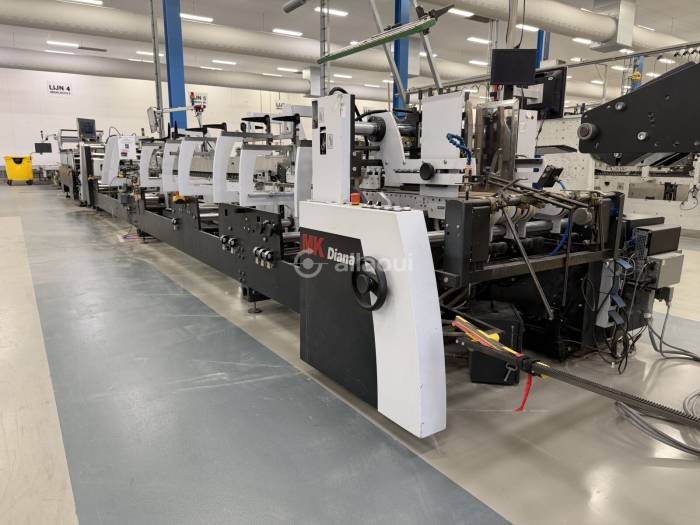

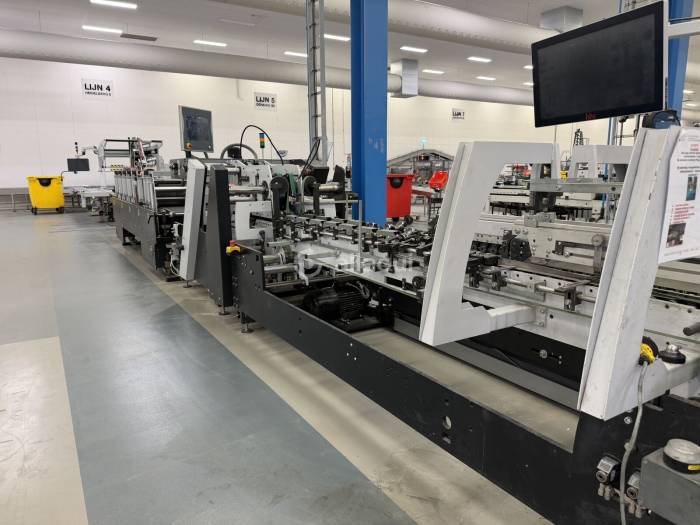

Important: The Heidelberg MK Diana X 80- built in 2019- is a pure straight-line folder gluer for blank widths up to 800 mm- running at up to 450 m min. Digiset keeps makeready times short.The equipment includes the MK Diana Feeder and vacuum feeder with blank alignment and additional belt conveyor- a glue wheel unit with glue wheel monitoring- a lower gluing unit with refill pump system- the Baumer HHS Xtend 3 nozzle gluing system- a left-right turner as well as barcode reader and flipper for ejecting faulty boxes. The pressing belt delivery transfers to the MK Diana Packer.

Technical Description:

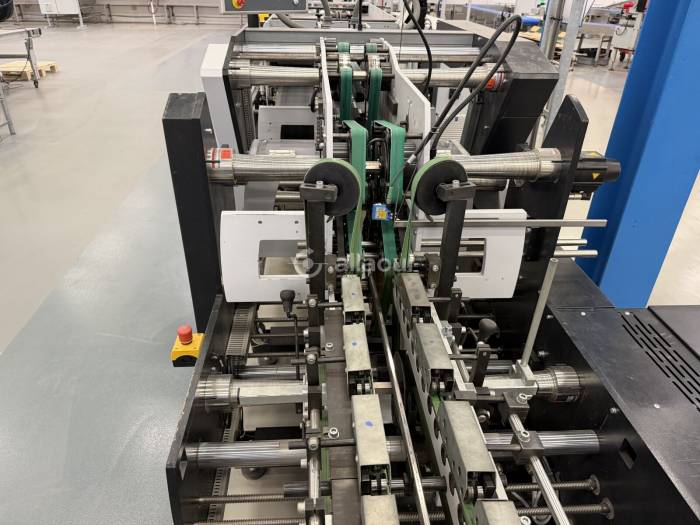

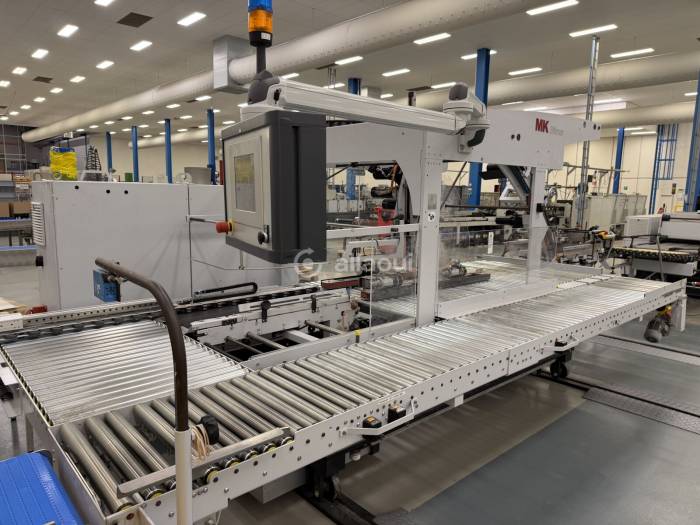

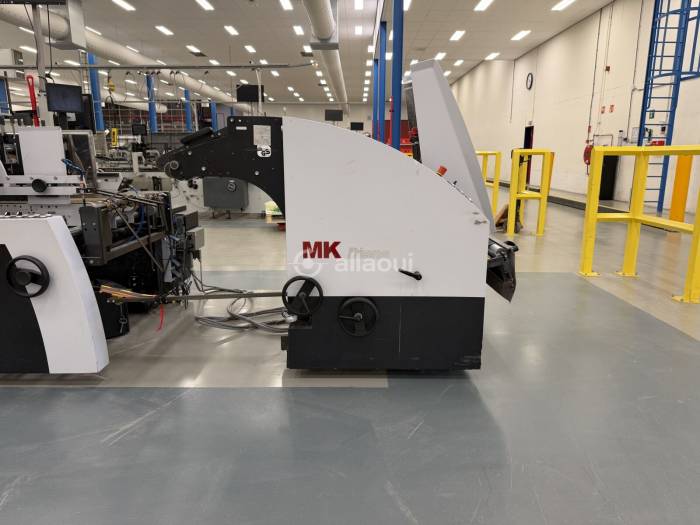

MK Diana Feeder, Vacuum feeder, Blank alignment with additional belt conveyor, Working width 900 mm, High stack wall, Configuration: straight-line machine only, Left-right turner, Pre-breaking station, length 3,470 mm, incl. pre-break units R1 and R3, Additional upper roller rail rear right in pre-breaking station, Glue wheel unit, Glue wheel monitoring, Lower gluing unit with refill pump system, Baumer HHS Xtend 3 nozzle glue application with glue monitoring , Barcode reader, Flipper for ejection of faulty boxes, Blank ejection module, length 600 mm, Separating air for blank stack, Digiset, quick makeready system, Video monitoring of transfer station with monitor at feeder, Comfort package for simplified operation, Pressing belt delivery, Right-hand box turning station for packing on crease line 2, Left-hand box turning station for packing on crease line 4, Device for packing on front closure flaps, Lateral shifting device Japack Pro , ACC access control rear and side operator access, automatic discharge A B , Deposit aid for right and left turning stations small boxes , Additional control button bar, Trip protection for lateral shifting rails, Partially automatic sample removal

Located: Europe Western

Current State: In production

Available: Immediately

Price: On Request
