Master BAG 400 ()

Press Machine

Current State: In stock

Last update: 10-04-2020 | Viewed: 5396 times - Enquiry's: 48

PD Ref: 51893

Dealer Ref.# 49779

Age:
Max.Size: 120 x 60 cm (47 x 23 inch)

Extras: - Touch-screen Control

Important: Paper bag making

Technical Description:

Paper bag making is a small scale business option that has huge potential to grow further and make you successful owner of a Green business

Machine is made of rigid and Robust Construction in one of best engineering company
Operation and adjustment Very Simple and Quick So That Even an unskilled Labor Can Easily Operate the Machine Successfully.
The Change of Size is Very Easy and can be done in Few Minutes Time. The Machine is supplied with
Width Plate: 7 - 8 - 12 - 15 - 20 - 25 - 30 / cm or any size based on request
Printing cylinders : 22 - 27 - 30 -35 / cm or any size based on request
Lengths gear: 22 - 27 - 30 - 35 / cm or any size based on request
• Sturdy construction ensure less vibration The machine vibrates less and produces less noise to ensure high stability.
• Machine is certified for safety and quality so that there are no chances of industrial downtime.
• Arranged papers make the operation and adjustment very easy & quick
• Changeable with any desired size
• High speed and accurate discharge of bags
• Finest quality output
• Saves electricity and lowers operational cost

Bag Formation:

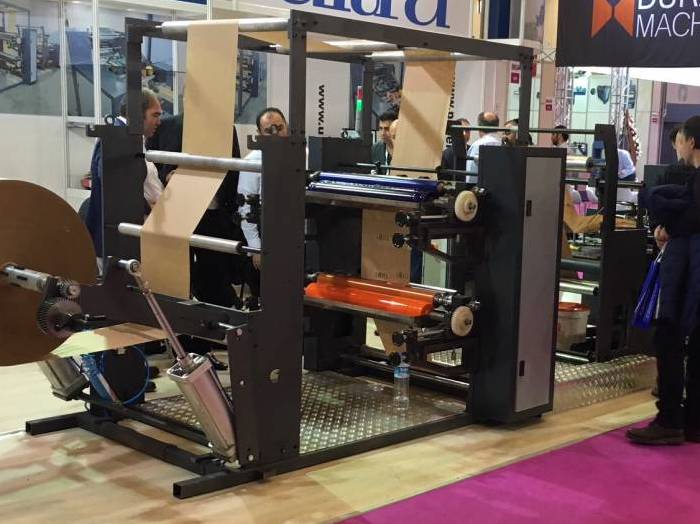

• Printing Attachment: Owing to the latest technology FLEXO printer can be upgraded any time main body prepared till four color , easily be coupled with the Paper bag making machine
* It is an integrated system enabling to make printing with
intrinsic accuracy and it is fairly easy to use.
* IR 90 Ink Rollers / ANILOX / diameter 1200 mm
* The maximum coil diameter: 500-1200 mm
* Max Inside the main coil Diameter: 76 mm
* Stop automatically when paper run out.

DETAILS OF PAPER BAGS:
* Bag length (mm) 150 - 600
* Bag Width （mm） 80- 300
* Bag Side Width （mm）25 - 100
* Paper Roll Width (mm) 280-960
* Maximum Speed (bag/min.) for smaller bags 400 pcs / min & for longer bags 200 pcs / min
ROLL DETAILS:
* Maximum Paper Roll Width (mm) 1200
* Paper Gram Weight (g/㎡) 35 - 70
* Max roll weight 600 kg
* Pneumatic mechanical core shafts
OTHER DETAILS:
* Hydraulic roll lifting
* Mechanical brake
* Speed Adjustment is done over Control Panel

* Bottom Adjustment Package
* Painted by water and corrosion resistant two-component epoxy primer and paint
* 5 KW AC Motor.
* 7" Display for speed and quantity control (PLC based)
SIZE OF MACHINE:
* Size of machine 7750 x 2000 mm h: 2000 mm
* Weight : 3,650.- kg
