Kolbus DA 270 Bookjet Edition (2017)

---

Age: 2017
Dim.maxi: 67 x 39 cm (26 x 15 inch)

---

Important: as is

Description:

Case maker

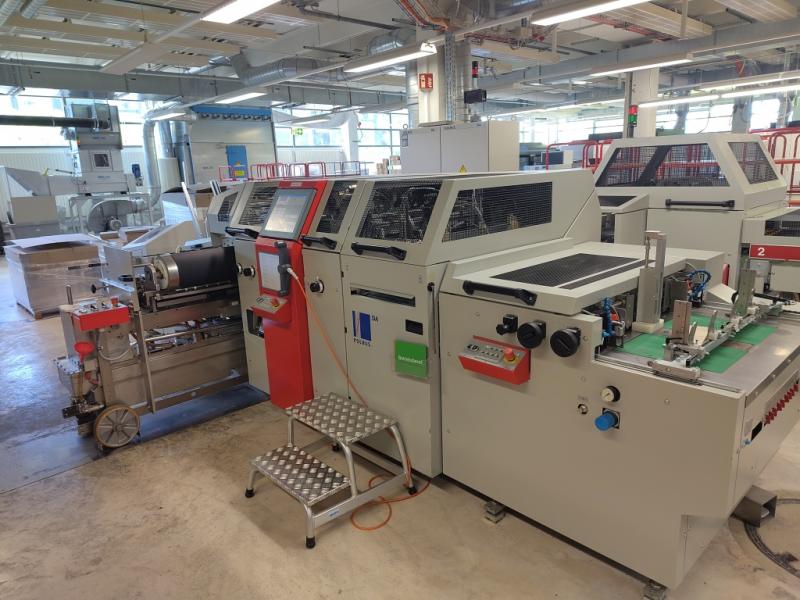

Kolbus DA 270 Bookjet Edition

Year: 2017

Equipped with:

- Copilot system with touchscreen

- Board magazine for manual loading

- Cloth feeder for non-stop operation with pile magazine, max. stacking height 160 mm

- Miss cloth control during the separation process

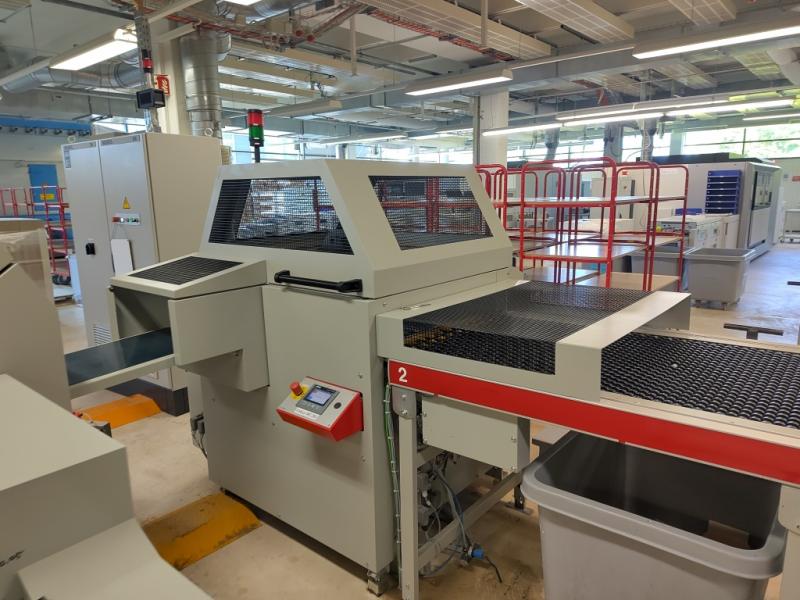

- Counter stacker delivery with following roller conveyor

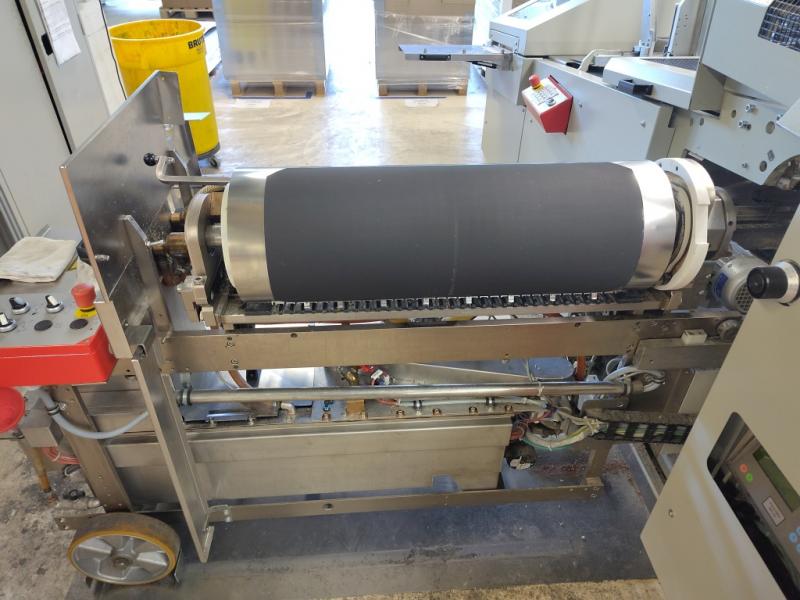

- Moveable gluing station for processing hot-glue with glue preparation unit in the premelter, heated glue application roller and scraper roller

- Cloth cylinder with grippers and exchangeable plates for rubber pad incl. 5 x 500 mm, 5 x 720 mm and 10 x rubber pad

- Viscosity control device for automatic water supply to ensure constant glue viscosity with pump and water tank for manual filling

- Device for inside lining with hot-glue

- Pressing roller device for crease-free connection of the cover material with boards and spine strip

- Device for producing padded cases

- Automatic case counter

- Programmable automatic settings, motorized adjustments, indication of production faults

- Single case request for control purposes done from the operating side

- Servo-controlled drive technology based on Siemens SIMOTION D

Special equipment:

- without centre strip roll device

- With board centre strip magazine, boards height min. 130 mm

- Board centre strip cutting device cross centre strip for processing digital print products of varying centre-strip, device for cutting rigid centre board strips to width, with possible width variatio from cycle to cycle

counter: only approx. 4,7 mio. book cases

Technical specifications:

- Mechanical speed: up to 65 cycles/min

- Open cover size max.: 670 x 390 mm

- Open cover size min.: 205 x 140 mm

- Joint width: 4 - 15 mm

- Spine width: 14 - 120 mm

- Turn in width closed: 8 - 15 mm

- Cloth width: 223 - 708 mm

- Cloth height: 130 - 428 mm

- Board thickness: 1 - 4 mm

- Board width: 95 - 328 mm

- Board height: 140 - 390 mm

- Board centre strip thickness: 1 - 4 mm

- Board centre strip width: 6 - 90 mm

Optional:

Kolbus Turning Device WE 260

year 2017

---

Localisé à: Europe Western

---

---

Disponible: Immediately

---

---

---

---

---
