JMD Superbinder 7000 M Binding system -Full line- (2023)

Relieur Machine

Etat: In production

dernière actualisation: 03-09-2026 | Viewed: 104 times - Enquiry's: 0

PD Ref: 144177

Age: 2023
Dim.maxi: 46 x 36 cm (18 x 14 inch)

Description:

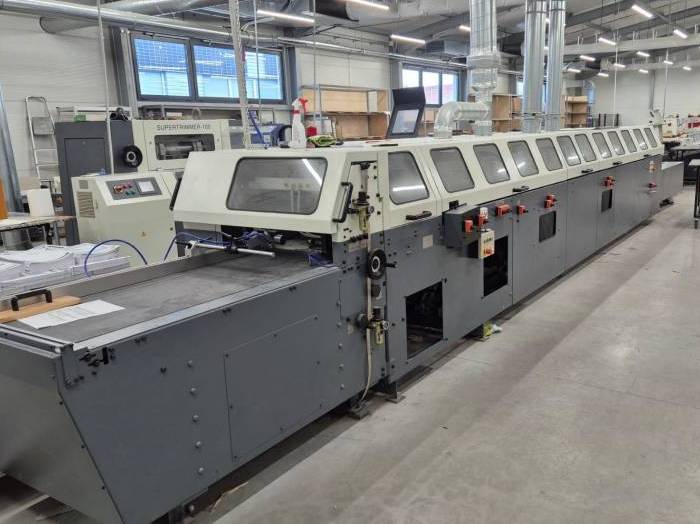

Superbinder - 7000 M Binding system (Full line)

Manufacturer: JMD

Year of production : 12/2023
Year of instalation : 06/2024

CONFIGURATION :

1. Gatherer G 460P

- 16 gathering stations, hand feed station, a reject gate
for faulty signatures

-NO of stations: 16

-Sheets size A: 140 x 460 mm

-Sheet size B: 120 x 280 mm

-In line Max speed: 10.000 cycles/h (1:2 Mode)

-Offline Max speed: 4800 cycles/h

-Power requires: 11.9 kW

-Machine Weight: 4000 kg

-Length of machine: 15 308 mm

16 stations in 4 units (each unit has 4 stations) and 1 vaum pump for
each unit. Automatic signature inspection OPTICAL camera system on each station to
detect miss-feeds, multi-feeds and paper jam.

Automatic Image recognition Ssytem GDS 0362- One camera for one
gathering station, totaly 16 cameras for 16 gathering stations.

GDS0362 is an automatic signature image recognition system used for
quality assurance on the gathering machine. It saves a section of the
correctly printed signature images as the reference image and uses the
image comparison technology to identify the wrong signatures.

GDS0362 automatic signature image srcognition system will prevent wrong
signatures from being processed further. It features high accuracy,
quick processing speed, and intelligent operation which makes it and
excelent product quality control system for tghe printing companies.

G460 P is upgraded model and is equiped with latest technology and brings
more stability, which enables you for long-term ideal and efficient
production

Outstanding features:

Relieable andnon-marking separating of section thanks to the vertical
gathering design.

Touch screen alowes easy operation and convenient fault analysis.

Comprehensive quality control for miss-sheet, double sheet, and paper jams

Easy changeover between 1:1 and 1:2 production modes brings high flexibility

Reject gate for wrong signatures ensures non-stop production.

Excelent quality control is enabled by the optional signature
recognition system.

Touch screen control station: Interactive operating menu provides simple
and quick control of the machine

2. Superbinder 7000 M :

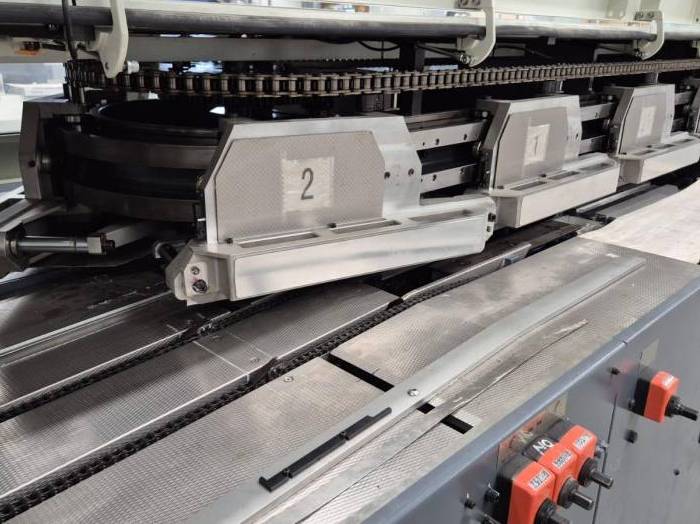

-21 book clamps,4 spine preparation stations, 2
moveable spine gluing station and a moveable side gluing station, a
stream cover feeding station, 2 nipping stations, a touch screen and
automatic lubrication system.

-No of clamps: 21

-Max speed: 7000 cycles/h

-Book block Length A: 140 x 460 mm

-Book block width B: 120 x 300 mm

-Book block tickness C: 3-50 mm

-Cover length D: 140 x 470

-Cover width E 250 x 640 mm

-Power required: 74 kW

-Weight: 6800 kg

-Dimensions (LxWxH)- 12 200 x 1 900 x 1 500 mm

Spine preparation station provide for spine roughening, milling,
notching and brushing

Gluing application System- double spine gluing station with one side
gluing station guarantee optimal gluing under high speed. Movable gluing
station allowe easy changeover between PUR and EVA in minutes, Nordson
20 kg Premeter

Streem cover feeding station: Allowes a large quantity of covers to be
loaded and fed stably

Cover scoring station: Dual axis scoring rollers of large diameter
anable straight and nice looking scoring lines

Two nipping stations: Powerfull nipping pressure to create strong,
durable binds with sharp spine corners.

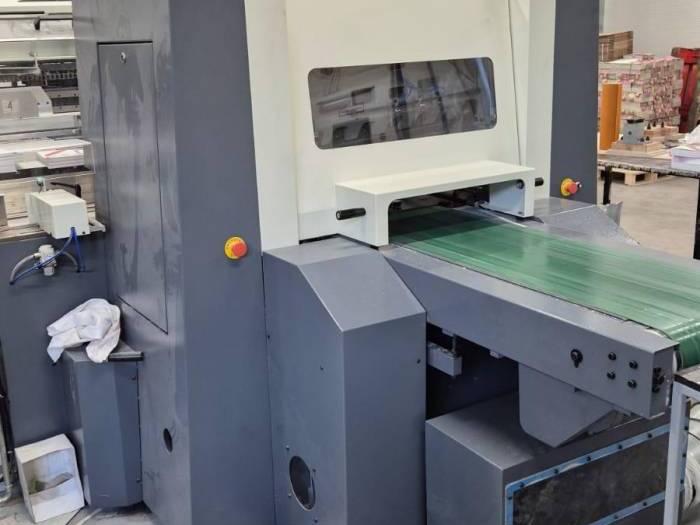

3. Super trimmer - 100 :

- Touch screen, Horizontal infeed carriage belt from
the right, vertical infeed unit, three knife trimmer, gripper delivery,
output conveyor, 1 air compressor

-Untrimmed Book Size ( a x b)

-Max. 445 x 310 (off-line)

-Min. 85 x 100 mm (Off-line)

-Max. 420 x 285 mm (In-line)

-Min. 150 x 100 (In-line)

-Trimmed Book size (a x b)

-Max. 440 x 300 mm(Off-line)

-Min. 80 x 95 mm (Off-line)

-Max. 415 x 280 (In-line)

-Trim Height

-Min 145 x 95 mm(In-line)

-Max. 100 mm

-Min. 10 mm

-Speed: 15-45 cycles/ min

-Power 6,45 kW

-Weight: 4100 kg

Precise cutting accuracy with a touch screen contro panel. Could be
used as stand alone trimmer or in line. No book no cut control to avoid
unnecessary movements
