Kolbus NM 101 Grooving Machine (2023)

Raineuse Machine

Etat: In production

dernière actualisation: 28-09-2026 | Viewed: 39 times - Enquiry's: 0

PD Ref: 144714

Dealer Ref.# 1111

Age: 2023
Dim.maxi: 77 x 0 cm (30 x 0 inch)

Important: as is

Description:

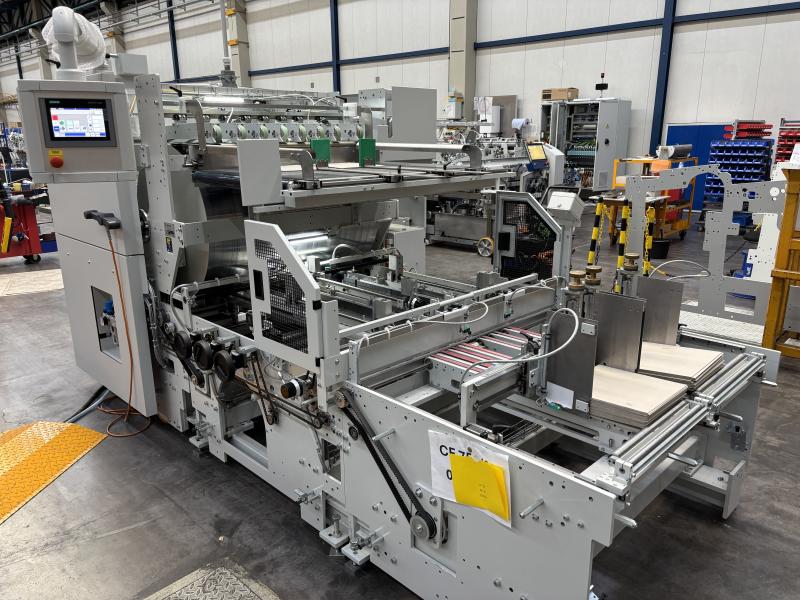

KOLBUS Grooving Machine NM 101

year 2023

For cutting grooves into cardboards.

Configuration:

- adjustable knife mountings with knife head from 90° to 110° 2 pcs.
- v-groove knife blades 16 pieces
- setting device for the knife mountings
- stack/stream cover delivery by means of a conveyor belt
- automatic chip removal from the machine
- servo-controlled drive technology based on Siemens technology
- infeed with cardboard feeder CF 750
- processing in the double magazine
- product outfeed with 1.500 mm roller conveyor
- digital display of the knife positions for one knife holder
- grinding device for sharpening the knives

Technical specifications:

number of grooves per operating step: 1 - 8 grooves in transport direction

cardboard thickness max.: 4 mm

cardboard thickness min.: 1 mm

distance between grooves single cut on 2 knife holders min.: 1 mm

distance between grooves on one knife holder min.: 40 mm

spacing from the first groove to the outer edge of the cardboard min.: 15 mm
