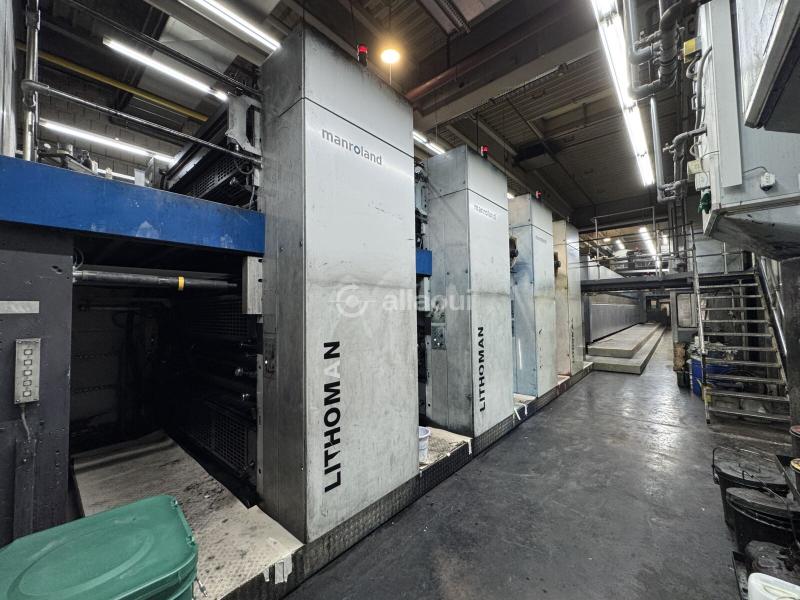

Manroland Lithoman IV 64 PP (2013)

Séchage à chaud Machine

Etat: In production

dernière actualisation: 06-10-2026 | Viewed: 33 times - Enquiry's: 0

PD Ref: 144894

Dealer Ref.# EA98821

Age: 2013
Dim.maxi: 62 x 0 cm (24 x 0 inch)

Description:

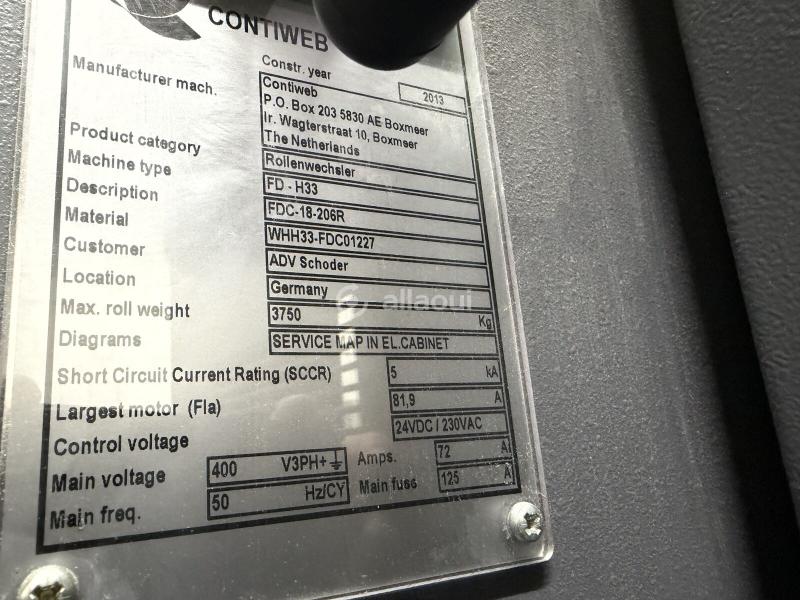

Cutoff: 620mm 24.41 , Width: 1905mm 75 , 64 pages, Contiweb Reel Splicer, 4 colors, Contiweb Dryer, Folder: Cross fold, Parallel fold, Delta fold, Tabloid Two second longitudinal folds , with collect production, Machine in excellent condition, Located in Germany, can be inspected in Production, Contiweb FD 18 automatic reel changer flying paster with automatic reel logistics / infeed, Prepared for paper reels up to 60″ diameter, Integrated draw unit, Core drive, 3 parking positions for splice-prepared reels, Fixed clamping cones, Ethernet interface, PECOM part-integration, Reel-door shielding for 18 m/s, Web-up device, Web data with house connection and reel ticket for transfer of reel data to the printnet Monitor server, manroland automatic web lead-in device, from the reel changer through to the cutting unit ahead of the offset bars, at a lead-in speed of approx. 50 m/min, Lead-in runs on the drive side SII , keeping the operator side SI clear, Magnetic lead-in tongue for fast web hanging with minimal adhesive-tape consumption, Support for the web-sever device and the spreader roller, positioned ahead of the first double printing unit, Web guide rollers in CFRP design concave, grooved , 4 double printing units 4/4 8 colours , vertical four-cylinder blanket-to-blanket design in box-type construction, Plate cylinders with clamping spindles for one full-width plate plate thickness 0.4 mm; undercut 0.33 mm for production without underlays , Circumferential register adjustment ±3 mm, side register ±2 mm, plate diagonal adjustment ±0.285 mm, all adjustable on the run, Reinforced film inking units, each with 4 form rollers two centre rollers oscillating , 3 oscillating steel distributor rollers with ceramic coating and temperature control, adjustable bridge roller for ink-flow control, film roller, ductor roller, large-capacity ink fountain with lamellar ink blade, Hydromix dampening units, integrated film/ink alcohol dampening units with selectable run-up curve, each with one ceramic-coated dampening distributor roller and a round dampening ductor with moisture-carrying cover, remote-controlled from the console, APL automatic plate-loading device, operable per double printing unit [top/bottom] or for all four units from the control desk, Anti-emulsification device per double printing unit, with doctor bars and complete blade set for production with part-width webs, AutoCycle for cyclical adjustment of side and circumferential registers, Roller in-/out lifting device manroland , Baldwin automatic ink-roller wash unit, complete for all double printing units spray bars, wash doctor with tray, microprocessor control , Baldwin Impact Fusion F blanket-wash unit for 4 double printing units CleanLiner supply cabinet, wash beam with pneumatic cloth feed, DryPac pre-fabricated wash cloths with water/detergent dosing, including second set of DryPac cloth rolls and rewinding stand , Image-register units: one ahead of printing unit 1 5 motorised image registers , and three units ahead of printing units 2–4 each with 5 image registers combined with 5 blow-air nozzles on the web underside , pneumatically swivelling, Photoelectric web-break safety detectors, Inline-Plattenbiegemaschine fully automatic inline plate-bending machine with external feed, Ink supply system manroland / technotrans systems GmbH for 4 double printing units with full PECOM integration: four ink-consumption measurements, ink pipelines along the press with ink-sequence change, two ink-level controls per double printing unit, automatic B-/C-fluid switchover, technotrans delta.d 450 W dampening solution unit with pre-filter intermediate-tank system FZT/P 200/4, including digidos.p 250 RC doser for two dampening additives, console connection, pH and conductivity display; chiller, intermediate-tank system with return pump per double printing unit, fixed switchable reserve pump, Baldwin spinclean.d auto automatic dampening-solution cleaning system centrifugal separator, bypass operation to the dampening-solution tank , manroland InlineRegister Control PU colour-register control, regulating up to 5/5 colours, with motorised camera positioning, integrated in the PECOM ConsoleSystem; cameras placed in a separate support ahead of the dryer infeed; single-web with 2 colour cameras for 2–8 colours; automatic mark search; individual-unit activation/deactivation; mark change during production, QuadTech Color Control System on ICON SpectralCam closed-loop solid-ink-density control with reporting CCS-IF-WR, Instrument Flight ; measures density, contrast, dot gain and trapping in process; main computer, free-standing scanner stand with motorised reading heads per web side, colour-strip pre-press package, Optiguard per reading head, Contiweb Ecoset 173 hot-air drying unit, single-web, approx. 17.3 m drying length, with integrated thermal exhaust-air cleaning and chill-roll zone, Integrated afterburner with solvent combustion; energy from solvent combustion reused in the heating process, Two temperature zones heat-up and drying ; patented Crossjet air nozzles; web-temperature control via infrared camera; reingas values per TA-Luft, EN 1539, NFPA 86 and VDI; door sensors; remote diagnosis via VPN, Chill-roll section: 9 small-diameter chill rolls cross- or single-grooved, concave ; the fourth roll is the only driven roll; re-moistening with silicone applicator ahead of the first and second chill rolls silicone and water quantities regulated separately onto the web ; Contiweb web-edge control system and web-break detector; web-tension and web-temperature measurement after the chill rolls, Single-web former superstructure consisting of an angle-bar section and a former section for a folder arranged parallel to the machine

Localisé à: Europe Western

Etat: In production

Disponible: Immediately

Prix: Sur demande
